Commercial dehumidifier TTK 350 S
Professional all-rounder for demanding drying operations
The robust and powerful efficient all-rounder
Black and white combined in a powerful device. The TTK 350 S makes you stop thinking in terms of black and white or good and cheap. It is simply both combined in one device, allowing you to benefit from prices at a Far East level without having to compromise in terms of workmanship and reliability. For the quality of this dehumidifier is no accident – but traditional EU manufacturing.

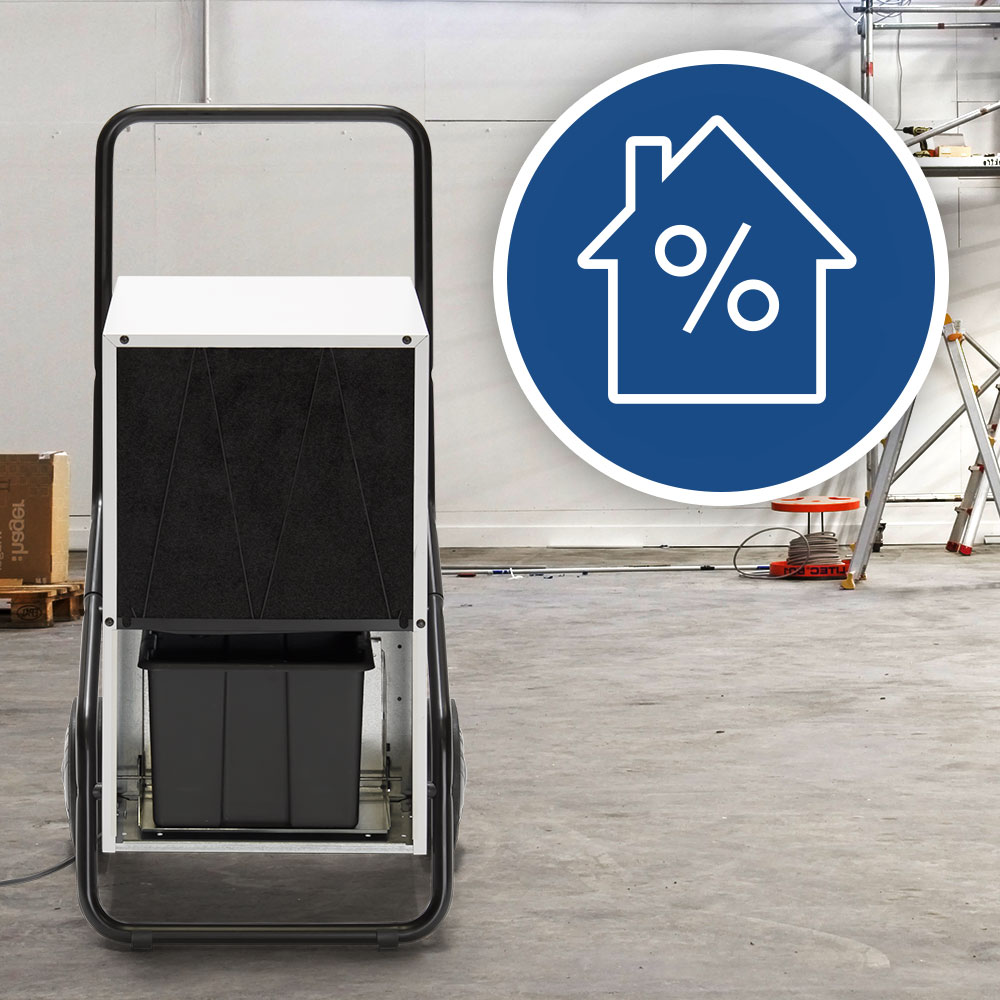

This high-performance construction dryer dehumidifies rooms with a size of up to 180 m² with a dehumidification performance of up to 70 litres in 24 hours. The desired humidity level can be preselected between 32 % and 100 % RH using the practical rotary switch, and the TTK 350 S then works in a fully automatic fashion thanks to its hygrostat operation. Furthermore it generates a strong air circulation of 1,000 cubic metres per hour.
Not only the plastic-coated metal housing but also the stable carriage construction with bar handle and large transport wheels for maximum mobility demonstrate the robust and durable design of this reliable dehumidifier.
Permanent mode for construction drying applications

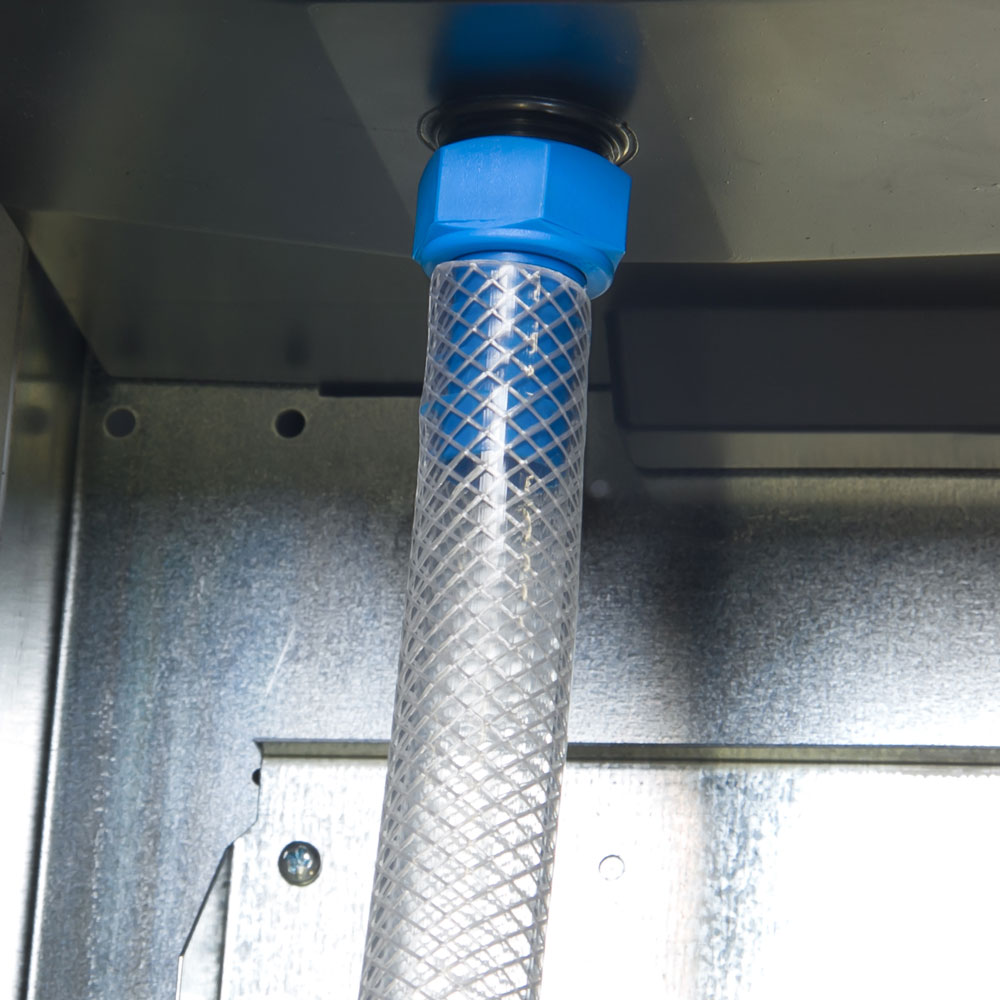

The possibility of connecting an external condensate drain – if required with an optional condensate pump – also makes the TTK 350 S ideally suitable for longer unattended dry keeping tasks, e.g. for construction drying.
Performance and safety are the top priorities here!

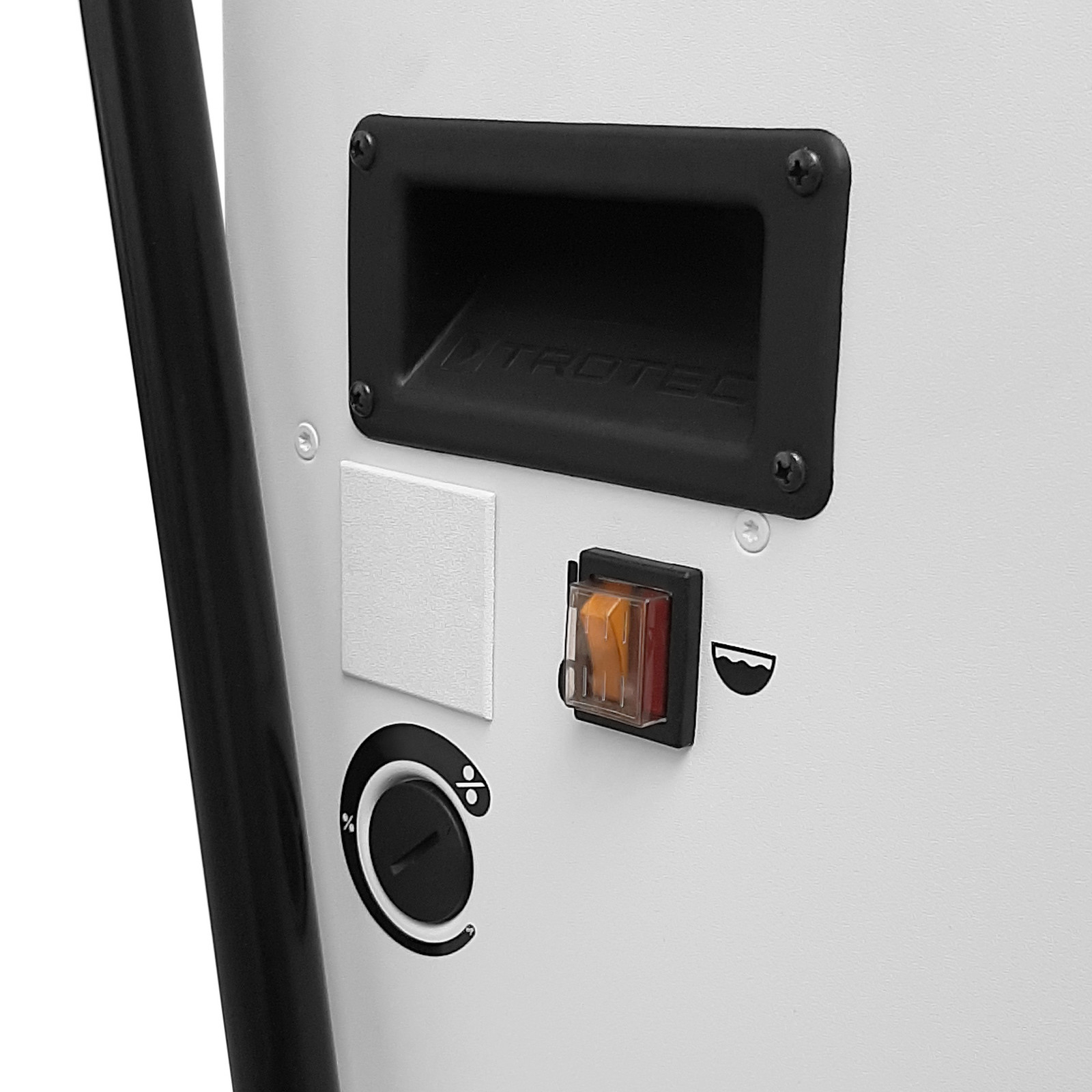

The operating switch and the filling level warning light are protected from dust and spray water by a protective cap, and a slotted hygrostat rotary switch protects against inadvertent misadjustment of the switch position. The condensation tank indicator light lights up when the condensation tank is full. In addition, the TTK 350 S switches off automatically when the water tank is full.
Inside, a professional hot gas automatic defrost system guarantees effective dehumidification result even at low temperatures, and thanks to the external condensate drain integrated as standard the TTK 350 S is also suited for longer unattended continuous drying applications and for construction drying.
The TTK 350 S is exclusively available only at Trotec and can be optionally delivered with an integrated operating hours counter or MID-compliant dual counter for operation hours and kilowatt hours.
What does MID-compliant mean?
In some areas, the Measuring Instruments Directive (MID) replaces the previous regulation of national authorization and subsequent calibration. As a result, all energy meters in Europe used for energy consumption-based billing have to be MID-compliant from now on.
Investment protection for your drying devices
Particularly during construction drying operations in summer or when drying water damages, it is very likely that climate conditions arise which may significantly shorten the lifetime of condenser dryers – regardless of the make. We as manufacturer care about the fact that for process-related reasons your condenser dryers often have to be replaced much too soon, hence we have prepared a valuable practical recommendation relating to the investment protection of your drying devices. Click here to find out more ...
Did you know that every construction dryer is at the same time a commercial dehumidifier, but that not every commercial dehumidifier is automatically a real construction dryer? Here you can find out the reasons for this, and why hot gas defrosting makes the decisive difference ...
TTK 350 S – special equipment features
A few practical benefits:
- Development, design, production: 100 % Trotec
- High dehumidification performance even at low temperatures
- Robust plastic-coated metal housing
- Stable carriage construction
- Portable and easily stored anywhere thanks to its rotary compressor
Proper energy billing for existing equipment without meters?
You're using this or another electrical appliance without MID-compliant energy consumption meter of which you have to report the current consumption to insurance companies? Then the BX50 MID is the perfect solution. Just install it between the device and a fixed socket – done!
Quicker construction drying by air circulation
The drying time can be reduced by half if construction dryers and fans are combined. In doing this, each dryer is supplemented with a fan, which significantly improves the drying performance and thus also the duration of the drying process.
The increased air circulation results in a quicker evaporation of the humidity, for the higher the flow rate at the material surface, the sooner will the drying process be completed.
The axial fans of the TTV series and TTV-S series are especially suitable to provide assistance with regard to the drying process.
External condensate pump for continuous operation
This optionally available condensate pump is compatible with all TTK-S models from Trotec and is ideally suited for longer, unattended dry keeping applications. With a pump height of up to 5 metres the condensate can be pumped from the collection container of the construction dryer into a larger container or outside. This makes it possible to let the construction dryer run in continuous operation without a full collection container interrupting the dehumidification process.
All commercial dehumidifiers of the TTK-S series by direct comparison:
To find the commercial dehumidifier which exactly meets your requirements, please consult the concise overview of commercial dehumidifiers of the TTK-S series from Trotec, which we're providing to you here so that you can compare them directly to each other.
Models which you do not wish to include in your comparison can be easily dismissed with only one click.
|At 30 °C / 80 % RH [l/24h]||55|
|Air flow rate|
|Level Max. [m³/h]||1,000|
|Recommended room size dry keeping|
|Min. temperature range [°C]||5|
|Max. temperature range [°C]||32|
|Min. humidity range [% RH]||50|
|Max. humidity range [% RH]||90|
|Mains connection||220 - 240 V/50 Hz|
|Nominal current consumption [A]||6|
|Power input [kW]||1.3|
|Recommended fusing [A]||10|
|Rotary piston compressor|
|Reciprocating piston compressor|
|Type of cooling agent||R-454C|
|Amount of refrigerant [g]||650|
|CO2 equivalent||0.0949 t|
|Pressure suction side [MPa]||0.5|
|Pressure outlet side [MPa]||1.8|
|Contents in [Litres]||6|
|Distance 1 m [dB(A)]||54|

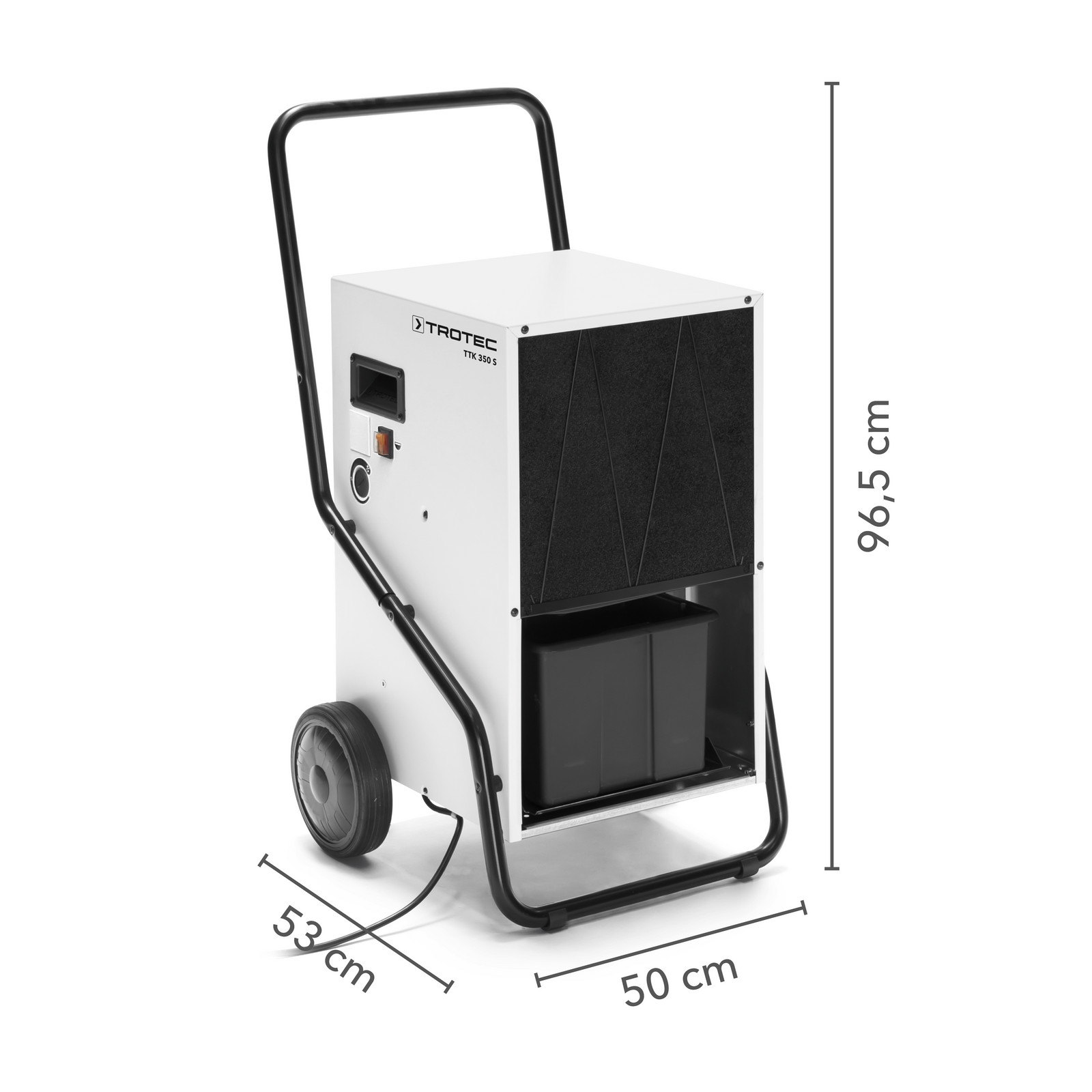

|Length (packaging excluded) [mm]||530|
|Width (packaging excluded) [mm]||500|
|Height (packaging excluded) [mm]||965|
|(packaging excluded) [kg]||39|
|Equipment, features and functions|
|Automatic defrost system|
|Condensate tank monitoring|
|Shut-off when full|
|Indicator container full|
|Room air filter|
|Operating hours counter|
|Operating hours counter|
|Non-marking full-rubber wheels|
|Adjustable bar handle|
|Rubber-tyred metal wheels|
|Swivel casters with parking brakes|
|Hose connection possible|
|Hose included in the scope of delivery|
|Recommended hose size [mm]||19|
|Metal plastic composite housing|
