T660 material moisture measuring device

Professional hand-held measuring device for the quick, non-destructive determination of moisture distributions in near-surface areas


The T660 is ideally suited for the quick, non-destructive determination of moisture distribution in near-surface areas to about 4 cm.

Based on the T660's integrated material pre-selection function for anhydrite and cementitious screed the measurement results (indicative) can on demand be shown directly in mass % or CM % on the colour display of the T660.

The integrated conversion of measured values is a practical tool, in particular for floor layers to quickly check the readiness for covering.

In addition to the preliminary check of the building materials' readiness for covering for CM measurements the T660 is also suited for non-destructive wood moisture measurements according to the dielectric measurement method (indicative).

Brilliant large-digit display

The T660 comes equipped with particular display glass ensuring high-contrast presentation even in bright sunlight as well as enabling the quick and reliable detection of the moisture distribution in wall or floor areas when combined with the large-digit, real-time measurement value display.

Integrated alarm function

Handy and time-saving: Prior to measuring you can define an individual limit value in the T660's settings. Should this alarm limit value be exceeded in the course of measuring, an acoustic warning signal is emitted automatically.

This way, large wall and floor areas can be measured quickly and effectively. During measuring, you can focus exclusively on the measuring object without the need to permanently keep an eye on the displayed measuring results.

Also ideally suited for combined building diagnostics measurements using the material moisture measuring device T610

Owing to the combined measurement of near-surface moisture with the T660 and of sub-surface moisture with the T610, complex correlations can be distinguished, narrowed down and classified, e.g. hygroscopic humidity occurrences resulting from salinization or leak detection. In the course of this the T660 captures the topmost two to four cm of the construction material and the T610 measures the volume moisture values to a depth of 30 cm.

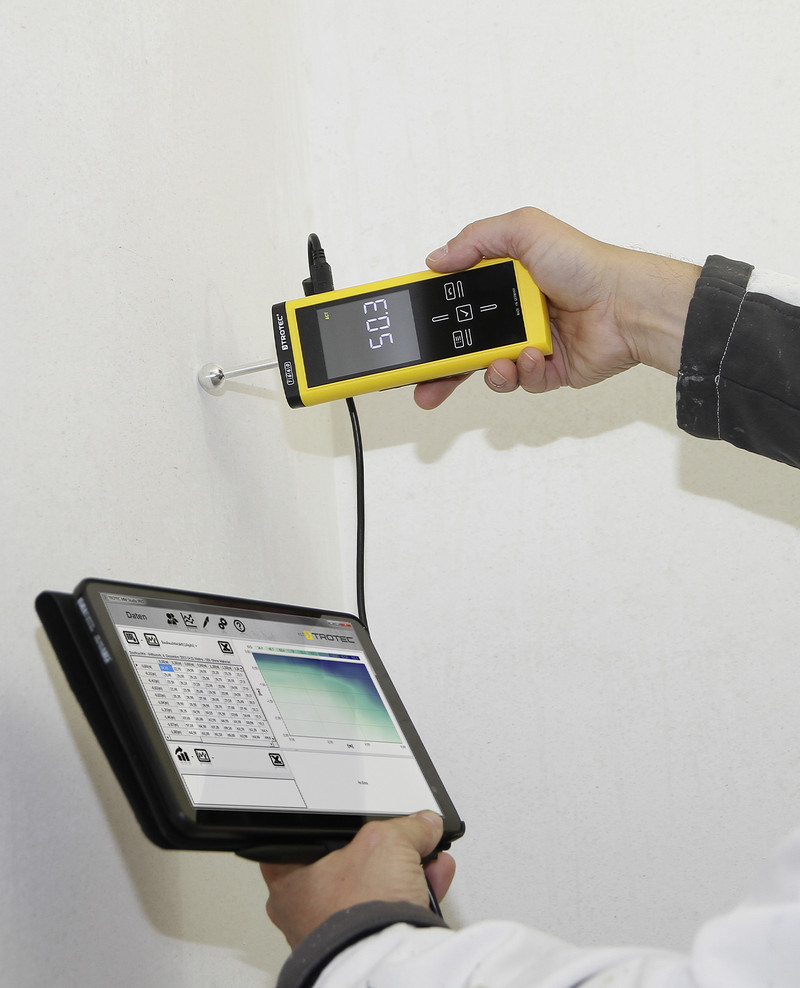

Significant results regarding a multi-dimensional moisture distribution can be obtained via grid measurement based on surface and sub-surface moisture measurement values. With an active USB connection to the measuring device the MultiMeasure Studio software included in the scope of delivery provides a convenient assistance function for the creation and visualization of grid measurements.

Finally one software for basically all measuring devices

As optionally available Professional version MultiMeasure Studio offers yet more possibilities and is not only perfectly suitable for fully compatible devices like the T660.

Owners of partially compatible or isolated measuring instruments can also benefit from this software, since it enables the analysis and administration of all measuring projects and customer data across multiple devices in a single application!

Using the unique report generating function you can create professional measurement reports in a trice:

Numerous boilerplate texts for building diagnostics, moisture measurement, leak detection and thermography are already included completely formulated (German version only).

Interested? Here you can access all information on the Professional version...

The T660 comes with a continuous surface made of highly scratch-resistant Blanview special glass and capacitive touchscreen control panel.
Touchscreen control panel
High-resolution colour display for simultaneous indication of two measured values
Brilliant large-digit display
Technical data in comparison

A direct comparison of all moisture meters:

In order to find exactly the right moisture meter for you, you have the possibility here to clearly compare all moisture meters from Trotec.

Models that you do not wish to include in the comparison can simply be clicked away.

Technical data in comparison

A few practical benefits:

  • Measuring device designed and produced according to the highest quality standards in Germany
  • German industrial design in robust, premium two-component construction with IP54 type of protection
  • Continuous easy-to-clean glass surface made of highly scratch-resistant Blanview special glass for a high-contrast display of measured values even in the sunlight
  • Capacitive touchscreen control panel
  • High-resolution colour display for simultaneous indication of two measured values
  • For the quick and non-destructive ­determination of near-surface moisture distributions to up to 4 cm
  • Moisture alarm function
  • Material pre-selection for anhydrite and cementitious screed
  • Direct display of measured values possible in mass % or CM %
  • Grid measurement function via USB with active software connection
  • Incl. MultiMeasure Studio measurement data management software (standard download version)


T660 Feuchtemessgerät show in Trotec online shop

Technical data

Technical data
General information
  Article number 3.510.207.650
Wood moisture [%]
  Min. measuring range | Wood moisture [%]
  Max. measuring range | Wood moisture [%]
  Resolution | Wood moisture [%]
  Accuracy | Wood moisture [%]
  Min. temperature compensation [%]
  Max. temperature compensation [%]
  Measuring principle
Material moisture [%]
  Min. measuring range | Material moisture [%]
  Max. measuring range | Material moisture [%]
  Accuracy | Material moisture [%]
  Resolution | Material moisture [%]
  Measuring principle Capacitive
  Min. measuring range [%] 0
  Max. measuring range [%] 7.6
  Accuracy [%] ± | Material moisture cementitious screed (combined) ±0.1 %
Material moisture [digits]
  Min. measuring range | Material moisture [Digit] 1
  Max. measuring range | Material moisture [Digit] 200
  Accuracy 0.1
  Resolution [Digit] 0.1
  Measuring principle Capacitive
  Max. penetration depth (non-destructive) [mm] 40
Device control
  Touch key display
  Push buttons
Housing design
Power supply
  Internal (battery) 4 x 1.5V, AA
Ambient conditions
  Operation - min. temperature [°C] 0
  Operation - max. temperature [°C] 50
  Operation – min. relative humidity [% r.F.]
  Operation - max. relative humidity [% RH] 95
  Length (packaging excluded) [mm] 209
  Width (packaging excluded) [mm] 63
  Height (packaging excluded) [mm] 35
  (packaging excluded) [kg] 0.285
Standard scope of delivery
Standard scope of delivery
  Measuring device
  Factory test certificate
  Operating manual
  Protective cap
  Electrode tips (1.5 x 20 mm)
  Electrode tips (2.2 x 8 mm)
  2 x union nuts
  Wood type directory
Ascertainable measured values and functions
Internal sensors
  Material moisture [digits]
  Material moisture [%]
  Wood moisture [%]
Functions and features
  Maximum value display
  Minimum value display
  Measured value hold function
  Acoustic alarm function
  Automatic functional test
  Automatic battery test
  Display illumination
  Automatic switch-off
  Non-destructive measurement method
  Selection sensor characteristic map (sens)
  Unit 2
  Selection of wood material characteristics (Mat)
  Temperature compensation
  Manual temperature setting
  Mode selection slide control
  Retaining clip

 standard equipment

 optionally available

 not available
