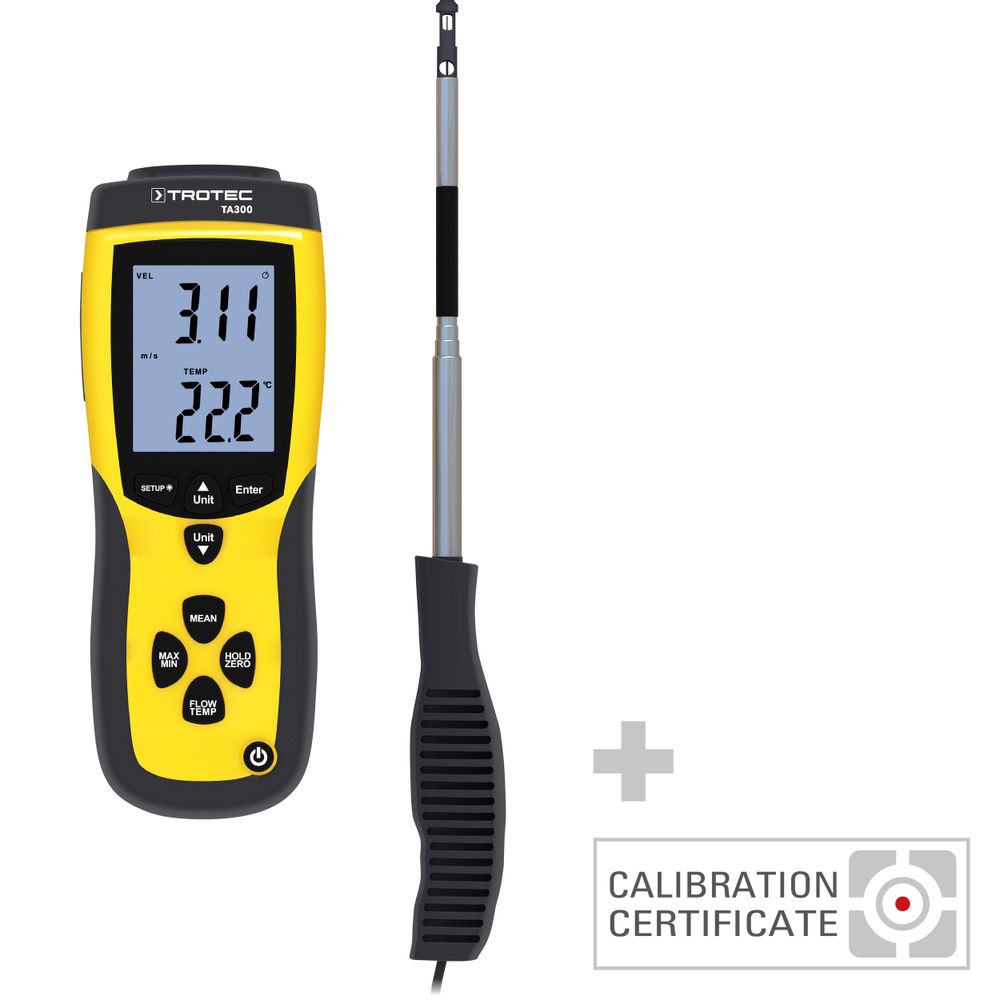

Anemometer TA300

Professional hot-wire anemometer for the precise determination of air velocity, air temperature and volumetric flow

Anemometer TA300
Anemometer TA300
Anemometer TA300

The practical telescopic probe makes this precision anemometer of the MultiMeasure Professional series a versatile measuring instrument for the determination of flow rate, temperature and volumetric flow.

For measurements in ducts or remote locations the probe can be steplessly extended to an effective length of one metre.

The combination of robust hot-wire sensor and sophisticated microprocessor technology for signal processing ensures quick and precise measuring results for every demand, which are also shown in poorly lit environments on the illuminated dual indication of the easily legible LCD display of the TA300.

A calibration certificate already included in the TA300's standard scope of delivery emphasizes the professional orientation of this precision anemometer.

Selective and temporal average measurements also pose no problem for the TA300. The volumetric flow profile can be conveniently specified via the menu navigation of the anemometer, which can be operated with just one hand.

The slim telescopic probe of the TA300 can variably be extended to an effective length of 1 m.

Convenient for flow rate measurements in remote or poorly accessible locations or inside air ducts and ventilation shafts.

The precision and functional variety of the TA300 opens up manifold fields of application for you:

  • Checking heating, ventilation or air-conditioning systems
  • Start-up
  • Maintenance tasks
  • Measuring air velocity and temperature at air passages and venting slots
  • Certification of critical environments
  • Channel measurements
  • Tightness tests at doors or windows




The slim telescopic probe of the TA300 can be variably extended to an effective length of 1 m, thus measuring applications can be carried out with more ease. Also convenient for flow rate measurements in remote or poorly accessible locations or inside air ducts and ventilation shafts.
For battery-saving power supply, the TA300 anemometer can be operated directly at the USB port of your computer using the connecting cable included in the scope of delivery. When connected via USB, the device can be used for software-supported measurement series recording of real-time flow rates.

All airflow measuring devices in direct comparison:

In order to find exactly the right measuring device for you, you have the possibility here to clearly compare all air flow measuring devices from Trotec.

Models that you do not want to include in the comparison can simply be clicked away.

Technical data in comparison

A few practical benefits:

  • Slim telescopic probe – steplessly extendable to a length of 1 m – enables measuring even in poorly accessible locations
  • Large, easily legible LCD with background illumination and dual indication of measured values
  • Selective and temporal averaging
  • Maximum or minimum value and hold function
  • Delivery incl. calibration certificate

Buy

Anemometer TA300 gerade Sonde inkl. Kalibrier-Zertifikat show in Trotec online shop

Anemometer TA300 gerade Sonde inkl. Kalibrier-Zertifikat

You save: 80.00 €

199.99 € 119.99 € incl. VAT Show net price (VAT not included)

buy

Technical data

Technical data
General information
  Article number 3.510.004.005
Air flow rate [m/s]
  Min. measuring range | Air flow rate [m/s] 0.1
  Max. measuring range | Air flow rate [m/s] 25
  Accuracy | Air flow rate [%] 5
  Accuracy ± | Air flow rate [m/s] 1
  Resolution | Air flow rate [m/s] 0.01
  Measuring principle | Air flow rate Hot-wire
Air flow rate [mph]
  Min. measuring range | Air flow rate [mph] 0.2
  Max. measuring range | Air flow rate [mph] 55.8
  Accuracy | Air flow rate [%] 5
  Accuracy ± | Air flow rate [mph] 1
  Resolution | Air flow rate [mph] 0.1
Air flow rate [km/h]
  Min. measuring range | Air flow rate [km/h] 0.3
  Max. measuring range | Air flow rate [km/h] 90
  Accuracy | Air flow rate [%] 5
  Accuracy ± | Air flow rate [km/h] 1
  Resolution | Air flow rate [km/h] 0.1
Air flow rate [kn]
  Min. measuring range | Air flow rate [kn] 0.2
  Max. measuring range | Air flow rate [kn] 48.5
  Accuracy | Air flow rate [%] 5
  Accuracy ± | Air flow rate [kn] 1
  Resolution | Air flow rate [kn] 0.1
Air flow rate [ft/min]
  Min. measuring range | Air flow rate [ft/min] 20
  Max. measuring range | Air flow rate [ft/min] 4,925
  Accuracy | Air flow rate [%] 5
  Accuracy ± | Air flow rate [ft/min] 1
  Resolution | Air flow rate [ft/min] 1
Air volume flow [m³/min]
  Min. measuring range | Air volume flow [m³/min] 0.001
  Max. measuring range | Air volume flow [m³/min] 99,999
  Resolution [m³/min] | Air volume flow 0.001 – 100
Air volume flow [ft³/min]
  Min. measuring range | Air volume flow [ft³/min] 0.001
  Max. measuring range | Air volume flow [ft³/min] 99,999
  Resolution [ft³/min] | Air volume flow 0.001 – 100
Air temperature [°C]
  Min. measuring range | Air temperature [°C] 0
  Max. measuring range | Air temperature [°C] 50
  Accuracy ± | Air temperature [°C] 1
  Resolution [°C] 0.1
Display
  LCD
Interfaces
  USB
Housing design
  Plastics
  Ø probe tip/base 10 mm/ 12 mm
Power supply
  Internal (battery)
  External (USB)
  Battery type 1 x 9V battery
Ambient conditions
  Operation - min. temperature [°C] 0
  Operation - max. temperature [°C] 50
Dimensions
  Length (packaging excluded) [mm] 210
  Width (packaging excluded) [mm] 75
  Height (packaging excluded) [mm] 50
Weight
  (packaging excluded) [kg] 0.28
Standard scope of delivery
Standard scope of delivery
  Measuring device
  Telescopic probe
  Hard-shell case
  Operating manual
  Transport bag
Ascertainable measured values and functions
Internal sensors
  Air flow rate [m/s]
  Air flow rate [km/h]
  Air flow rate [ft/min]
  Air flow rate [mph]
  Air flow rate [knots]
  Air temperature [°C]
  Air volume flow [m³/min]
  Air volume flow [ft³/min]
  Air volume flow [m³/min]
  Air volume flow [ft³/min]
  Air temperature [°F]
Functions and features
  Maximum value display
  Minimum value display
  m³/min (CMM)
  Measured value hold function
  Display illumination
  Telescopic probe (1 m)
  Automatic switch-off
  Multi-point averaging calculation
  Temporal averaging calculation
  Average value display
  Sensor-controlled display illumination
  Gooseneck probe (40 cm)

 standard equipment

 optionally available

 not available
