Particle counter PC220
10-in-1 environmental measuring device for air particle monitoring, gas detection and climate data logging
With the PC220 you have a versatile mobile environmental measuring device. It can be used to simultaneously detect not only the particle purity of the indoor air on six different size channels from 0.3 µm to 10 µm, but also gas concentrations of formaldehyde and carbon monoxide. It can further be deployed for determining climate data such as the air temperature, humidity, dew point temperature and wet-bulb temperature.
Moreover, due to the fact that the measuring device displays the particle masses directly as mass proportion in µg per m² of air, the PC220 is suitable for a quantitative determination of the concentration of airborne inhalable dust (PM10) and alveolar dust (PM2.5).
The standard equipment of this ISO-21501-4 compliant laser particle counter also includes an installed digital camera for documenting the measuring environment by means of photos and videos. The measurement data, date and time are also saved and indicated in both photos and videos to elucidate the measuring site.
The PC220 also comes with an integrated data logging function for non-stop measurements: up to 5,000 measurement records can be saved directly on the internal memory – which can be expanded additionally by up to 16 GB using a MicroSD card. After measuring, all detected data can be transmitted quickly and easily to a PC for the purpose of documentation or analysis via a USB interface.
Its numerous measuring functions make the PC220 an ideal solution for monitoring, securing and assessing the air quality in the application fields productivity, health and safety.
Particle counter PC220 – 10-in-1 environmental measuring device for measuring:
- Particle purity of the air with 6 particle sizes at the same time ranging from 0.3 to 10 µm
- a quantitative determination of the concentration of inhalable dust (PM10) and alveolar dust (PM2.5) in the room air in µg per m³ of air
- Formaldehyde concentrations in the air
- Carbon monoxide concentrations in the air
- Particle mass conversion and indication of HCHO and CO in mg per m³ of air
- Filter efficiency
- Relative humidity
- Air temperature
- Dew point temperature
- Wet-bulb temperature
Integrated HCHO detector
Ideal to analyse the risk posed by formaldehyde
Methanal – also known as formaldehyde – is the chemical precursor for many industrial products ranging from varnishes or paints to adhesives and binding agents, even preservatives. Many materials containing formaldehyde, e.g. wood-based materials, flooring or textiles, can contaminate the breathing air in closed rooms for a long time through outgassing.
Reclassified as carcinogenic
Owing to its particular toxicity the responsible organization in Germany adopted a new maximum allowable concentration (MAC) for formaldehyde; at the same time the substance was classified as carcinogenic in the European Chemicals Directive (CLP). This necessitates certain precautionary and protective measures. The reclassification is effective as of 01/01/2016 and entails new duties of documentation and information for employers such as the obligation to keep an exposure register.
PC220 for the precise detection of formaldehyde
The particle counter PC220 comes with an integrated HCHO detector which reliably detects formaldehyde concentrations of as low as 0.01 ppm in the room air.
Combined with the additional CO detector, the quantitative particle mass display conforming to PM standard and many further measuring functions for particle purity and room climate data, the PC220 is the ideal solution for detecting and documenting formaldehyde concentrations in the room air.
Quantitative detection of particulate emissions
PC220: digital display of particle masses
Quantitative statements regarding the particulate emission ratio for the assessment of potential health risks at the workplace are not only required according to applicable legal protective regulations.
To be measured are not only inhalable dust fractions, i.e. all dust particles with an aerodynamic diameter of less than 10 µm, but especially ultrafine alveolar particles, which are so minute that they can reach the pulmonary alveoli.
With the PC220 these dust fractions can be registered as PM10 and PM2.5 according to the PM standard; their percentage per cubic metre room air is indicated numerically on the colour display of the PC220.
The process is based on the customary international PM classification in categories as per United States Environmental Protection Agency: air particles are differentiated by their aerodynamic diameter of less than 10 micrometres (PM10) and 2.5 micrometres (PM2.5).
Laser particle counter with integrated environmental measuring device and built-in photo and video function – the PC220 is the perfect solution for monitoring, assuring quality and analysing air quality for productivity, health and safety:
Indoor air quality measurements
The inhabitants of developed countries spend an average of 90 % of their time indoors. Thus, the quality of the room air is of particular importance for health and productivity.
With the PC220, problematic concentrations and sources of hazardous particles can be reliably detected and the compliance with statutory regulations can be documented.
Technical facility management
Heating, ventilation and air-conditioning technicians regard the PC220 as an ideal measuring instrument for all maintenance and control operations at various ventilation systems. Faulty installations can quickly lead to noticeable air quality problems in connecting rooms. The PC220 allows sources of hazardous contamination to be located, filter efficiency to be determined and particle concentrations in the indoor air to be evaluated.
Restoration companies can also use the PC220 to quickly and reliably detect partition leaks in areas of restoration.
Filter leak check
Suspended matter filters used in industrial processes must be regularly checked for correct functionality and tightness. These checks are particularly important during acceptance tests or when filters have been replaced in order to prevent possible leaks.
The high sensitivity and counting accuracy of the PC220, as well as its ISO 21501-4 conformity make it a perfect choice for testing efficiency and secure seals of industrial suspended matter filters.

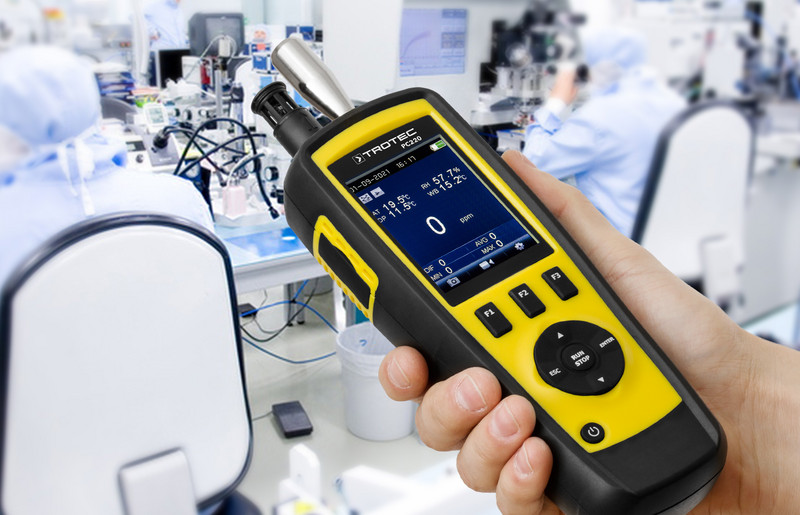

Technical cleanliness in process engineering
In sensitive production environments, contaminations attributable to micro- and nanoparticles such as aerosols, dust, soot or bacteria can gather on products in such a consistent manner that both appearance and functionality will be impaired.
Here, the PC220 is an ideal tool for preventing contamination as it eliminates quality losses due to particle impurities.
All room thermostats in direct comparison:
To find the room thermostat which exactly meets your requirements, please consult the concise overview of all room thermostats from Trotec, which we're providing to you here so that you can compare them directly to each other.
Models which you do not wish to include in your comparison can be easily dismissed with only one click.
A few practical benefits:
- Particle counter with durable laser diode
- Conforms with ISO 21501--4
- 6 particle size channels from 0.3 to 10 μm
- Filter efficiency measurement
- Detects size fractions and concentrations of air particles
- Integrated gas detector for formaldehyde and carbon monoxide concentrations
- Direct conversion and display of the concentrations of inhalable and alveolar dust fractions contained in the room air stated in µg per m³ of air
- Also measures environmental climate parameters such as air temperature, humidity, dew point and wet-bulb temperature
- Data logger for 5,000 measurements on the internal memory (can be expanded with a MicroSD card)
- Integrated digital camera for photo and video documentation of the measured environment
- Additional colour indicator display with automatic acoustic alarm for the quick detection of critical particle concentrations

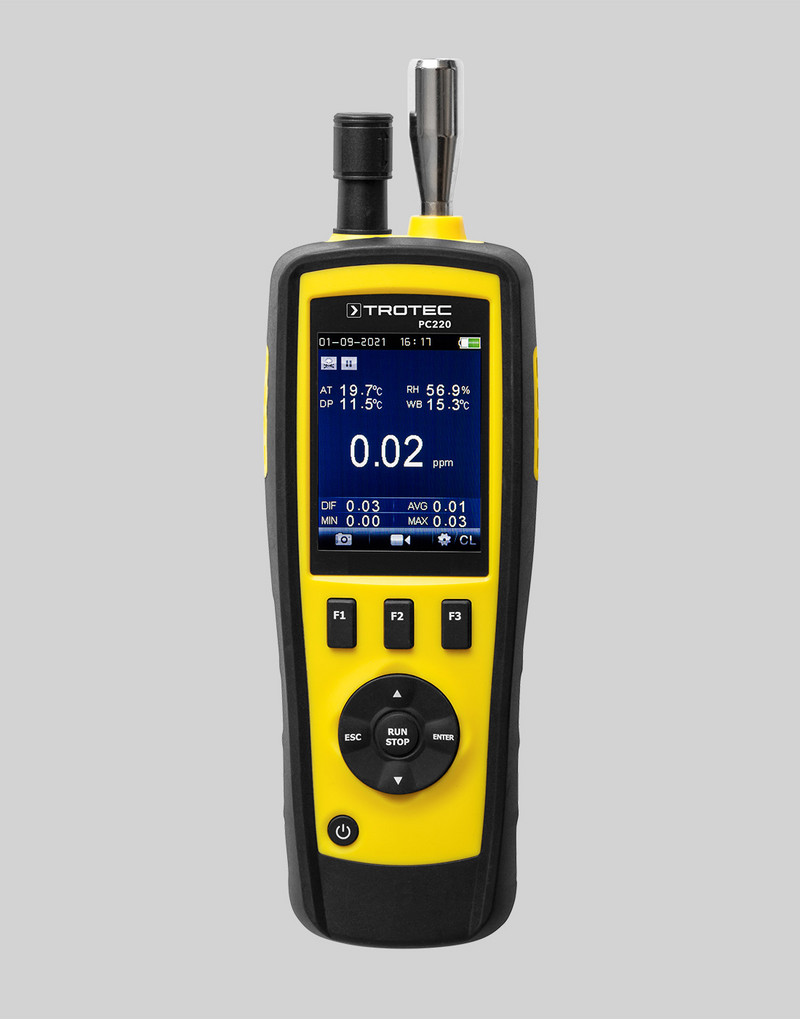

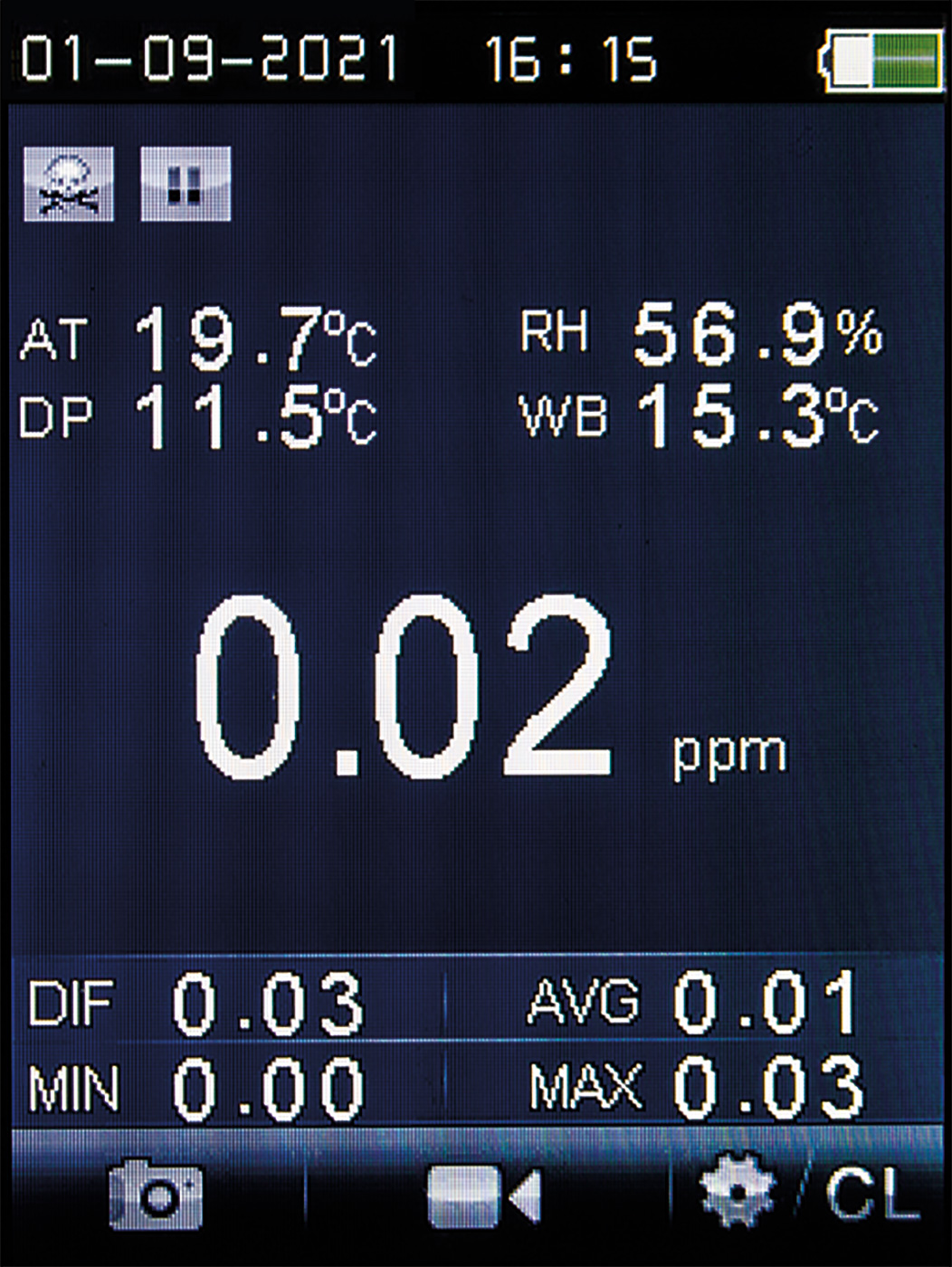

- 2.8-inch colour LCD display with background illumination to simultaneously display all measured parameters
- Ergonomic single-handed operation

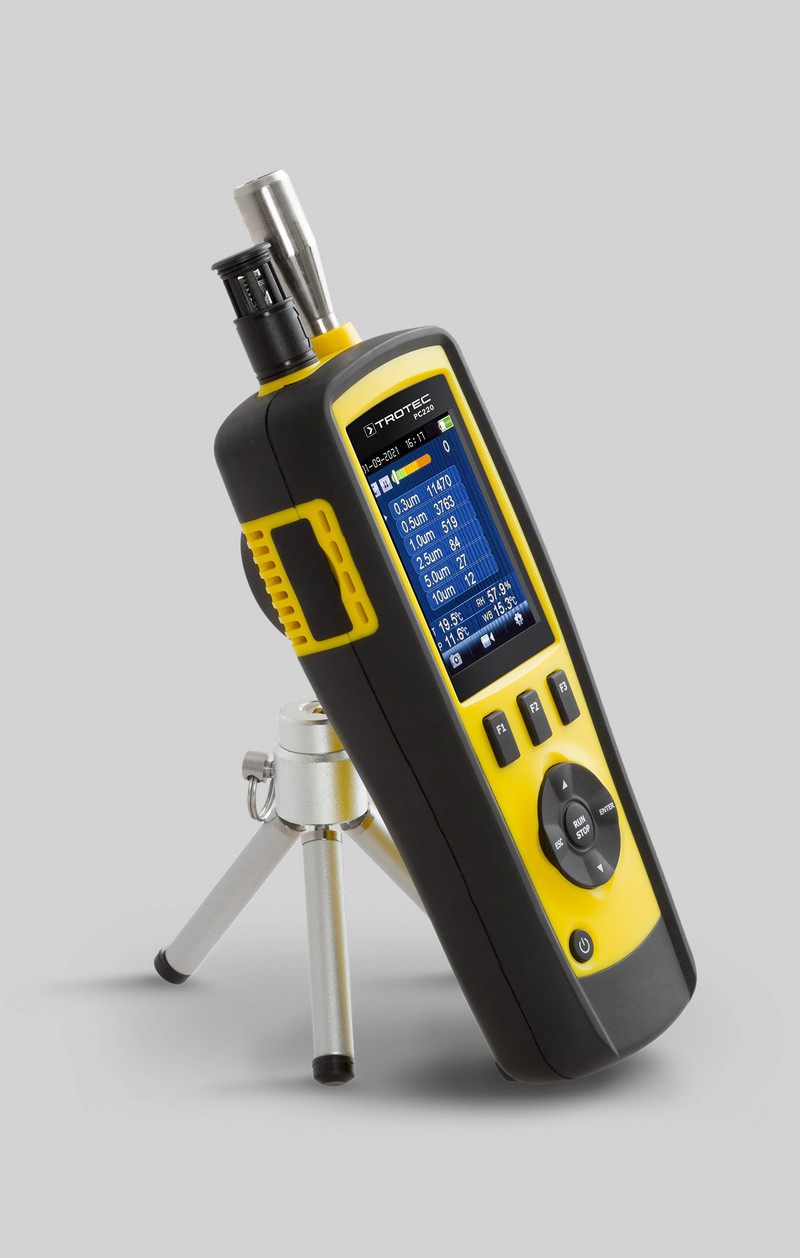

- Tripod thread for non-stop measuring on a tripod
- PC measurement data export via USB interface
- Incl. calibration certificate (optional)
Buy
PC220 Particle Counter
Laser particle counter with integrated environmental measuring device and built-in photo and video function – the PC220 is the perfect solution for monitoring, assuring quality and analysing air quality for productivity, health and safety.
1,139.34 £ incl. VAT Show net price (VAT not included)
PC220 Particle Counter incl. cal. certificate
Laser particle counter with integrated environmental measuring device and built-in photo and video function – the PC220 is the perfect solution for monitoring, assuring quality and analysing air quality for productivity, health and safety.
1,311.08 £ incl. VAT Show net price (VAT not included)
Technical data
| Technical data | ||
|---|---|---|
| General information | ||
| Article number | 3.510.006.015 | |
| Particle concentration | ||
| Number of channels | 6 | |
| Channel sizes | 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 5.0 µm, 10.0 µm | |
| Counting modes | Concentration, cumulative, differential | |
| Counting efficiency | 50 % at 0.3 µm, 100 % for particles > 0.45 µm | |
| Flow rate | 2.83 l/min (0.1 ft³/min), controlled by internal pump | |
| Zero count | < 1 particle / 5 min | |
| Coincidence loss | 5 %, 2 million particles per ft³ (28.3 litres) | |
| Detector type | Light-scattering measurement | |
| Sample inlet | Isokinetic probe | |
| Particle mass conversion | ||
| Particle mass conversion | 2.5 µm, 10 µm | |
| Min. measuring range | Particle mass conversion [µg/m³] | 0 | |
| Max. measuring range | Particle mass conversion [µg/m³] | 2,000 | |
| Resolution | Particle mass conversion [µg/m³] | 1 | |
| HCHO (formaldehyde) | ||
| Min. measuring range | Formaldehyde [ppm] | 0.01 | |
| Max. measuring range | Formaldehyde [ppm] | 5 | |
| Accuracy ± | Formaldehyde [%] | 5 | |
| Resolution | Formaldehyde [ppm] | 1 | |
| Carbon monoxide | ||
| Min. measuring range | Carbon monoxide [ppm] | 10 | |
| Max. measuring range | Carbon dioxide [ppm] | 1,000 | |
| Accuracy ± | Carbon monoxide [%] | 5 | |
| Resolution [ppm] | Carbon monoxide | 1 | |
| Air temperature | ||
| Min. measuring range | Air temperature [°C] | 0 | |
| Max. measuring range | Air temperature [°C] | 50 | |
| Min. measuring range | Air temperature [°F] | 32 | |
| Max. measuring range | Air temperature [°F] | 122 | |
| Accuracy ± 10 °C - 40 °C [°C] | 0.5 | |
| Temperature below 10 °C - Temperature above 40 °C [°C] | 1 | |
| Accuracy ± 50 °F - 104 °F [°F] | 0.9 | |
| Temperature below 50 °F - Temperature above 104 °F [°F] | 1.8 | |
| Relative humidity | ||
| Min. measuring range | Relative humidity [%] | 0 | |
| Max. measuring range | Relative humidity [%] | 100 | |
| Accuracy 40 % - 60 % [%] | 3 | |
| Accuracy 20 % - 40 % [%] | 3.5 | |
| Accuracy 60 % - 80 % [%] | 3.5 | |
| Accuracy 0 % - 20 % [%] | 5 | |
| Accuracy 80 % - 100 % [%] | 5 | |
| Dew point temperature | ||
| Min. measuring range | Dew point temperature [°C] | 0 | |
| Max. measuring range | Dew point temperature [°C] | 50 | |
| Min. measuring range | Dew point temperature [°F] | 32 | |
| Max. measuring range | Dew point temperature [°F] | 122 | |
| Accuracy ± 10 °C - 40 °C [°C] | 0.5 | |
| Accuracy ± 10 °C - 40 °C [°C] | 1 | |
| Accuracy ± 50 °F - 104 °F [°F] | 0.9 | |
| Accuracy ± 50 °F - 104 °F [°F] | 1.8 | |
| Wet-bulb temperature | ||
| Min. measuring range | Wet-bulb temperature [°C] | 0 | |
| Max. measuring range | Wet-bulb temperature [°C] | 80 | |
| Min. measuring range | Wet-bulb temperature [°F] | 32 | |
| Max. measuring range | Wet-bulb temperature [°F] | 176 | |
| Accuracy ± | Wet-bulb temperature [°C] | 1 | |
| Accuracy ± | Wet-bulb temperature [°F] | 1.8 | |
| Display | ||
| LCD | ||
| Colour | ||
| Monochrome | ||
| Touch | ||
| Memory organisation | ||
| Internal flash memory | Up to 5,000 data records | |
| Extended data memory (microSD, optional) - (max. 16 GB) | ||
| Photo storage format | JPEG (640 x 480) | |
| Video storage format | 3GP (320 x 240) | |
| Interfaces | ||
| USB | ||
| 3.5 headphone jack | ||
| Power supply | ||
| Internal (battery) | ||
| External (power adapter) | ||
| External (USB) | ||
| Battery type | Polymer LI-ION battery | |
| Operating time | ||
| Approx. 4 hours of continuous operation | ||
| > 30 h | ||
| Charging time | ||
| Approx. 2 hours with connected AC adapter | ||
| Housing design | ||
| Plastics | ||
| Metal | ||
| Ambient conditions | ||
| Operation - min. temperature [°C] | 0 | |
| Operation - max. temperature [°C] | 50 | |
| Operation – max. relative humidity (non-condensing) [%] | 80 | |
| Storage - min. temperature [°C] | -10 | |
| Storage - max. temperature [°C] | 60 | |
| Weight | ||
| (packaging excluded) [kg] | 0.435 | |
| Standard scope of delivery | ||
|---|---|---|
| Standard scope of delivery | ||
| Measuring device | ||
| Battery(-ies) | ||
| Charger | ||
| Zero filter with connection hose | ||
| Mini tripod | ||
| Transport case | ||
| USB cable | ||
| Software | ||
| Operating manual | ||
| Ascertainable measured values and functions | ||
|---|---|---|
| Internal sensors | ||
| Particle concentration [n/l] | ||
| Particle concentration [n/m³] | ||
| HCHO [ppm] | ||
| Carbon monoxide [ppm] | ||
| Relative humidity [%] | ||
| Air temperature [°C] | ||
| Dew point temperature [°C] | ||
| Wet-bulb temperature [°C] | ||
| Air temperature [°F] | ||
| Dew point temperature [°F] | ||
| Wet-bulb temperature [°F] | ||
| Combustible gases [indicative via acoustic signal depending on the concentration] | ||
| Light [lx] | ||
| Light [fc] | ||
| Microwave radiation [mW/cm²] | ||
| Sound [dB A] | ||
| Sound [dB C] | ||
| Functions and features | ||
| Backlit display | ||
| ¼ inch tripod thread | ||
| Maximum value display | ||
| Minimum value display | ||
| Measured value hold function | ||
| Reversible time weighting | ||
| Acoustic alarm function | ||
| Automatic switch-off | ||
| Average value display | ||
| Language selection | ||
| Switching function °C/°F | ||
| Photo recording | ||
| Video recording | ||
| Automatic display switch-off - (90 seconds, 2 minutes or 4 minutes) | ||
| Visual alarm function | ||
| Calibration function | ||
| 4-digit measuring value display | ||
| A/C frequency weighting | ||
| Limit value alarm | ||
| Light detector | ||
| Microphone | ||
| Gooseneck probe | ||
