BZ25 CO2 Air Quality Monitor

Reliable measurement of the indoor air quality

We spend more than 90 % of our life indoors. Besides, with building structures growing closer and closer together, exhausting pollutants are increasingly impeded with noticeable consequences for the air quality.

Increased concentrations of carbon dioxide – even when they are still within the permissible limit values – can not only lead to fatigue, lapse of concentration or performance loss, but further cause serious health problems especially for children or enfeebled persons.

Using the BZ25, the indoor air quality can reliably be monitored – the ideal air quality monitor for use in work, living or children's rooms, class rooms, kindergartens or office and production environments.

Thanks to the accurate and permanently stable NDIR measurement method, the BZ25 in addition to air temperature and relative humidity also captures the current concentration of carbon dioxide in the room air and indicates these in steps of 1 ppm on the easily legible display.

Additionally, an individual CO2 alarm limit value can be defined, which when exceeded is indicated by means of an acoustic warning signal.

A practical additional function of the BZ25 is the CO2 indicator with simple icon presentation of a good, normal or unfortunate concentration of carbon dioxide in the room air on the large LCD display, which further shows time and date.

A few practical benefits:

  • Accurate and permanently stable NDIR measurement of carbon dioxide concentrations in the room air
  • Simultaneous display of CO2 values, room temperature, humidity, date and time
  • Minimum and maximum value function for CO2, air temperature and humidity
  • Carbon dioxide alarm function with acoustic alarm signal for freely definable limit values
  • Additional symbolic CO2 indicator display
  • Large backlit display with easily legible measured value indication
  • Free standing or wall mounted
  • Optimum price-performance-ratio


CO2-Luftqualitätsmonitor BZ25 im Trotec Webshop zeigen

CO2-Luftqualitätsmonitor BZ25

Unmotiviertes Herumkritzeln auf dem Notizblock statt effizienter Arbeit – kennen Sie das? Diese Motivationslöcher finden ihre Ursache häufig in schlechter Luftqualität. Zu viel CO2 verursacht u.a. Müdigkeit.

Sie sparen: 5.00 €

164.95 € 159.95 € inkl. MwSt. Nettopreis exkl. MwSt. anzeigen

jetzt kaufen

Technical data

Technical data
General information
  Article number 3.510.205.014
Air temperature [°C]
  Min. measuring range [°C] -5
  Max. measuring range [°C] 50
  Resolution [°C] 0.1
  Accuracy ± [°C] 1
Air temperature [°F]
  Min. measuring range [°F] 23
  Max. measuring range [°F] 122
  Resolution [°F] 0.1
  Accuracy ± [°F] 1.8
Relative humidity (%)
  Min. measuring range [%] 0.1
  Max. measuring range [%] 99.9
  Resolution [%] 0.1
  Accuracy ± [% r.F.] 5
Carbon dioxide (ppm)
  Carbon dioxide sensor NDIR sensor (non-dispersive infrared)
  Min. measuring range [ppm] 0
  Max. measuring range [ppm] 9,999
  Accuracy [ppm] 75
  Accuracy [%] 5
  Resolution [ppm] 1
Device control

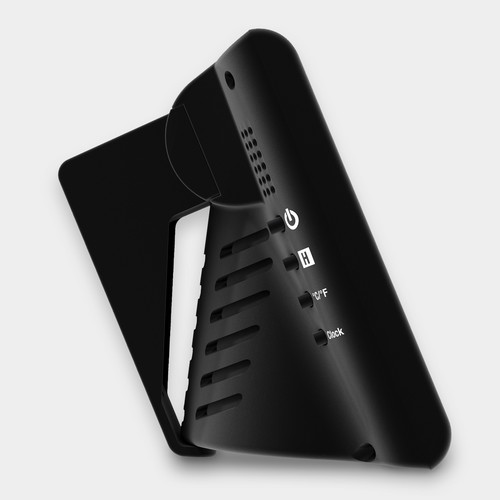

  Push buttons
Housing design
Power supply

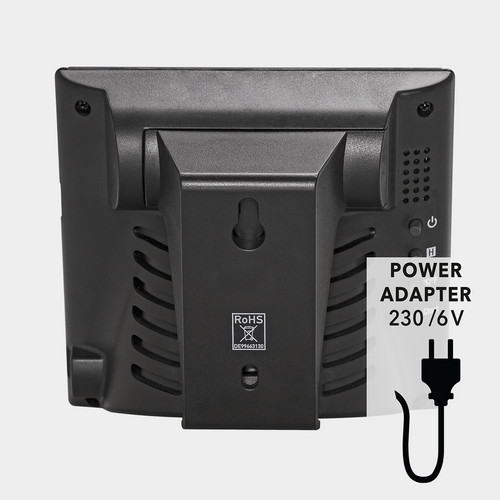

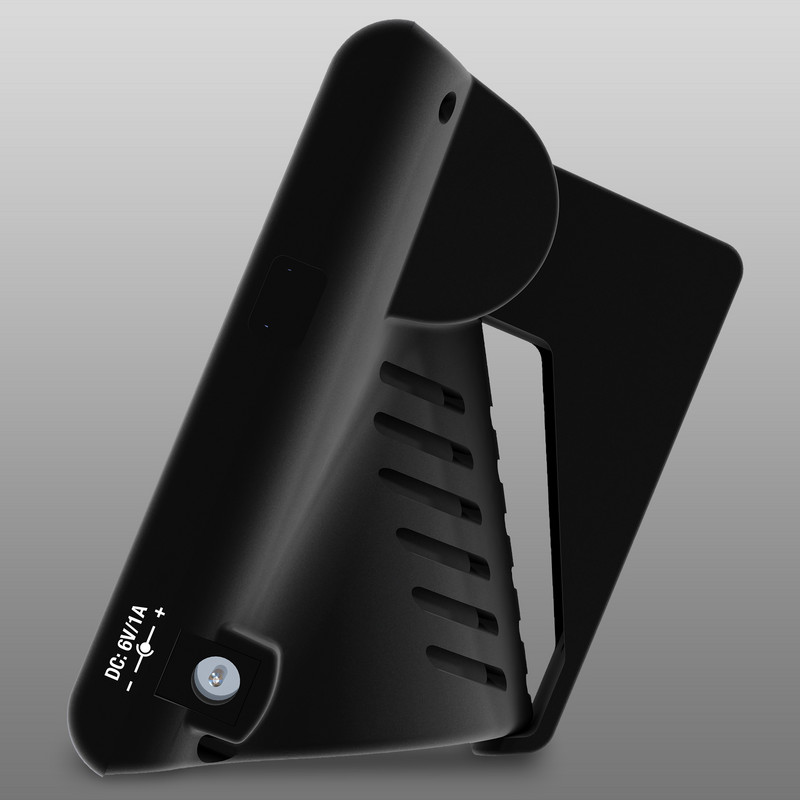

  External (power adapter)
Ambient conditions
  Operation - min. temperature [°C] -5
  Operation - max. temperature [°C] 50
  Operation approx. - max. relative humidity (non-condensing) [%] 90
  Storage - min. temperature [°C] -5
  Storage - max. temperature [°C] 50
  Storage - max. relative humidity (non-condensing) [%] 90
  Length (packaging excluded) [mm] 90
  Width (packaging excluded) [mm] 110
  Height (packaging excluded) [mm] 98
  (packaging excluded) [kg] 0.19
Standard scope of delivery
Standard scope of delivery
  Measuring device
  Power adapter
  Operating manual
  Storage case
  Factory test certificate
Ascertainable measured values and functions
Internal sensors
  Relative humidity [%]
  Carbon dioxide [ppm]
  Air temperature [°C]
  Air temperature [°F]
Functions and features
  Minimum value display
  Maximum value display
  Measured value hold function
  Switching function °C/°F
  Backlit display
  CO2acoustic alarm function
  Feel-good indication

 standard equipment

 optionally available

 not available
