BE50 Digital multimeter

Fully equipped multifunction measuring meter

Digital multifunction measuring meter with eleven measuring functions

The BE50 is a digital multimeter, like one can only wish for, since it offers you spectacular possibilities of use for more than just electrical variables:

With altogether eleven measuring functions, automatic range selection, temperature measurement with type K contact sensor, hold function and display illumination this measuring device is suited for manifold fields of application in the industrial or semi-professional sector.

The fully equipped, practice-oriented BE50 with IP67 type of protection impresses with excellent quality finish and robustness:

Measuring device and measuring lines are doubly insulated and conform to protection class II. Moreover, this digital multimeter is extremely impact-, dust- and water-proof – and thus optimally suited for tough everyday usage!

Scope of delivery:

  • Digital multimeter BE50
  • Safety cables with test probes (2x)
  • Protective cap for test probes (2x)
  • Temperature sensor (K-type) with adapter (1x)
  • Operating manual

Technical specifications

Play it safe when you measure electric currents and voltages. The digital multimeter BE50 combines maximum safety and functionality to offer you an excellent value-for-money ratio.

LC display: with optional background illumination
LCD display: 4-digit (max. indication 3999)

Dimensions: 182 x 82 x 55 mm
Weight: 320 g

DC voltage (V/DC)
Measuring range: 400 mV to 1,000 V
Accuracy 400 mV: ±(1.0 % +2 digits)
Accuracy 4 V/40 V/400 V: ±(1.2 % +2 digits)
Accuracy 1,000 V: ±(1.5 % +5 digits)

AC voltage (V/AC, 50 / 60 Hz)
Measuring range: 400 mV to 1,000 V
Accuracy 400 mV: ±(1.0 % +2 digits)
Accuracy 4 V/40 V/400 V: ±(2.0 % +5 digits)
Accuracy 1,000 V: ±(2.0 % +8 digits)

Direct current (A/DC)
Measuring range: 400 μA to 10 A
Accuracy 400 μA: ±(1.0 % +3 digits)
Accuracy 4 mA/40 mA/ 400 A: ±(1.5 % +3 digits)
Accuracy 10 A: ±(2.5 % +5 digits)

Alternating current (A/AC)
Measuring range: 400 μA to 10 A
Accuracy 400 μA: ±(2.0 % +5 digits)
Accuracy 4 mA/40 mA/400 A: ±(2.5 % +5 digits)
Accuracy 10 A: ±(3.0 % +7 digits)

Duty cycle
Measuring range: 0.1 to 99.9 %
Accuracy: ±(1.2 % +2 digits)

Capacity
Measuring range: 40 nF to 100 μF
Accuracy 40 nF: ±(5.0 % +7 digits)
Accuracy 40 nF: ±(3.0 % +5 digits)
Accuracy 4 μF/40 μF: ±(3.0 % +5 digits)
Accuracy 100 μF: ±(5.0 % +5 digits)

Resistance (Ohm)
Measuring range: 400 Ω to 40 MΩ
Accuracy 400 Ω: ±(1.2 % +4 digits)
Accuracy 4 kΩ: ±(1.0 % +2 digits)
Accuracy 40 kΩ/ 400 kΩ/4 MΩ: ±(1.2 % +2 digits)
Accuracy 40 MΩ: ±(2.0 % +3 digits)

Frequency
Measuring range: 9.999 Hz bis 9.999 MHz
Accuracy 99.99 Hz: ±(1.5 % +5 digits)
Accuracy 999.9 Hz: ±(1.2 % +3 digits)
Accuracy 9.999/99.99/999.9 kHz: ±(1.2 % +3 digits)
Accuracy 9.999 MHz: ±(1.5 % +4 digits)

Temperature (°C / °F)
Measuring range: -20 to +760 °C
Measuring range: -4 to +1,400 °F
Accuracy: ±(3,0 % +5 °C/ 9 °F)

The technical details of the BE50 digital multimeter

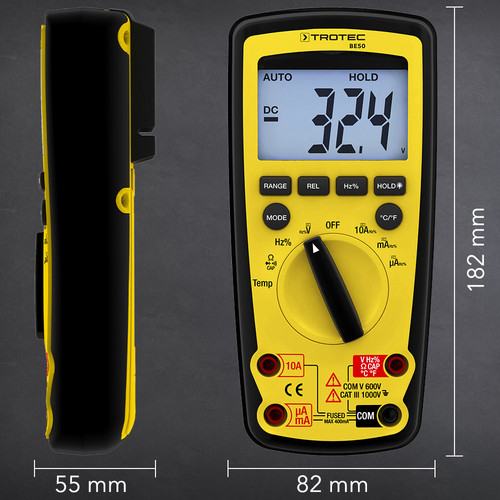

BE50 - Dimensions
Small, light and handy: The BE50 impresses with its small size despite its high performance. With its compact dimensions, the measuring device fits into any tool bag.
BE50 - Display
Large, clear and informative: the recorded measurement data can be easily read on the large LCD screen with adjustable backlighting, even in poor lighting conditions.
BE50 - Scope of delivery
The BE50 hand-held meter is supplied including safety leads with test probes and temperature sensor (K-type).

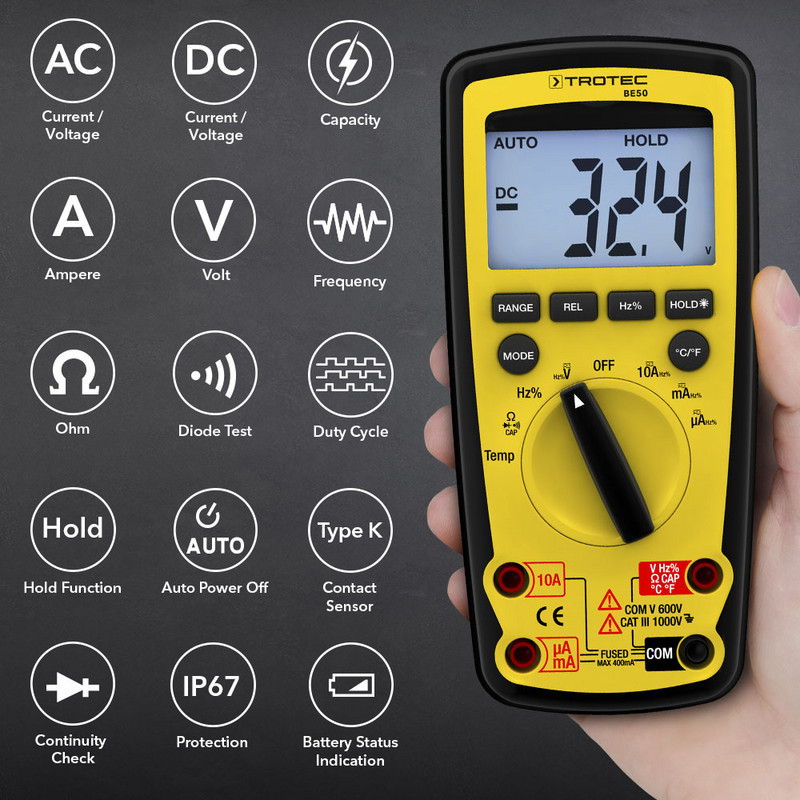

BE50 - Numerous functions
Everything from one source: With the BE50, DC voltage, AC voltage, DC current, AC current, resistance and temperature can be measured conveniently and precisely. In addition to the practice-oriented full equipment, the BE50 with protection class IP67 convinces with excellent processing quality and robustness.
BE50 - Numerous functions
Everything from one source: With the BE50, DC voltage, AC voltage, DC current, AC current, resistance and temperature can be measured conveniently and precisely. In addition to the practice-oriented full equipment, the BE50 with protection class IP67 convinces with excellent processing quality and robustness.

With the BE50 you have a powerful digital multimeter for many applications

Measuring instrument for the most diverse areas of application in the commercial or semi-professional sector
With a total of eleven measuring functions, automatic range selection, temperature measurement with type K contact sensor, hold function and display illumination, this measuring instrument is suitable for a wide range of applications in the commercial or semi-professional sector.

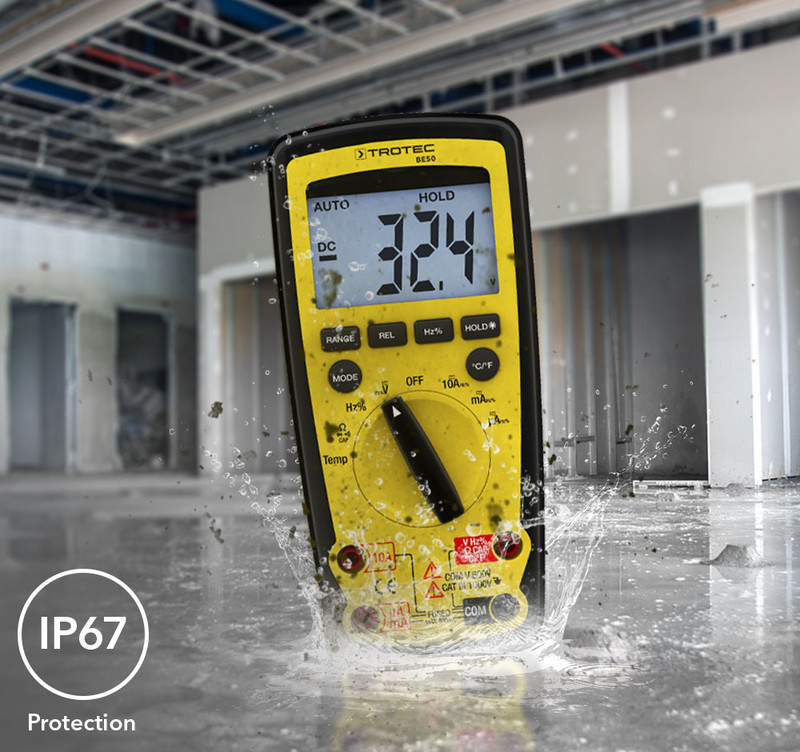

Ideally suited for tough everyday use
The meter and test leads are double-insulated and conform to protection class II. In addition, this digital multimeter is extremely shockproof and absolutely dustproof and waterproof - and thus ideally suited for tough everyday use!

All multimeters in direct comparison:

To help you find exactly the right digital multimeter for you, here you have the opportunity to clearly compare all multimeters from Trotec.

Models which you do not wish to include in your comparison can be easily dismissed with only one click.

Technical data by comparison

A few practical benefits:

  • Digital multifunction measuring meter with eleven measuring functions
  • 4-digit LC display (max. indication 3999)
  • Especially hardwearing and efficient
  • Automatic range selection
  • CAT III 1,000 V / CAT IV 600 V
  • Direct current and alternating current measurement up to 10 A
  • DC and AC voltage measurement up to 1,000 V
  • Resistance measurement
  • Continuity test and diode test
  • Measurement of frequency, capacitance and duty cycle
  • Temperature measurement with type K contact sensor
  • Impact-proof housing
  • IP67 type of protection – dust- and water-proof
  • Non-contact voltage detection
  • Insulation protection class II for measuring device and measuring lines
  • Hold function
  • Backlit display
  • Automatic switch off
  • Optimum price-performance-ratio

Shop

Digital-Multimeter BE50 show in Trotec online shop

Digital-Multimeter BE50

You save: 28 %

59.99 € 42.99 € incl. VAT Show net price (VAT not included)

buy

Technical data

Technical data
General information
  Article number 3.510.205.250
DC voltage [V/DC]
  Min. measuring range | DC voltage [V] 0.1
  Max. measuring range | DC voltage [V] 1,000
  Accuracy ± | DC voltage [%] 1.2
AC voltage [V/AC]
  Min. measuring range | AC voltage [mV] 0.1
  Max. measuring range | AC voltage [V] 1,000
  Accuracy ± | AC voltage [%] 2
Direct current [A/DC]
  Min. measuring range | Direct current [A] 0
  Max. measuring range | Direct current [A] 10
  Accuracy ± | Direct current [%] 1.5
Alternating current [A/AC]
  Min. measuring range | Alternating current [A] 0.001
  Max. measuring range | Alternating current [A] 10
  Accuracy ± | Alternating current [%] 2
Resistance [Ω]
  Min. measuring range [Ω] | Resistance 0.1 Ω
  Max. measuring range [Ω] | resistance 10 MΩ
  Accuracy ± | Resistance [%] 1.2
Capacity [F]
  Min. measuring range | Capacity [pF] 10
  Max. measuring range | Capacity [µF] 100
  Accuracy ± [%] 3
Frequency [f]
  Min. measuring range | Frequency [mHz] 1
  Max. measuring range | Frequency [MHz] 10
  Accuracy ± | Frequency [%] 1.2
Duty cycle [%]
  Min. measuring range [%] | Duty cycle 0.1
  Max. measuring range [%] | Duty cycle 99.9
  Accuracy ± | Duty cycle [%] 1.2
Temperature
  Min. measuring range [°C] -20
  Max. measuring range [°C] 760
  Min. measuring range [°F] -4
  Max. measuring range [°F] 1,400
  Accuracy ±3.0 %; ±5 °C
  Resolution | Temperature [°C] 1
Display
  LCD 4-digit
Housing design
  Plastics
Interfaces
  Connection sockets for 4 mm safety connectors (banana) 4 x
  Connection socket for K type thermal element
Measuring category
  CAT III (1,000 V)
  CAT IV (600 V)
Safety
  EN 61.326
  EN 61010-1
  EN 61010-2-031
Insulation
  Protection class II
Type of protection
  IP67
Power supply
  Internal (battery)
  Battery type 1x 9 V battery
Ambient conditions
  Operation - min. temperature [°C] -10
  Operation - max. temperature [°C] 50
  Max. humidity range [% r.F.] 70
Dimensions
  Length (packaging excluded) [mm] 182
  Width (packaging excluded) [mm] 55
  Height (packaging excluded) [mm] 82
Weight
  (packaging excluded) [kg] 0.32
Standard scope of delivery
Standard scope of delivery
  Measuring device
  Safety measuring lines with test probes
  Contact temperature sensor type K
  Operating manual
  Transport bag
Ascertainable measured values and functions
Internal sensors
  AC voltage [V/AC]
  DC voltage [V/DC]
  Resistance [Ω]
  Alternating current [A/AC]
  Direct current [A/DC]
  Capacity [F]
  Frequency [Hz]
  Duty cycle [%]
External sensors
  Temperature [°C]
Functions and features
  Continuity test
  Diode testing
  Measured value hold function
  Automatic measuring range selection
  Automatic switch-off
  Backlit display
  Type K contact temperature measurement
  Visual alarm
  Battery status indication
  Duty cycle
  Non-contact detection of AC voltage
