Turbo fan TFV 20

Appearance and performance at their peak – a turbo blower for pros

The TFV 20 is a remarkably fine solution for the large-volume air circulation of many professional tasks. This radial fan exclusively available only at Trotec is not only characterized by its practice-optimized German industrial design, but more by the high degree of performance and durability.

The professional turbo fan TFV 20 from Trotec
The professional turbo fan TFV 20 from Trotec
Can be used in three installation positions: horizontal, inclined by 45° or vertical

The construction of the TFV 20 has been designed for maximum usage flexibility in rough operating conditions. For this reason, a double-flow radial fan with extra-large shaft is fitted inside an extremely robust plastic housing – its motor is fully enclosed by metal to protect it from dust and dirt.

The operating elements have been recessed for protection from impact damage. In addition to the two-stage operating switch and a MID-compliant* dual counter for operating hours and energy consumption the control panel as standard also accommodates a service socket for the direct connection of another turbo fan or dehumidifier.

The TFV 20 at its best: universally applicable in various positions to meet any requirement – an all-round success

Integrated bump stops permit the space-saving, positive-fit stacking of several devices for transport and storage. During the on-site ventilation operation the turbo fan equipped with carrying handle bar can be variably used in three installation positions: horizontal, inclined by 45° or vertical. A great variety of ventilation scenarios can be realized in this manner with the all-round slip-resistant skids of the TFV 20 ensuring the required secure footing in any position.

For the specifically directed spot ventilation you can also purchase an optionally available hose distributor with connection option for two fan hoses with a total length of up to 40 metres.

Our aerodynamics specialists designed the air exhaust duct of the TFV 20 in a way to optimally distribute a broad near-ground air current over wet flooring or screeds, which perceptibly reduces drying time and renders the device ideally suitable for carpet drying.

Wherever you need to circulate great amounts of air, the powerful TFV 20 can handle this task reliably and in an energy-efficient manner. From the acceleration of the construction drying process to the ventilation of hollows and cavities as well as the drying support for water damage restoration – the turbo fan TFV 20 is the perfect solution for all of these application purposes!

* What does MID compliant mean?

The European Measuring Instruments Directive (MID) has replaced the existing rules of national approval and subse-quent calibration in some areas. As a result, all power meters, which are used for energy consumption billing, must be MID compliant in the future.


The turbo fan TFV 20 offers professionals many practical benefits:

A robust and tight metal enclosure reliably protects the inside of the motor against the infiltration of dust or dirt.
Encapsulated motor
A control panel recessed for protection comes with stage selection switch, service socket and MID-compliant* dual counter for operating hours and energy consumption.
Control panel recessed for protection

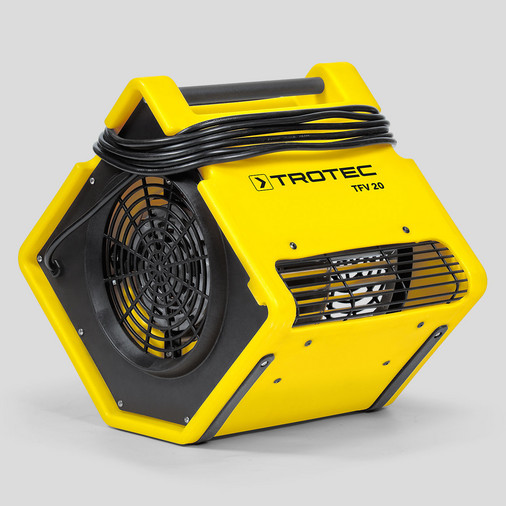

Integrated handle bar and cable holder permit the quick transportation without creating any extra trip hazards and all-round slip-resistant skids guarantee secure footing.
Easy to transport
Located behind the especially formed air outlet provided with protective grid you’ll find a double-flow radial fan with extra-large shaft that ensures high compression.
High compression
Thanks to the bump stops attached to the sides the TFV 20 can be stacked to save space in the service vehicle or the storage facility – even several times and always with a positive-fit connection.
Multi-stackable
Optionally available for the TFV 20 is a two-way hose distributor by use of which the air current can be directed to two different zones.
Optional two-way hose distributor

Technical data by comparison

All Turbo fans of the TFV series in direct comparison:

To find the odour neutraliser which exactly meets your requirements, please consult the concise overview of all devices which we’re providing to you here so that you can compare them directly to each other.

Models which you do not wish to include in your comparison can be easily dismissed with only one click.

Technical data by comparison


A few practical benefits:

  • Development, design, production: 100 % Trotec
  • Both robust and light construction
  • Double-flow radial fan with extra-large shaft
  • Slip-resistant skids all round
  • Two fan stages
  • Operation and storage possible in several angular positions
  • High energy efficiency, thus equally powerful and energy-saving
  • Multi-stackable
  • Robust and tight metal enclosure of the motor to protect it from invasive dust
  • MID-compliant* dual counter for operating hours and energy consumption
  • Control panel recessed for protection
  • Integrated service socket
  • Practice-optimized German industrial design – protected design patent

Buy

Turbolüfter TFV 20 im Trotec Webshop zeigen

Turbolüfter TFV 20

Der TFV 20 ist eine auffallend gute Lösung für großvolumige Luftumwälzungen bei vielen professionellen Aufgabenstellungen.

Technical data

Technical data
General information
  Article number 1.510.003.024
Air flow rate
  Level Max. [m³/h] 1,185
Air current
  Blowing out
  Sucking in
Fan
  stages 2
  Radial
  axial
Air discharge velocity
  Air discharge speed [m/s] 7.8
Air pressure
  Level Max. [Pa] 390
Transport medium temperature
  max. [°C] 60
Electrical values
  Mains connection 230 V/50 Hz
  Nominal current consumption [A] 2.15
  Power input [kW] 0.49
Electric connection
  Connection plug CEE 7/7
  Cable length [m] 5
Safety feature
  IP type of protection IP22
Sound values
  Level 1 - Distance 3 m [dB(A)] 64
  Level 2 - Distance 3 m [dB(A)] 69
Operating hours counter
  Operating hours counter
Dimensions
  Length (packaging excluded) [mm] 343
  Width (packaging excluded) [mm] 335
  Height (packaging excluded) [mm] 355
Weight
  (packaging excluded) [kg] 12
Equipment, features and functions
Mobility
  Carry/transport handle(s)
  portable
  stackable
Shelf life
  Stackable

 standard equipment

 optionally available

 not available
