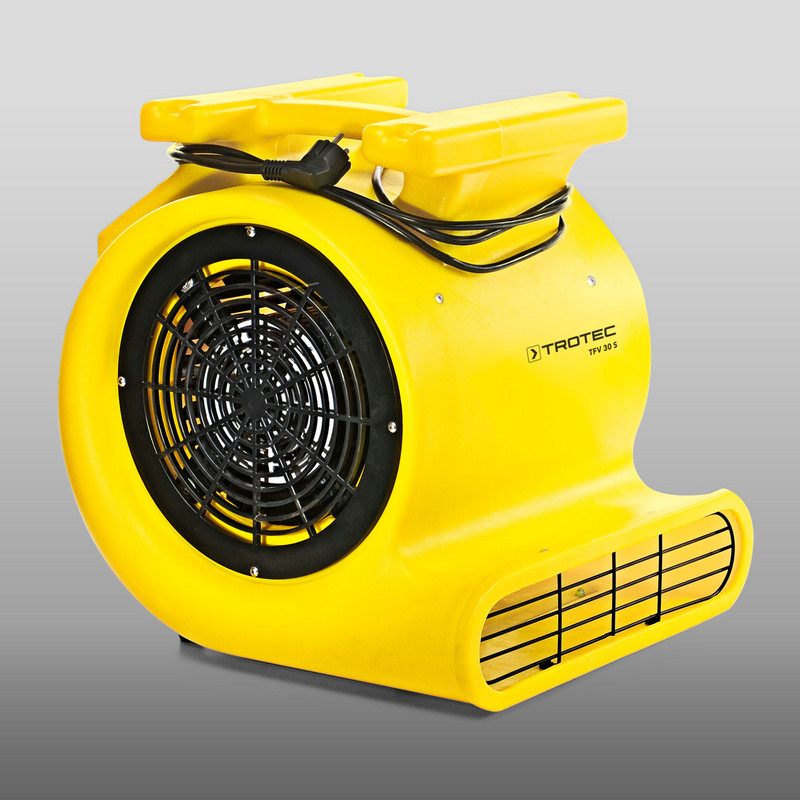

Turbo fan TFV 30 S

The TFV 30 S turbofan provides a wide and flat air flow, especially for the drying of floors or walls

Due to its especially formed air exhaust duct, this turbo fan produces a wide air current near the ground above wet flooring or screeds. The room air is thus optimally distributed which perceptibly reduces drying time.

In the case of carpet cleaning, the accelerated drying besides time saving also brings along the advantage, that natural fibre fabrics distinctly less often lose their shape and corrugation can be avoided.

But also when assisting in wall and floor drying after a water damage, or else speeding up the drying of screed and entire buildings, the TFV 30 S can provide valuable services.

The stackable TFV 30 S comes with three variable power stages, so the air volume can always be optimally adjusted to the different requirements of the object. Its housing consists of indestructible polyethylene and is therefore equally light and robust.



Practical: Service socket and optional triple hose distributor

A helpful equipment feature of the TFV 30 S is the integrated service socket. Even when no cable drum or further wall sockets are available, one can e.g. connect a second turbo fan or an additional dehumidifier for drying support directly to the TFV 30 S.

Furthermore, a triple hose connector is optionally available with which the air flow can be focused on up to three different spots in only one work step. If less than three hoses are to be connected the supplied sealing plugs reliably seal the not required hose connections.

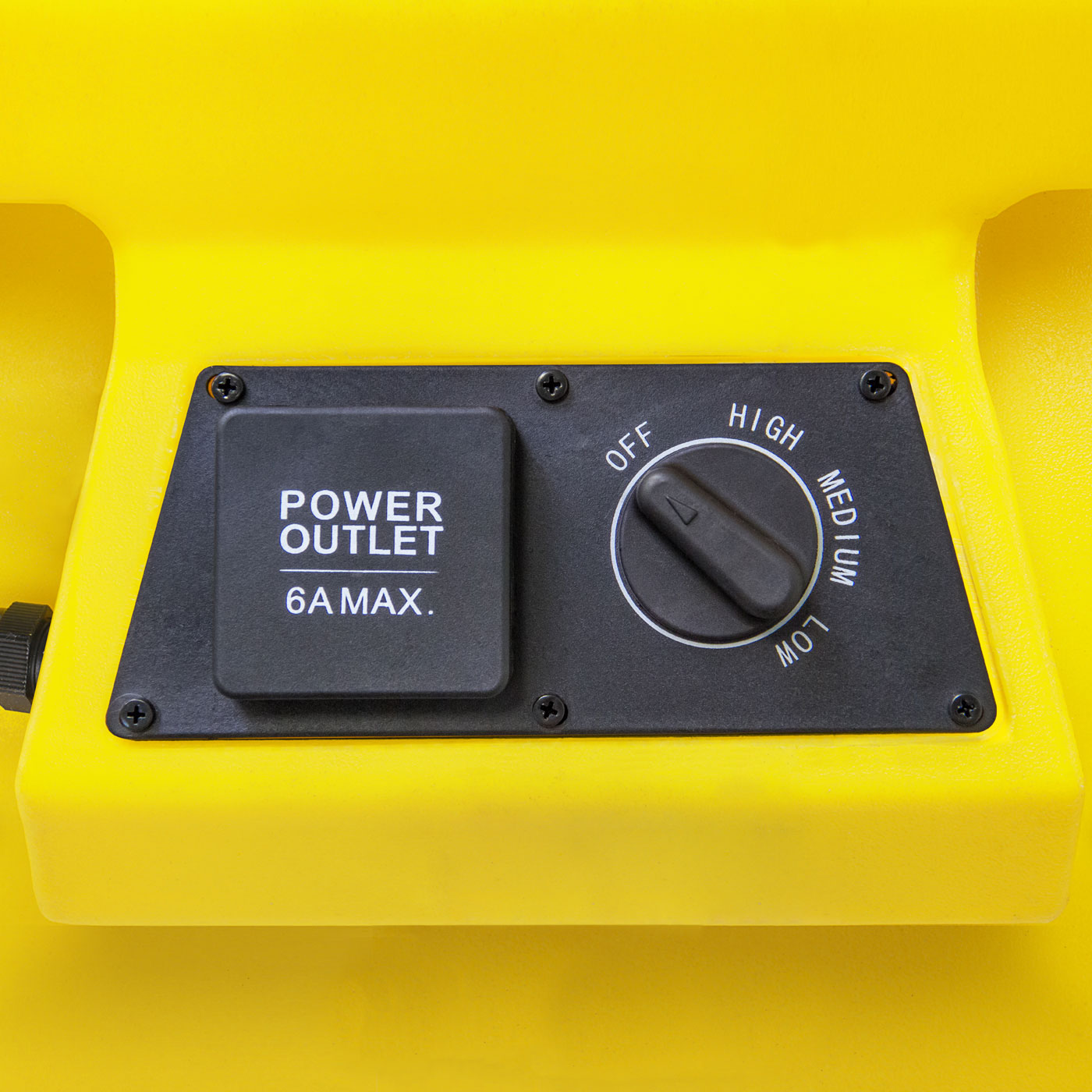

The TFV 30 S turbo fan has three adjustable power levels ...
The TFV 30 S turbo fan has three adjustable power levels
... as well as an integrated service socket

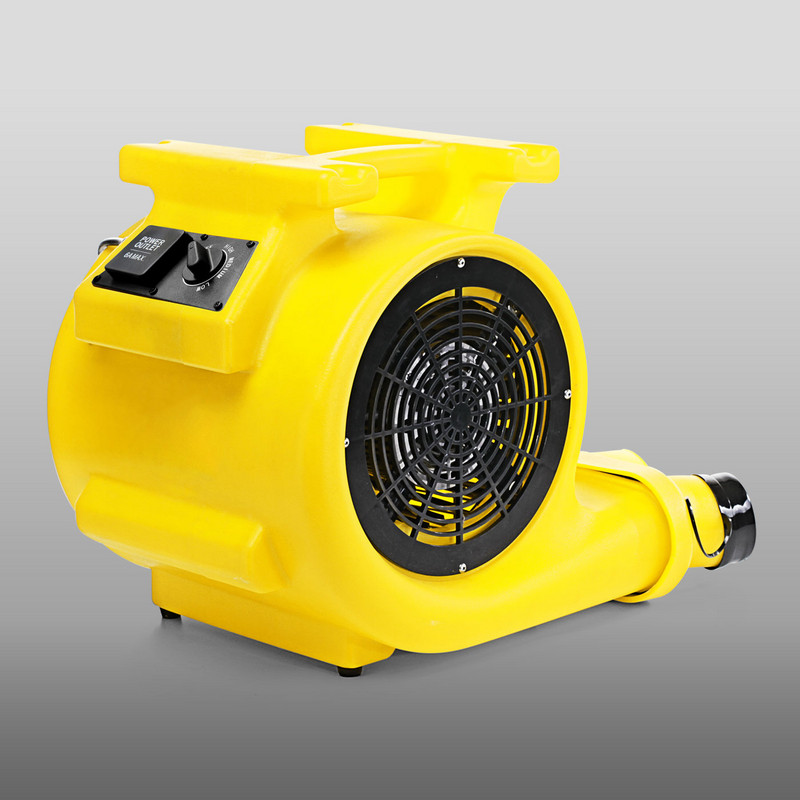

TFV 30 S turbo fan with integrated service socket

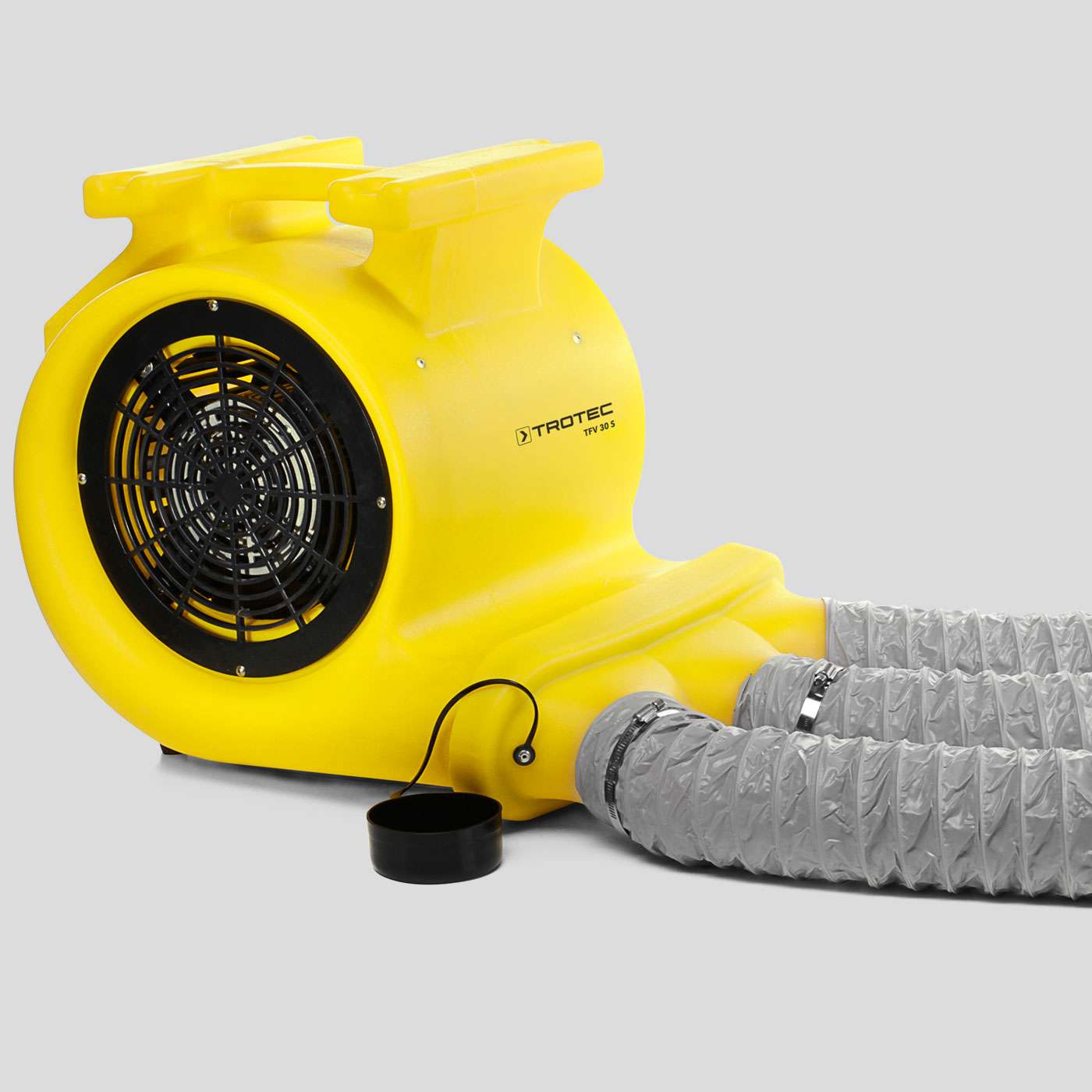

TFV 30 S turbo fan with attachment for hose connection
TFV 30 S turbo fan with attachment for hose connection

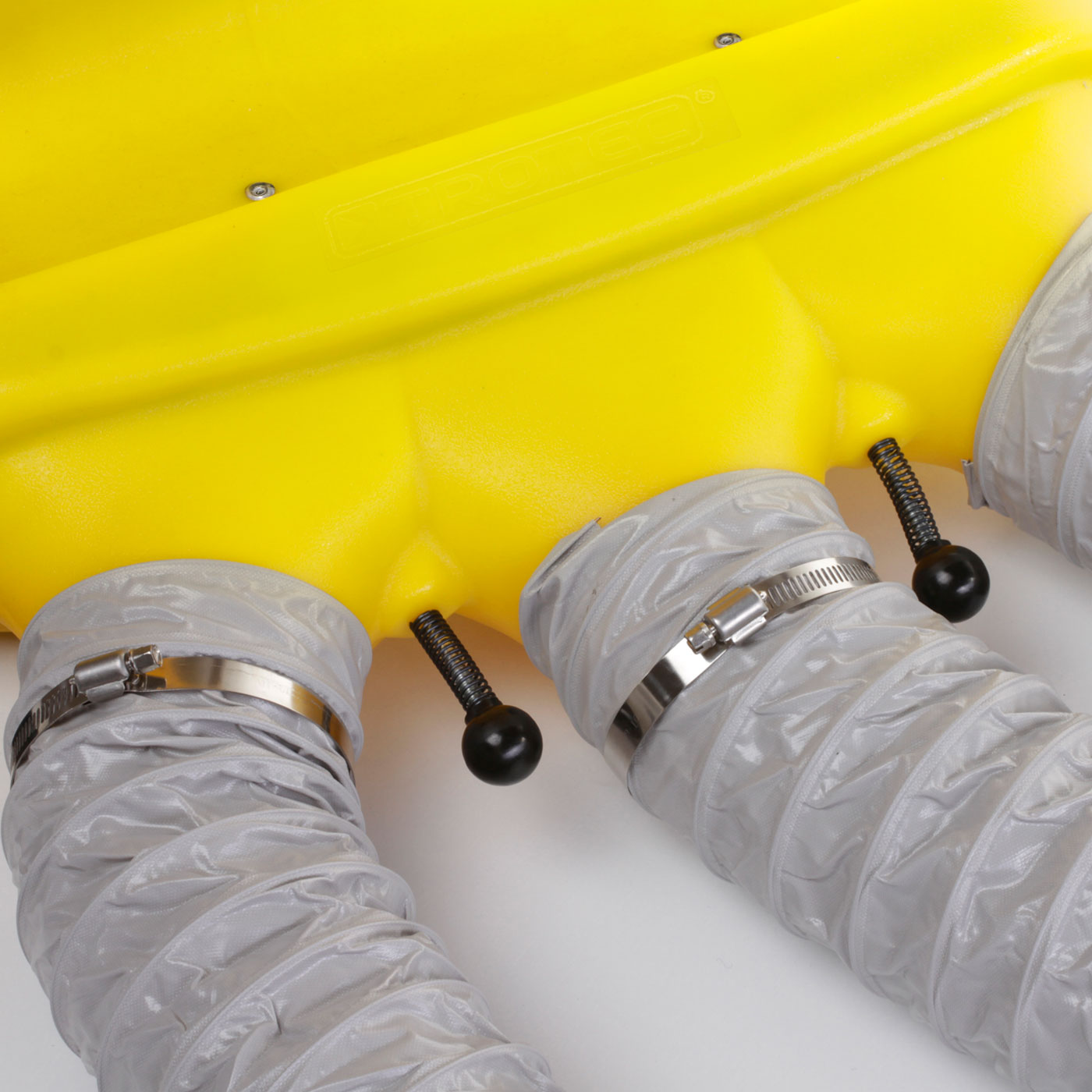

Optional accessories: the triple hose distributor for the TFV 30 S
Optional accessories: the triple hose distributor for the TFV 30 S

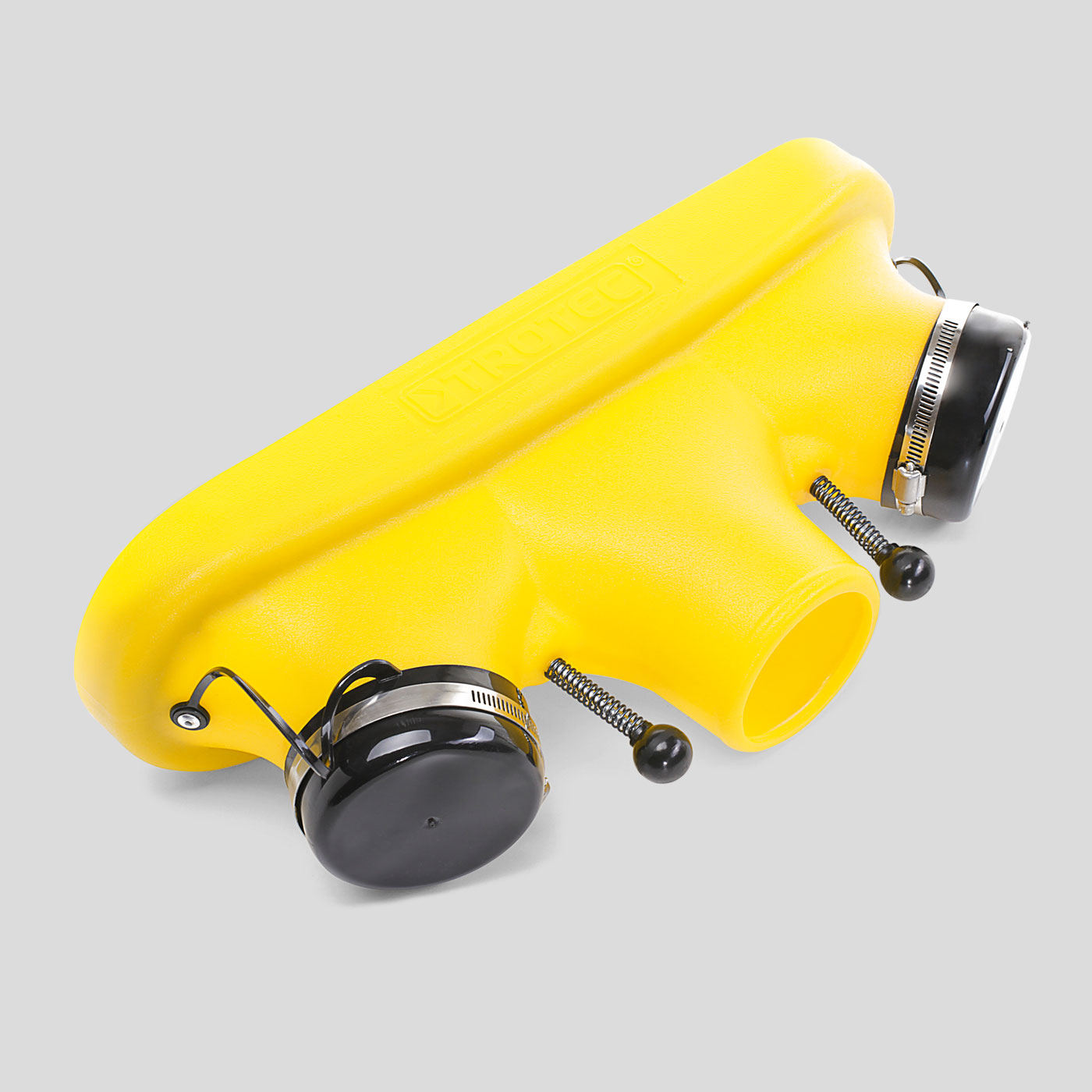

The sealing caps included in the scope of delivery of the triple hose distributor seal off hose connections are not required
Sealing caps reliably seal off hose connections that are not required

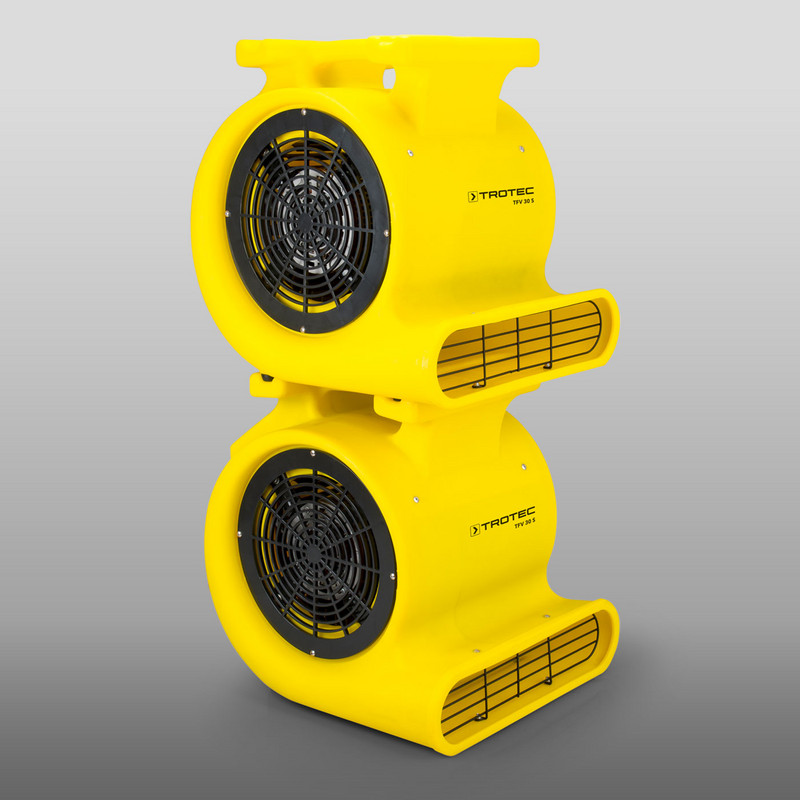

The TFV 30 S is easily stackable
The TFV 30 S is easily stackable
Turbo fans of the TFV-S series – Installation angle 0°
Turbo fans of the TFV-S series – Installation angle 45°
Turbo fans of the TFV-S series – Installation angle 90°
Whether at 0°, 45° or 90° – both high-performance fans can be used in three different installation angles and ensure a secure footing in either position.
Technical data by comparison

All Turbo fans of the TFV-S series in direct comparison:

To find the turbo fan of the TFV-S series which exactly meets your requirements, please consult the concise overview of all devices which we’re providing to you here so that you can compare them directly to each other.

Models which you do not wish to include in your comparison can be easily dismissed with only one click.

Technical data by comparison

A few practical benefits:

  • Robust polyethylene housing
  • Double-flow radial fans with extra large shaft
  • Three fan stages
  • Operation and storage possible in several angular positions
  • High energy efficiency, thus equally powerful and energy-saving
  • Stackable

Shop

Turbolüfter TFV 30 S show in Trotec online shop

Turbolüfter TFV 30 S

You save: 16.76 €

386.75 € 369.99 € incl. VAT Show net price (VAT not included)

buy

Technical data

Stammdaten
Artikelnummer1510003031
Länge ohne Verpackung [mm]480 mm
Länge mit Verpackung [mm]490 mm
Breite ohne Verpackung [mm]455 mm
Breite mit Verpackung [mm]500 mm
Höhe ohne Verpackung [mm]475 mm
Höhe mit Verpackung [mm]490 mm
Gewicht ohne Verpackung [kg]16.5 kg
Gewicht einschließlich Verpackung [kg]20 kg
Produktinformationen
Maximale Stapelhöhe3
Technische Daten
Lüftergeschwindigkeiten3
Luftgeschwindigkeit am Luftauslass [m/s]10
Fördermitteltemperatur - max. [°C]60
Luftgeschwindigkeit am Auslass – [km/h]36
Energie
Kabellänge [m]5
Nennstromaufnahme A5.2
Stromversorgung und Frequenz230 V, 50 Hz
Leistungsaufnahme1.05 kW
Empfohlene Absicherung [A]10 A
Empfohlene Vorsicherung [A]10
Aussehen
VentilatorflügelKunststoff
Lagerfähigkeit
Stapelbar
Ventilatortyp
radial
Luftstrom
Ausblasend
Gehäusedesign
Kunststoff
Mobilität
Trage-/Transportgriff(e)
tragbar
stapelbar
Steckverbinder
BezeichnungCEE 7/7
IP-Schutzart
IP SchutzartIP22
Schutz gegen BerührungSchutz gegen den Zugang mit einem Finger o.ä.
Schutz gegen WasserSchutz gegen bis zu 15° schräg auffallendes Tropfwasser
Schutz gegen FremdkörperSchutz gegen feste Fremdkörper mit Durchmesser ≥ 12,5 mm
Luftmenge
Stufe/AnwendungLuftmenge [m³/h]Luftmenge Typ
11350
21880
32250
Max.2250
Luftdruck
Stufe/AnwendungLuftdruck [Pa]
1370
2400
3525
Max.525
Leistungsaufnahme [kW]
Stufe/AnwendungLeistungsaufnahme [kW]
10.71
20.78
31.05
Max.1.05
Schallpegel
Abstand [m]Stufe/AnwendungSchallpegel [dB(A)]
3173,5
3280,8
3386,2
