VSP inspection system

Equally mobile and modular – the VSP is an enormously versatile solution for flexible technical video endoscopy applications

To date, maintenance engineers and service technicians had to use all sorts of optical aides to carry out visual inspections. Many instruments, high investments and time-consume training measures for each individual device.

The modular design of our VSP inspection system provides a smart alternative, for VSP can offer you maximum flexibility by combining one universal monitor control unit with several optional optical modules.

One system – countless options

Simply piece together the ideal configuration for your application purpose and expand the system with additional components if required.

Be it for the inspection of industrial facilities, exhaust gas and air lines, house connections, ventilation systems or sewer pipes – the modular VSP inspection system offers flexible application possibilities.

For instance, you can use the VSP system as pipe camera with long push cable for the visual inspection of sewer or ventilation ducts and chimneys, as endoscope with flexible probe for the internal inspection of poorly accessible hollow spaces or as borescope with rigid probe and dual camera for visual inspections of machinery and plants.

Accumulated dirt, damages or defects can quickly be detected and documented in photo or video format on an SD card.


With VSP you'll always have the right combination

The monitor control unit VSP Control is the centrepiece of the VSP system. This control unit with imaging technology can be fastened securely to the push-cable drum by means of a snap-in locking mechanism and connected to the camera head via the multi-connector socket.

The particular advantage of the VSP system is that the monitor control unit VSP Control can not only be combined with various push-cable drums and camera heads but also with different endoscopes and borescopes for video inspection.

All accomplished with just one system and a uniform control logic.


Cable drum camera set VSP3041 for sewer and pipe inspection

Benefit from the flexibility of the modular VSP system, e.g. with the cable drum camera set VSP3041 in order-ready configuration comprising the following system components:

This set provides you with an ideal push-cable camera that allows the budget-friendly, on-demand multiplication of application possibilities by adding VSP components.

Only the VSP inspection system from Trotec can offer this kind of application flexibility!

Cable drum camera set VSP3041 for sewer and pipe inspection

Low-budget upgrade option with further VSP system components

Low-budget upgrade option to inspect machinery, installations or building structures

Conventional video borescopes and endoscopes are independent measuring devices with integrated monitor unit, interfaces and control electronics. Which increases the cost for an individual device.

With the VSP system you can save that money as well as the time-consuming training period. In addition to the push-cable drum there are also a number of borescopes and endoscopes available for the VSP system that can simply be connected via the multi-connector at the control unit VSP Control.

The image display is always coordinated via the VSP Control whereas additional function buttons at the pistol grip of borescope and endoscope ensure the fast operation.

Here you can find an overview of all available VSP components ...


A few practical benefits:

  • Development, design, production: 100 % Trotec
  • Perfect universal solution for many VT applications (virtual testing)
  • Modular system – can be flexibly combined and extended
  • Robust control unit with colour display and extremely powerful lithium polymer battery – universally applicable with all VSP system components
  • Light-intense, bendable camera heads – rotatable and pivoting or super slim and water-proof in accordance with IP67
  • Can be expanded with various video endoscopes and borescopes

All VSP system components at one glance

Monitor control unit
VSP Control

More information

Push-cable drum
VSP-R30

More information

Camera heads
VSP-H

More information

Video endoscopes
VSP-VS

More information

Video borescopes
VSP-BS

More information


Control unit VSP Control

The control unit VSP Control is the centrepiece of the overall VSP system. Used as pipe camera, endoscope or borescope – the VSP Control functions as imaging system for each connected camera module with a uniform logic for all the modules' operating or control settings.

Using the VSP Control the camera head can be rotated and swivelled (VSP-H41M). Also, you can make settings for brightness, zoom, photo or video recordings and memory management.

Via the multi-connector of the VSP Control you can optionally connect the push-cable drum or various video endoscopes and borescopes. The unit fitted into an ABS housing of protection type IP67 with rubberized operator keypad and lateral rubber protectors is further equipped with a USB connection and an SD card slot.

Control unit VSP Control

Use the control unit VSP Control for all VT inspections and know that everything is under control

The robust ABS housing (1) of IP64 type of protection, lateral rubber protectors and wrist straps accommodates a rubberized operator keypad and a wide, high-contrast VGA display (2) onto which you can attach an anti-glare shield (3) if needed.
Robust ABS housing with plug-on anti-glare shield
At the rear there are two standoffs (4) for snap-in attachment to the push-cable drum VSP-R30 during transport and application. Another practical feature is the integrated battery level indication (5).
Battery level indication at the rear
The multi-connector socket (7) fitted with a protective cap permits the connection of push-cable camera, borescope or videoscope. For ease of use when examining the display the unit can be propped up on its fold-out stand (6).
Integrated stand

Push-cable drum VSP‑R30

For the combined application with the control unit VSP Control

The VSP-R30 is the ideal pipe camera not only for visual inspections of sewer or ventilation ducts and chimneys, but also for plenty of other applications owing to the various equipment options incl. a number of large camera heads. The fibreglass-reinforced push cable is fitted with metre counter and has an additional partial distance measurement function.

Push-cable drum VSP-R30 with VSP Control
The VSP-R30's push cable of 30 metres length is fibreglass-reinforced and bendable by 90° in pipelines ≥ 135 mm.
Fibreglass-reinforced push cable
A push cable metre counter with partial distance measurement function is integrated in the drum housing.
Integrated push cable metre counter with partial distance measurement function
The push-cable drum is designed in a way that permits its utilization in horizontal or vertical position.
Can be used in vertical and horizontal position
During transport the integrated coiled cord for the connection of the VSP Control can be attached to two clips.
Clips for fastening the coiled cord in place
Two standoffs at the rear permit the quick snap-in attachment of the control unit VSP Control and ensure its secure hold in every position.
Snap-in system on the rear for attaching the control unit VSP Control
Push-cable drum and camera head can easily be transported or stored away as entire system along with the attached control unit.
Easy transport

Benefit from the flexibility of the modular VSP system, e.g. with the cable drum camera set VSP3041 in order-ready configuration comprising control unit VSP Control with anti-glare shield in a transport case, cable drum VSP-R30 with 30 m push cable and camera head VSP-H41M.


Camera heads VSP-H

For inspections using the push-cable drum VSP-R30

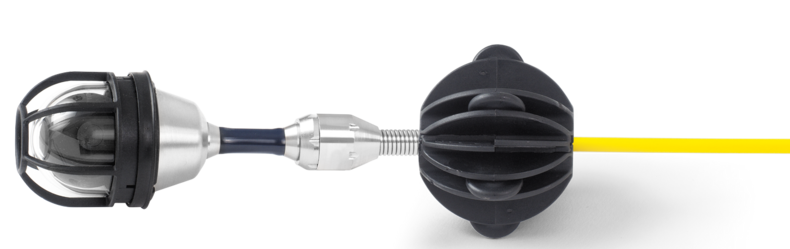

Camera heads VSP-H

During inspection operations the camera head VSP-H41M can be rotated by 360° and pivoted by 180°.

Camera and LEDs of the VSP-H41M are located underneath a transparent, exchangeable plastic dome providing the necessary shock protection.

The thinner camera head VSP-H25F is perfectly suited for narrow inspection areas as its >120° field of vision gives you an excellent overview.


Video endoscopes VSP-VS

For the combined application with the control unit VSP Control

Videoscopes of varying probe lengths and diameters are available for the VSP system. To display and store images simply connect the videoscope to the control unit VSP Control. Each videoscope comes with a camera head that is steplessly bendable to all sides and a robust, multi-walled probe for maximum flexibility with simultaneously high torsional strength.

Video endoscopes VSP-VS

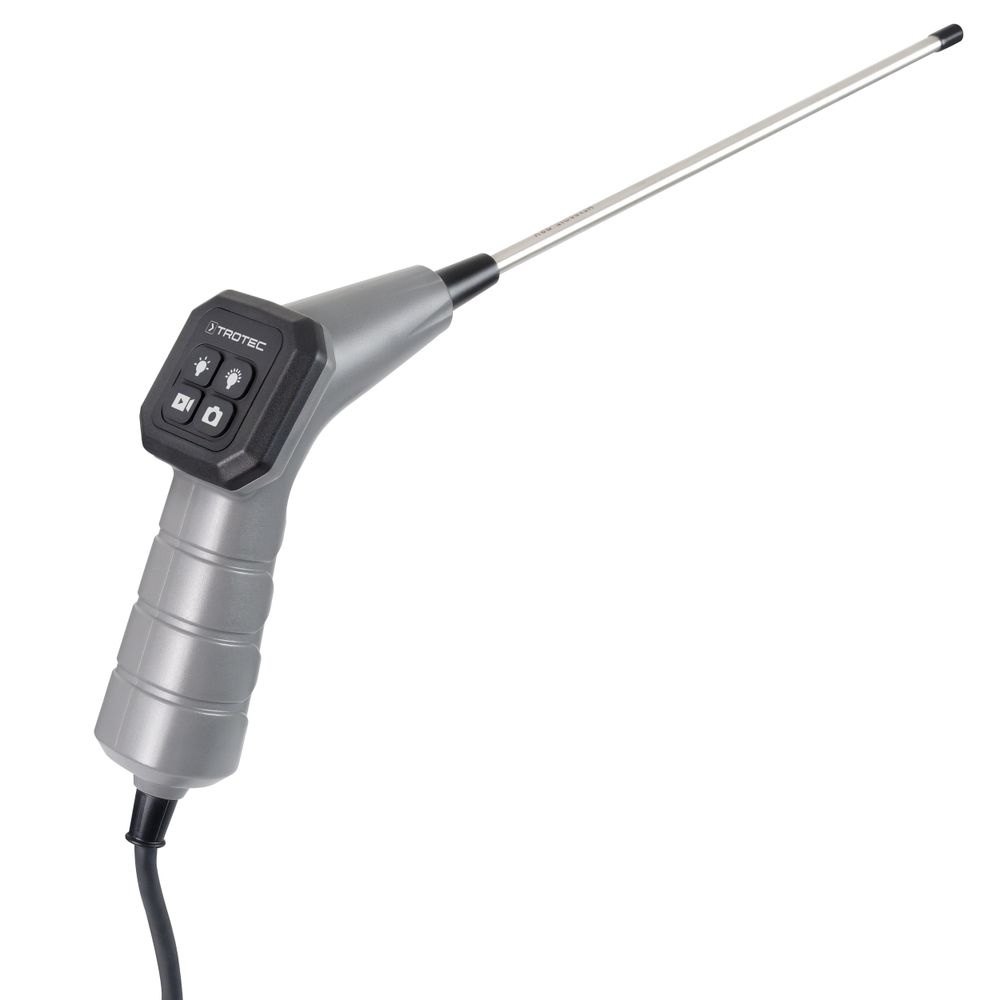

Video borescopes VSP-BS

For the combined application with the control unit VSP Control

Borescopes with different probe diameters and front, side-view or dual camera available to meet any application requirement. To display and store images simply connect the borescope to the control unit VSP Control.

Schematic representation of viewing direction and field of vision of the available borescope probes VSP-BS
Schematic representation of viewing direction and field of vision of the borescope probes VSP-BS
Video borescopes VSP-BS

Buy

Inspektionssystem VSP3041 im Trotec Webshop zeigen

Inspektionssystem VSP3041

Das VSP-Inspektionssystem bietet Ihnen größtmögliche Flexibilität durch die Kombinationsmöglichkeit einer universellen Monitor-Steuereinheit.

2,969.05 € inkl. MwSt. Nettopreis exkl. MwSt. anzeigen

jetzt kaufen

Technical data

Technical data
General information
  Article number 3.110.007.101
Display
  Colour LCD / 7 inch
  Resolution 800 x 480 pixels (wide VGA)
  Brightness 600 cd/m²
File format
  Snapshot JPG (1024 x 768)
  Video AVI (640 x 480 [4:3] or 800 x 480 [16:9])
Interfaces
  USB
  SD card slot
  Multi-connector socket for push-cable camera
  Borescope and videoscope
  (analogue video NTSC/PAL optional)
Housing design
  ABS with IP64 type of protection
  Rubberized operator keypad
  Lateral rubber protectors
  Wrist straps
  Fold-out stand
  Integrated battery capacity indication
Power supply
  11.1 V lithium polymer battery pack
  External (power adapter)
Functions and features
  Probe head motion control
  Photo / video production
  Display brightness
  Zoom function
  System settings
  Memory management
Dimensions
  Length (packaging excluded) [mm] 257
  Width (packaging excluded) [mm] 171
  Height (packaging excluded) [mm] 64
Weight
  (packaging excluded) [kg] 1.74
Standard scope of delivery
Standard scope of delivery
  VSP Control
  Anti-glare shield
  Battery charger
  USB cable
  Transport case
  SD card

 standard equipment

 optionally available

 not available

VSP Control

Technical data

Technical data
General information
  Article number 3.110.007.110
Display
  Colour LCD / 7 inch
  Resolution 800 x 480 pixels (wide VGA)
  Brightness 600 cd/m²
File format
  Snapshot JPG (1024 x 768)
  Video AVI (640 x 480 [4:3] or 800 x 480 [16:9])
Interfaces
  USB
  SD card slot
  Multi-connector socket for push-cable camera
  Borescope and videoscope
  (analogue video NTSC/PAL optional)
Housing design
  ABS with IP64 type of protection
  Rubberized operator keypad
  Lateral rubber protectors
  Wrist straps
  Fold-out stand
  Integrated battery capacity indication
Power supply
  11.1 V lithium polymer battery pack
  External (power adapter)
Functions and features
  Probe head motion control
  Photo / video production
  Display brightness
  Zoom function
  System settings
  Memory management
Dimensions
  Length (packaging excluded) [mm] 257
  Width (packaging excluded) [mm] 171
  Height (packaging excluded) [mm] 64
Weight
  (packaging excluded) [kg] 1.74
Standard scope of delivery
Standard scope of delivery
  VSP Control
  Anti-glare shield
  Battery charger
  USB cable
  Transport case
  SD card

 standard equipment

 optionally available

 not available

VSP-R30

Technical data

Technical data
General information
  Article number 3.110.007.115
Push cable
  Type Fibreglass-reinforced
  Dimensions Length 30 m, ø 5.4 mm
  90° bend flexibility Lines ≥ 135 mm
  Protection type of push cable IP67 (connection camera head)
Drum
  design Metal housing with carrying handle and un-/reeling aid, Can be used in vertical and horizontal position, Snap-in system on the rear for attaching the control unit VSP Control, Digital metre counter, Integrated coiled cord with multi-connector for VSP Control
Dimensions
  Length (packaging excluded) [mm] 515
  Width (packaging excluded) [mm] 405
  Height (packaging excluded) [mm] 200
Weight
  (packaging excluded) [kg] 6.5

 standard equipment

 optionally available

 not available

Camera heads VSP-H

camera head VSP‑H41M

Technical data
General information
  Article number 3.110.007.130
Display
  Resolution 300,000 pixels
Housing design
  Stainless steel probe with plastic dome
Probe / camera head
  Focus manual
  12 LEDs
  DOF 15 mm to ∞
  Field of vision > 75°
  Swivel range [°] 180
  Rotation 360°
  Watertightness Up to 1 m
Dimensions
  Length (packaging excluded) [mm] 60
  Diameter (packaging excluded) [mm] 41
Standard scope of delivery
Standard scope of delivery
  5 replacement plastic domes

 standard equipment

 optionally available

 not available

camera head VSP‑H25F

Technical data
General information
  Article number 3.110.007.135
Display
  Resolution 300,000 pixels
Housing design
  Stainless steel probe with lens made of sapphire glass
Probe / camera head
  Focus manual
  12 LEDs
  DOF 25 to 100 mm
  Field of vision > 120°
  Watertightness Up to 1 m
Dimensions
  Length (packaging excluded) [mm] 49
  Diameter (packaging excluded) [mm] 25

 standard equipment

 optionally available

 not available

Video endoscopes VSP-VS

video endoscope VSP‑VS 4.5-1500

Technical data
General information
  Article number 3.110.007.153
Display
  Resolution 300,000 pixels
Interfaces
  Connection cable with multi-connector for VSP Control, length approx. 150cm
Functions and features
  Probe head bending
  Bending up / down / left / right
  Photo / video production
  Lighting brightness
Probe / camera head
  6 LEDs
  DOF 8 to 80 mm
  Field of vision > 90°
  Probe diameter 4.5 mm
  Probe length 1.5 m
  System construction Pistol grip with keypad and joystick control
  Probe construction Tungsten wire mesh with titanium alloy
Dimensions
  Length (packaging excluded) [mm] 155
  Width (packaging excluded) [mm] 110
  Height (packaging excluded) [mm] 190
Weight
  (packaging excluded) [kg] 0.62

 standard equipment

 optionally available

 not available

video endoscope VSP‑VS 6.2-1500

Technical data
General information
  Article number 3.110.007.162
Display
  Resolution 300,000 pixels
Interfaces
  Connection cable with multi-connector for VSP Control, length approx. 150cm
Functions and features
  Probe head bending
  Bending up / down / left / right
  Photo / video production
  Lighting brightness
Probe / camera head
  6 LEDs
  DOF 15 mm to ∞
  Field of vision > 120°
  Probe diameter 6.2 mm
  Probe length 1.5 m
  System construction Pistol grip with keypad and joystick control
  Probe construction Tungsten wire mesh with titanium alloy
Dimensions
  Length (packaging excluded) [mm] 155
  Width (packaging excluded) [mm] 110
  Height (packaging excluded) [mm] 190
Weight
  (packaging excluded) [kg] 0.62

 standard equipment

 optionally available

 not available

video endoscope VSP‑VS 6.2-3000

Technical data
General information
  Article number 3.110.007.163
Display
  Resolution 300,000 pixels
Interfaces
  Connection cable with multi-connector for VSP Control, length approx. 150cm
Functions and features
  Probe head bending
  Bending up / down / left / right
  Photo / video production
  Lighting brightness
Probe / camera head
  6 LEDs
  DOF 15 mm to ∞
  Field of vision > 120°
  Probe diameter 6.2 mm
  Probe length 3 m
  System construction Pistol grip with keypad and joystick control
  Probe construction Tungsten wire mesh with titanium alloy
Dimensions
  Length (packaging excluded) [mm] 155
  Width (packaging excluded) [mm] 110
  Height (packaging excluded) [mm] 190
Weight
  (packaging excluded) [kg] 0.62

 standard equipment

 optionally available

 not available

Video borescopes VSP-BS

video borescope VSP‑BS 4.5S

Technical data
General information
  Article number 3.110.007.183
Display
  Resolution 300,000 pixels
Interfaces
  Connection cable with multi-connector for VSP Control, length approx. 150cm
Functions and features
  Change-over switch for front/side view
  Photo / video production
  Lighting brightness
Probe / camera head
  Viewing direction 90°
  6 LEDs
  DOF 5 to 25 mm
  Field of vision > 60°
  Probe diameter 4.5 mm
  Probe length 25 cm
  System construction Pistol grip with keypad
  Probe construction Rigid, stainless steel 304
Dimensions
  Length (packaging excluded) [mm] 175
  Width (packaging excluded) [mm] 67
  Height (packaging excluded) [mm] 50
Weight
  (packaging excluded) [kg] 0.2

 standard equipment

 optionally available

 not available

video borescope VSP‑BS 5.0F

Technical data
General information
  Article number 3.110.007.186
Display
  Resolution 300,000 pixels
Interfaces
  Connection cable with multi-connector for VSP Control, length approx. 150cm
Functions and features
  Change-over switch for front/side view
  Photo / video production
  Lighting brightness
Probe / camera head
  Viewing direction
  6 LEDs
  DOF 5 to 25 mm
  Field of vision > 90°
  Probe diameter 5 mm
  Probe length 25 cm
  System construction Pistol grip with keypad
  Probe construction Rigid, stainless steel 304
Dimensions
  Length (packaging excluded) [mm] 175
  Width (packaging excluded) [mm] 67
  Height (packaging excluded) [mm] 50
Weight
  (packaging excluded) [kg] 0.2

 standard equipment

 optionally available

 not available

video borescope VSP‑BS 6.2F

Technical data
General information
  Article number 3.110.007.192
Display
  Resolution 1,000,000 pixels
Interfaces
  Connection cable with multi-connector for VSP Control, length approx. 150cm
Functions and features
  Change-over switch for front/side view
  Photo / video production
  Lighting brightness
Probe / camera head
  Viewing direction
  6 LEDs
  DOF 5 to 50 mm
  Field of vision > 120°
  Probe diameter 6.2 mm
  Probe length 25 cm
  System construction Pistol grip with keypad
  Probe construction Rigid, stainless steel 304
Dimensions
  Length (packaging excluded) [mm] 175
  Width (packaging excluded) [mm] 67
  Height (packaging excluded) [mm] 50
Weight
  (packaging excluded) [kg] 0.2

 standard equipment

 optionally available

 not available

video borescope VSP‑BS 6.4FS

Technical data
General information
  Article number 3.110.007.193
Display
  Resolution 300,000 pixels
Interfaces
  Connection cable with multi-connector for VSP Control, length approx. 150cm
Functions and features
  Change-over switch for front/side view
  Photo / video production
  Lighting brightness
Probe / camera head
  Viewing direction 0° / 90°
  6 LEDs
  1 LED
  DOF 15 mm to ∞ / 10 to 50 mm
  Field of vision > 90°
  Probe diameter 6.4 mm
  Probe length 25 cm
  System construction Pistol grip with keypad
  Probe construction Rigid, stainless steel 304
Dimensions
  Length (packaging excluded) [mm] 175
  Width (packaging excluded) [mm] 67
  Height (packaging excluded) [mm] 50
Weight
  (packaging excluded) [kg] 0.2

 standard equipment

 optionally available

 not available

Accessories

Loading...

Alternative products

Loading...

Seminars

Downloads

Loading...
