BO26 Videoscope
Quick endoscopic photo or video documentation
Robust videoscope probe with fixed-focus lens and water-proof camera head
The BO26 enables the visual inspection even in poorly accessible locations which for the purpose of documentation can not only be saved in form of photos but also as video sequences and can be watched via an external TV screen or transferred to a PC, if required.
The 360° image rotation function, the supplied side-view mirror attachment and the powerful quad LED illumination with variable brightness ensure significant photos and videos in every inspection environment.
Despite its versatility the BO26 is characterized by uncomplicated handling:
A multilingual on-screen menu and many clever parameters such as exposure or focusing of the target area, which are predefined or integrated directly in the device's CMOS sensor, promote a simple, intuitive operation.
Practical detail:
Auxiliary tools are included in the scope of delivery which can be used to expand the BO26's range of applications, e.g. as recovery instrument for loose parts or for taking samples.
BO26 – Special equipment features
Powerful quadruple LED illumination with illumination controller
All videoscopes in direct comparison:
To find the videoscope which exactly meets your requirements, please consult the concise overview of all videoscopes from Trotec which we're providing to you here so that you can compare them directly to each other.
Models which you do not wish to include in your comparison can be easily dismissed with only one click.
A few practical benefits:
- Light, easy-to-handle compact device with semi-rigid gooseneck probe
- Memory function to take individual photographs or record complete video sequences
- Robust videoscope probe with fixed-focus lens and water-proof camera head (IP67 type of protection)
- 3.5-inch LCD colour screen
- High-intensity quad LED illumination with dimmer
- Intuitive user navigation through multilingual on-screen menu
- Multiple image rotation function
- Automatic switch-off function
- Inclusive of side-view mirror, hook- and magnet attachment
- Different exchangeable probes optionally available as accessories
standard equipment
optionally available
not available
Shop
/de_DE/3510009126/Videoskop-BO26-66844-1507646035.jpg)
Videoskop BO26
You save: 49.00 €
358.99 €
309.99 €
incl. VAT
Show net price (VAT not included)
Technical data
| Stammdaten | |
|---|---|
| Artikelnummer | 3510009126 |

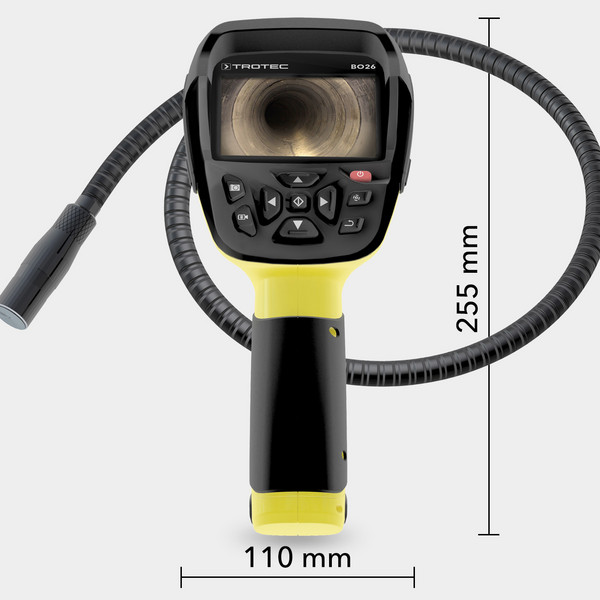

| Länge ohne Verpackung [mm] | 255 mm |
| Länge mit Verpackung [mm] | 510 mm |
| Breite ohne Verpackung [mm] | 85 mm |
| Breite mit Verpackung [mm] | 440 mm |
| Höhe ohne Verpackung [mm] | 110 mm |
| Höhe mit Verpackung [mm] | 185 mm |
| Gewicht ohne Verpackung [kg] | 0.84 kg |
| Gewicht inklusive Verpackung [kg] | 2.45 kg |
| Weitere Abmessungen | |
| Displaygröße | 3,5 Zoll LCD (320 x 240 Pixel) |
| Sonde / Kamerakopf Länge [mm] | 1000 |
| Sonde / Kamerakopf min. [mm] | 8 |
| Technische Daten | |
| Sonde / Kamerakopf Länge max. [mm] | 17 |
| Energie | |
| Anzahl Batterien pro Gerät | 1 |
| Bedingungen bei Betrieb, Lagerung und im Arbeitsumfeld | |
| Betrieb - max. Temperatur [°C] | 50 |
| Betrieb - max. rel. Luftfeuchtigkeit [%] | 80 |
| Betrieb - min. Temperatur [°C] | 0 |
| Optische Inspektion | |
| Beleuchtungsart | Videoskop | Vierfach-LED |
| Fokusbereich min. | 50 |
| SD-Karte | @ja (32 GB max.) |
| Video | MPEG-4, AVI, 3GP |
| Fokusbereich max. [mm] | 150 |
| Zoom | Videoskop | 3x |
| Lieferumfang | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 m-Sonde / Ø 17 mm | |||||||||||||||||||||||||||||||||||
| 3,7 V Li-Ion-Akku | |||||||||||||||||||||||||||||||||||
| Hakenadapter | |||||||||||||||||||||||||||||||||||
| Magnetadapter | |||||||||||||||||||||||||||||||||||
| Messgerät | |||||||||||||||||||||||||||||||||||
| Spiegeladapter | |||||||||||||||||||||||||||||||||||
| Bedienungsanleitung | |||||||||||||||||||||||||||||||||||
| Netzteil | |||||||||||||||||||||||||||||||||||
| RCA-Kabel | |||||||||||||||||||||||||||||||||||
| Transportkoffer | |||||||||||||||||||||||||||||||||||
| USB-Kabel | |||||||||||||||||||||||||||||||||||
| Funktionen und Ausstattung | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Audioaufzeichnung | ||||||||||||||||||||||
| Abschaltautomatik | ||||||||||||||||||||||
| vorbiegbare, formstabile Schwanenhalssonde | ||||||||||||||||||||||
| Helligkeitsregelung | ||||||||||||||||||||||
| Fix-Fokus Objektiv | ||||||||||||||||||||||
| Bilddrehfunktion 4 x 90 ° | ||||||||||||||||||||||
| mehrsprachiges On-Screen-Menü | ||||||||||||||||||||||
| Fotospeicher mit Datum und Uhrzeit | ||||||||||||||||||||||
| Fotoaufzeichnung | ||||||||||||||||||||||
| Aufnahme und Speicherung von Einzelbildern und kompletten Videosequenzen | ||||||||||||||||||||||
| Videoaufzeichnung | ||||||||||||||||||||||
| Zoom-Funktion (3x) | ||||||||||||||||||||||
| Gerätesteuerung | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tasten | ||||||||||||||||||||
| Schnittstellen | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.5 mm Klinke (Video/ Audio in/out) | ||||||||||||||||
| USB (Typ Mini, 5-polig) | ||||||||||||||||
| Video-out (Composite Video) | ||||||||||||||||
| externe Sensorik | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| optische Signale | ||||||||||||||
| Energieversorgung | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| extern (USB) | |||||||||||
| extern (Netzteil) | |||||||||||
| Gehäuseausführung | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Kunststoff | |||||||||
| Schutzart Sonde mit Messkopf | |
|---|---|
| IP Schutzart | IP67 |
| Schutz gegen Berührung | vollständiger Schutz gegen Berührung |
| Schutz gegen Wasser | Schutz gegen Wasser bei zeitweiligem Eintauchen (bis zu 30 Minuten, 1 m tief) |
| Schutz gegen Fremdkörper | staubdicht |
