Floor fan TVM 11 / TVM 12

A fresh breeze with a classic retro look

As of now, this elegant eyecatcher with its classic retro design chases away the stuffy warm air and provides a steadily cooling air flow. From its chrome/copper-look fan blades to the likewise copper-/chromium-plated stand bar, the floor fan TVM 11 / TVM 12 is entirely made of metal – even the motor is equipped with a copper coil. This does not only give the device a noble look but also increases its lifetime.

With its cool chromium/copper design, the TVM 11 / TVM 12 is an ideal piece of equipment for your living room and also leaves an excellent impression in the office thanks to its smooth running characteristics. The elegant wind machine provides the right breeze for photo and film shootings. By the way, thanks to the optionally available wall and ceiling holder, it may also be used in a restaurant. Above that, the retro device with its 37 watts of power and a fan blade diameter of 12 inches generates a fair amount of coolness at every workplace – ranging from a soft breeze to a strong wind. Whether for ventilation, wind generation, wind cooling or drying – the TVM 11 / TVM 12 is varied in use.

Cooling down even at escalating temperatures

The metal grid can be steplessly tilted around its horizontal axis by up to 100°.

Via the operating elements fitted at the rear of the copper-/chromium-plated metal grid, the fan's power level can be selected as desired. With its three available speed levels, the TVM 11 / TVM 12 is easily able to cope with both moderate temperatures and hot temperature peaks. Since the metal grid can be steplessly tilted around its horizontal axis by up to 100°, it makes no difference whether the cooling air flow is required at the floor level or above – it will reach its destination in any case!

Secure footing – convenient change of location

Three slip-resistant rubber feet attached to the bottom side of the likewise copper-/chromium-plated stand bar provide a stable positioning of the floor fan – so that it can easily cope with slight jostles.

The compact TVM 11 / TVM 12 is also perfectly prepared for a change of location – a carrying handle attached at the rear as well as the cable winder make a relocation of this flagship fan a simple exercise.

A few practical benefits:

  • Power of 37 watts
  • 3 speed levels
  • Inclination angle of the fan head adjustable by up to 100°
  • Metal grid with modern chrome/copper look for protection at the front and rear
  • Fan blade diameter 30 cm
  • Stable and non-slip base for secure footing to prevent tipping over
  • Long lifetime thanks to motor with copper coil
  • Smooth and silent operation
  • Integrated cable winder
  • Convenient carrying handle
  • Unique value-for-money ratio
Perspective front view of the TVM 11 / TVM 12
Perspective front view of the TVM 12
Rotation of the TVM 12
Rotation of the TVM 12

Best quality, signed and sealed

The TVM 12 is supplied in TÜV-tested quality.
The TVM 11 is supplied in TÜV-tested quality.

Benefit from the Trotec brand quality guaranteeing high value, safety and functionality. Via the registered GS mark the inspection authority TÜV SÜD certifies that, if used foreseeably and as intended, the device does not pose a risk to the health and safety of the user.

Turn your floor fan into a wall fan

Turn your floor fan into a wall fan.
Turn your floor fan into a wall fan.

The flexibly usable wall and ceiling holder is available as an optional accessory for the TVM series. This holder can be mounted conceivably easily and fast.


The details of the TVM 11 / TVM 12

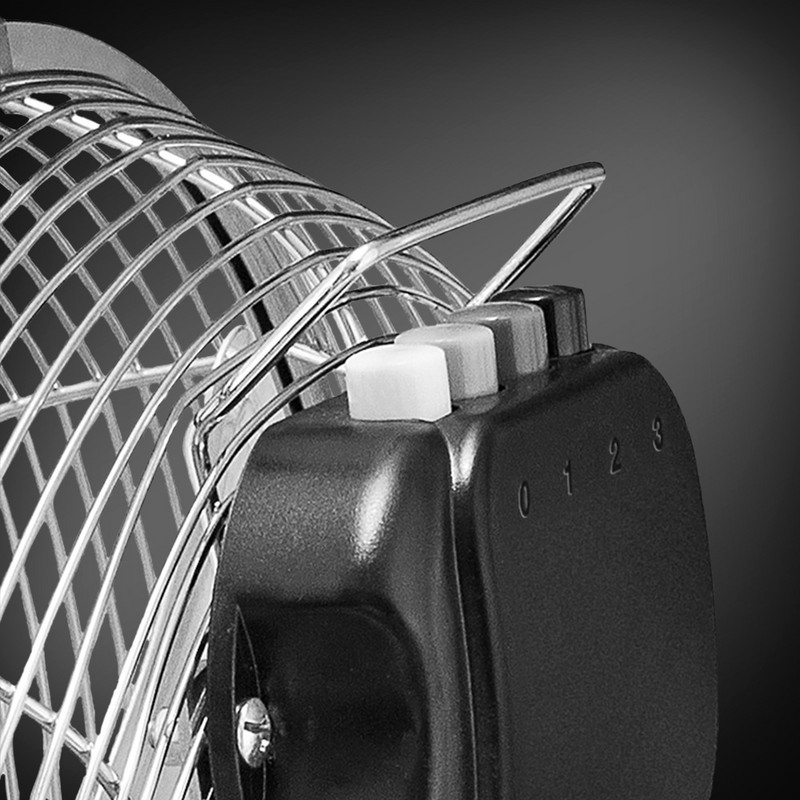

The operating panel at the rear of the device permits you to choose from three fan speeds.
Operating panel of the TVM 11 / TVM 12
The convenient cable winder ensures fast transport and easy storage when the device is not in use.
Convenient cable winder of the TVM 11 / TVM 12
The metal grid can be steplessly tilted around its horizontal axis by up to 100°.
Steplessly inclinable by up to 100°
The carrying handle attached to the rear makes transporting the TVM 11 / TVM 12 as comfortable as possible.
Carrying handle of the TVM 11 / TVM 12

Style and functionality perfectly combined

Whether in the bedroom or living room, the TVM 11 / TVM 12 is a good choice in every respect.
Floor fan TVM 11 / TVM 12, used in the bedroom
Due to its high degree of flexibility the TVM 11 / TVM 12 is also perfectly suited for the catering trade.
Floor fan TVM 11 / TVM 12, used in a bistro
Thanks to the adjustable inclination angle of the fan head, work spaces can also be cooled indirectly.
Floor fan TVM 11 / TVM 12, used in the office
With an output of 37 watts the TVM 11 / TVM 12 always leaves a good impression with every application.
Floor fan TVM 11 / TVM 12, used in the living room
BN30

Optimum room temperature control with the socket thermostat BN30

Just install it in the socket and connect it to the heating or cooling device on the socket thermostat BN30, and you can have your heating or cooling unit automatically switched on and off by the BN30 depending on the temperature. The socket thermostat available as an accessory is individually adjustable within a temperature range from 5 °C to 30 °C.

Radio thermostat BN35 with timer switch for the socket

Radio thermostat BN35

With the radio thermostat BN35 you can easily determine at which room temperature your heating or cooling unit will switch on or off using the remote control. The BN35 set consists of a radio-controlled socket and a radio thermostat. Simply plug the radio-controlled socket in between a wall outlet and your heating or cooling unit. Place the radio thermostat within approx. 20 metres in the place where the room temperature is to be measured. As an alternative, time-controlled regulation can also be carried out.

Shop

Technical data

Technical data
General information
  Article number 1.510.006.011
Air flow rate
  Level Max. [m³/h] 3,019
Fan
  stages 3
  blade diameter ["] 12
  blade diameter [cm] 30
  Number of fan blades 3
  Level high [rpm] 1,250
  Level medium [rpm] 1,100
  Level low [rpm] 950
  Foot diameter [mm] 16 (chrome)
  cowl diameter [mm] 350 (chrome)
  Motor 78x16 mm
Electrical values
  Mains connection 220 - 240 V/50 Hz
  Power input [W] 37
Electric connection
  Connection plug CEE 7/7
  Cable length [m] 1.5
  Protection class IP 20
Sound values
  Level Max. - Distance 1 m [dB(A)] 58
Functions and features
  Adjustable inclination angle [°] 100
Mobility
  Foot
  Cable winder
  Carry/transport handle(s)
Housing design
  Metal
Dimensions
  Length (packaging excluded) [mm] 185
  Width (packaging excluded) [mm] 395
  Height (packaging excluded) [mm] 375
Weight
  (packaging excluded) [kg] 2.8
