Design air cooler PAE 80 / PAE 81

4-in-1 air cooler: cools, refreshes, cleans and humidifies the air – high cooling capacity for private and commercial rooms sized up to 80 m²

Enjoy natural cooling and freshness on your skin

The conveniently equipped air coolers PAE 80 and PAE 81 with remote control provide a fresh breeze and quick cooling in the heat of summer. Not colourless but trendy is what describes the housing colours black and white, which make the PAE air coolers stand out elegantly from the crowd. The PAE 80 presents itself with perfectly shaped elegance and a silky matt black surface. Those who prefer a classic look will opt for the PAE 81 with a matt white housing colour. No matter which 4-in-1 room cooler (air cooling, ventilation, air purification and humidification) you choose – both devices guarantee an incomparably invigorating cooling effect with their icy fresh air flow. The four-stage adjustable fan cools down heated living spaces, conservatories, attic flats, sales rooms, shops, restaurants, offices etc. to pleasant room temperatures in no time at all. Furthermore, the air coolers clean and humidify the room air to spoil you with clean and optimally humidified cold air.
The highlight:
for space-saving storage, each of the two air coolers PAE 80 and PAE 81 can simply be put together, thus reducing its height from 111.5 cm to a compact 70.5 cm.

Naturally effective evaporation cooling that pays off

The energy-efficient honeycomb cooling technology of the air coolers PAE 80 / PAE 81 is something you know from nature. Once a fresh breeze blows over damp skin, you immediately feel a pleasant cooling sensation. This cooling effect is caused by evaporation. The thermal energy required for this is withdrawn from the room air, which causes the temperature to drop noticeably. All air coolers of the PAE series make use of this natural cooling principle with their cold water or ice water filling. Once the room air flows through the humid honeycomb filters, it is cooled down as thermal energy is withdrawn. Then, the air is humidified with cold or ice-cold water to be freed from annoying dust and animal hair in the air filter afterwards and to be finally emitted into the room as an icy fresh air current. No chemicals, no power-consuming cooling compressors and no disturbing exhaust air hoses are used in this process.

The hotter the summer, the more intense the cooling effect

Unlike air conditioners with cooling compressors, which sooner or later reach their performance limits at record temperatures, the cooling capacity of the PAE 80 and PAE 81 even increases as temperatures rise. The warmer the room, the faster the water evaporates inside the honeycomb filter and the more evaporation heat is withdrawn from the air. So you can always rely on the cooling capacity of the air cooler to keep up with outside temperatures.

An unbeatable team: available in two colours and performance classes

With an impressive air flow rate of 1,000 m³/h and a generous 60-litre water tank, the air coolers PAE 80 and PAE 81 are recommended for use in rooms sized up to 80 m² or 200 m³. In smaller rooms of up to 72 m² or 180 m, the air coolers PAE 60 and PAE 61 generate a fresh breeze with an air flow rate of 900 m³/h.

PRODUCT BROCHURE

Enjoy pleasant refreshment! You can also find all the relevant information about our comfort air conditioning units in the product brochure. Download the PDF directly here.

To the PDF document

Increasing the humidity level to 50 % reduces the risk of transmission of viruses

Medical specialists have evaluated research findings relating to the resistance of viruses (e.g. SARS-CoV, MERS-CoV or SARS-CoV-2 (Covid-19), influenza) to air humidity. These findings have revealed that the humidity level has a crucial impact on the infectivity of germ droplets. Dry room air with a relative humidity content of less than 40 % lets tiny droplets infected with influenza or cold viruses dry up. This preserves pathogens so that they remain infectious for a very long time. In the optimum relative humidity range between 40 and 60 % aerosols only shrink so far that the salt concentration in the aerosol core increases, causing the germs and microorganisms contained to be killed. This minimizes the risk of an infection with influenza and cold viruses.

Medical specialists emphasize that we are able to reduce the risk of infection by increasing the humidity level in buildings. In this way, increasing the humidity level to approx. 50 % by humidification will reduce the risk of transmission. Moreover, the humidified air improves the body's defence situation by more efficient cleaning of the air passages and an improved immune defence. In modern buildings with a watertight building envelope, central heating and ventilation systems, these limit values can often not be complied with in everyday life without active humidification. This is where devices with a humidification function come in to provide assistance.

Increasing the humidity level to 50 % reduces the risk of transmission of viruses

Three times improved feel-good climate: cools, refreshes and humidifies

The combined air improvement through cooling, air purification and humidification guarantees an optimally balanced indoor climate. In addition, the PAE 80 / 81 strengthens the body's own immune defence. Infectious viruses such as flu viruses and SARS-CoV-2 sometimes remain suspended in the room for several hours in dry heating air. On top of this, the nasal mucous membranes, which are actually meant to repel pathogens, are drying out. In optimally humidified air (40 to 60 percent), viruses drop to the floor faster, and the cleaning performance of the nasal mucous membrane is also improved. As a mobile humidifier, the PAE 80 / PAE 81 impresses all year round with its powerful humidification performance of 2.8 l/h to constantly keep the humidity level in a healthy range. If required, the air cooler can also be used as a fan throughout the year without the air cooling and humidification function. To either distribute the refreshing air flow in a targeted manner or over a large area in the entire room depending on the application, the cooling unit has an on-demand 120° swing mode of the inner vertical air outlet fins to provide for large-scale cold air distribution. The outer horizontal fins can be adjusted manually according to your needs.

Integrated permanent water connection for continuous commercial use

Whether for cooling or for air humidification – the integrated permanent water connection of the two air coolers PAE 80 / PAE 81 is particularly practical for continuous commercial use. The professional air coolers can be connected to the water line with a standard hose. This allows them to run continuously without having to refill the tank in between. The water supply via the hose is regulated fully automatically by a float switch included in the scope of delivery. The float switch and hose are child's play to assemble, no installer or tools are required.

Turns anything you've seen before upside down: great cooling performance, small storage space

The PAE 80 / 81 shows true greatness in the smallest of spaces during storage and transport. The upper part of the device can simply be detached with just one movement of both hands and inserted into the water tank upside down. This reduces the height of the device to 70.5 cm, making it fit into a cupboard. Equally practical are the ergonomically shaped recessed handles, which allow the air cooler to be carried comfortably from one room into another.

For extra comfort: 15-hour timer for auto switch-on and switch-off

The programmable timer, which is used to switch the air cooler on or off fully automatically after an individually preset time, is even useful in two ways. It saves you unnecessary electricity costs and you will never have to worry about whether you have actually switched the device on or off again. The operating time until auto switch-on or switch-off can be set from 1 to 15 hours in increments of 1 hour. This is particularly convenient at the workplace to cool down the office to pleasant temperatures even before the working day begins. The timer is also useful when the air cooler unfolds its soothing effect in the bedroom. The cool sea breeze of the air cooler lulls you to sleep without sweating. Afterwards, the device switches off until the next morning to save power.

Professional air cooling for industry, commerce and events

The mobile air coolers PAE 60, PAE 61, PAE 80 and PAE 81 are recommended for commercial and industrial work spaces such as:

  • Workshops of all kinds
  • Production areas / storage facilities
  • Restaurants / cafés
  • Supermarkets / shops
  • Petrol stations
  • Fitness studios
  • Garden centres
  • Hairdressing salons
  • Trade stands

Powerful air cooling for any type of event

In the event sector, perfect air cooling is indispensable. When stuffy air is depressing the mood in the middle of summer, the air coolers of the PAE series provide a fresh breeze and party atmosphere in

  • Marquees
  • Exhibition halls
  • Event rooms
  • Event halls
  • Dining rooms
  • Bars

And the mobile PAE air coolers score even twice – with their pleasantly low energy consumption and their uncomplicated handling. Rapid refreshment and natural cooling – optimally suited e.g. for weddings, company parties, trade fairs, events, congresses, galas, product presentations, festivals, sports events, supply tents and medical tents.

Advantages for professional use

Thanks to their low energy consumption and compact design, mobile PAE air coolers are a worthwhile alternative to conventional air conditioners. The evaporation coolers convince with their practical benefits:

  • Low acquisition and operating costs
  • No installation effort
  • High degree of mobility and versatility
  • Almost no maintenance required
  • Uncomplicated and space-saving storage

Trotec's air coolers of the PAE series – natural air cooling made by pros for pros!

Natural cooling principle

In contrast to air conditioners air coolers do not make use of any chemical cooling agents. The cooling effect is generated in a natural manner. Moreover, neither an exhaust air hose nor any elaborate installations are required.

A mobile air cooler works on the principle of natural evaporation cooling. As you probably know from your own experience, blowing on moist skin creates an instant feeling of refreshment as the evaporation process withdraws warmth. Air coolers work in the same way: inside the air cooler, there is a filter mat soaked with water. The warm air is directed from the rear of the device through the wet filter mat and in passing is cooled down due to the evaporation effect. The now colder air is then blown back into the room by the fan.

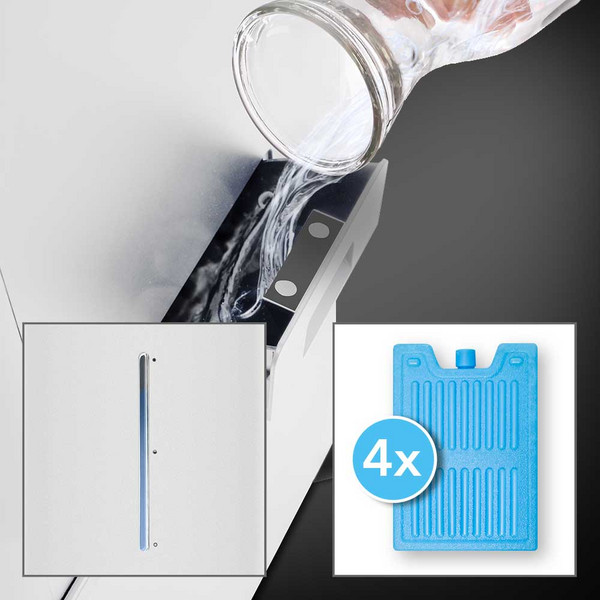

Tip for refreshment: The colder the water, the greater the cooling capacity. Placing the four ice packs included in the scope of delivery into the water tank will further increase the cooling capacity. This additional boost of freshness can also be achieved with ice cubes.

The clearly visible filling level indicator shows you at a glance whether the large and quick- and easy-to-clean 60-litre tank still contains enough water. When the water tank is empty, the water pump switches off automatically while the fan keeps running for air freshening. With an LED lighting up and an acoustic signal being emitted the device signals that the water tank needs to be refilled. There are 3 different options of filling the tank easily and conveniently.

Can be operated all year round – air cooler in the summer, humidifier in the winter

With the PAE 80 / PAE 81 you can enjoy mobile feel-good climate throughout the year. We recommend using the slim air cooler in space-saving design throughout the year rather than parking it in a storeroom when the summer ends. In the spring and late summer its 4 fan stages can provide a fresh breeze so that you can enjoy the cooling effect of the cold evaporation.

In autumn and winter the device can be furthermore ideally used as an effective humidifier to create a more pleasant room climate. Since dry heated air can irritate the respiratory tract, dry out the skin and cause red eyes. Moreover, the multiplication of viruses within the room air is reduced at a humidity level of 40 – 60 %. By using a humidifier you provide for a sufficient humidity level and in this way can improve your own well-being in sticky, overheated rooms as well as prevent colds and virus infections.

The air coolers PAE 80 and PAE 81 provide natural cooling on your skin – while improving the room climate at the same time.

SecoSan

Continuous fresh water supply to ensure a healthy air quality.

To automatically keep the water storage tank as clean as on the first day, we recommend using a SecoSan-Stick which keeps the water permanently clean, clear and free from germs or unpleasant odours. The unique feature of SecoSan is its antimicrobial surface with mobile silver ions, which inhibit bacteria and germs upon contact and thus prevent their reproduction. The entirely self-dosing SecoSan ion reservoir keeps the water demonstrably free from germs. The stick thus guarantees clean water for up to 6 months even if the water is changed or consumed daily.

Socket hygrostat BH30 with air cooler PAE 80 / PAE 81

Using air coolers as humidifiers during the wintertime

Air coolers are most effective in rooms filled with dry air. Just like humidifiers these devices operate based on the evaporation principle, i.e. they directly supply the air with moisture. This means that for process-related reasons the humidity level in the room is increased perceptibly. During the winter this increase of humidity is beneficial to the mucous membranes. As a result you might be able to avoid catching a cold that is largely caused by the dry heated air. For air coolers to be able to create the ideal or most agreeable humidity level in the room air, best use our socket hygrostat BH30. It is simply inserted between air cooler and socket where it automatically regulates the humidity.


PAE 80 and PAE 81 – special equipment features

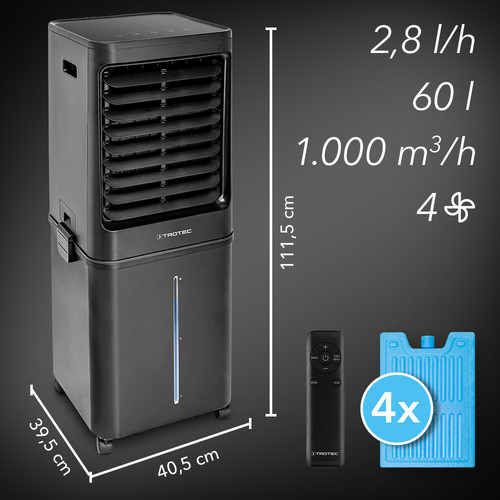

PAE 80 – dimensions
The black PAE 80 and the white PAE 81 offer an impressive evaporation performance of 2.8 litres per hour, a 60-litre water tank for more than 21 hours of cooling, an air flow rate of up to 1,000 m³/h, 4 fan stages, 4 ice packs and a remote control.

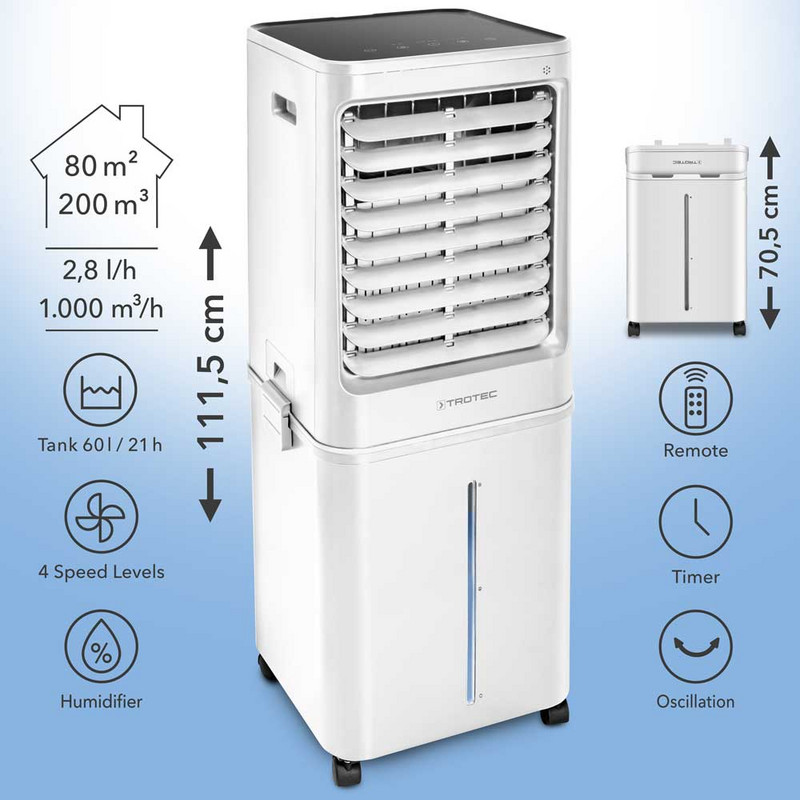

PAE 81 – dimensions
The black PAE 80 and the white PAE 81 offer an impressive evaporation performance of 2.8 litres per hour, a 60-litre water tank for more than 21 hours of cooling, an air flow rate of up to 1,000 m³/h, 4 fan stages, 4 ice packs and a remote control.

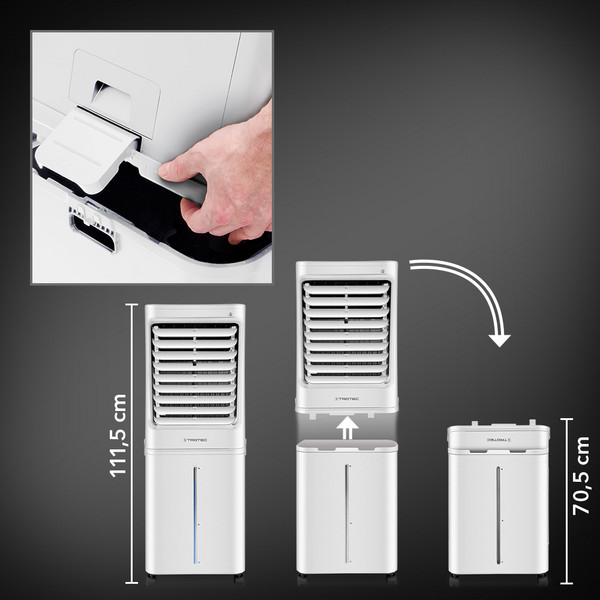

PAE 80 – for space-saving storage
For space-saving storage: the upper part of the device can simply be detached with just one movement of both hands and inserted into the water tank upside down. This convenient storing function decreases the height of the device to only 70.5 cm, making it fit into a cupboard.
PAE 81 – for space-saving storage
For space-saving storage: the upper part of the device can simply be detached with just one movement of both hands and inserted into the water tank upside down. This convenient storing function decreases the height of the device to only 70.5 cm, making it fit into a cupboard.
PAE 80 – honeycomb filter
Innovative honeycomb technology: Due to its open structure, a completely wet honeycomb filter comes with particularly favourable evaporation properties for the natural cooling of the air passing through.
PAE 81 – honeycomb filter
Innovative honeycomb technology: Due to its open structure, a completely wet honeycomb filter comes with particularly favourable evaporation properties for the natural cooling of the air passing through.
PAE 80 – functions
4-in-1: air cooling, ventilation, air humidification and air purification. The sucked-in air is cleaned by the integrated air filter and then humidified and cooled by means of the evaporation filter.
PAE 81 – functions
4-in-1: air cooling, ventilation, air humidification and air purification. The sucked-in air is cleaned by the integrated air filter and then humidified and cooled by means of the evaporation filter.

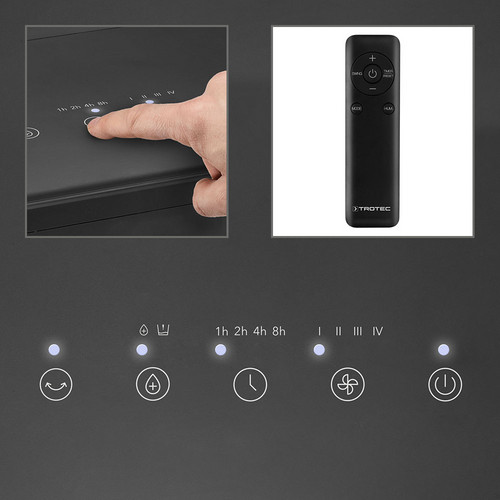

PAE 80 – control panel
The air cooler PAE 80 / PAE 81 offers convenient equipment features: air cooling, air humidification, ventilation, 4 fan stages, swing function and 15-hour timer. The settings can be carried out either on the clearly arranged touch control panel or also comfortably using the remote control.
PAE 81 – control panel
The air cooler PAE 80 / PAE 81 offers convenient equipment features: air cooling, air humidification, ventilation, 4 fan stages, swing function and 15-hour timer. The settings can be carried out either on the clearly arranged touch control panel or also comfortably using the remote control.
PAE 80 – ice packs
The cooling capacity can be additionally increased by using the four supplied ice packs. These are not placed in the large water tank, but in a compartment provided for this purpose from which the cooled water directly runs into the evaporation filter. Changing the ice packs is quick and without needing to bend over.
PAE 81 – ice packs
The cooling capacity can be additionally increased by using the four supplied ice packs. These are not placed in the large water tank, but in a compartment provided for this purpose from which the cooled water directly runs into the evaporation filter. Changing the ice packs is quick and without needing to bend over.
PAE 80 – swing function
Thanks to the automatic swing function of the inner fins, the air can oscillate evenly and can be optimally distributed in the room. The outer fins can be adjusted manually in order to align the air current as desired.
PAE 81 – swing function
Thanks to the automatic swing function of the inner fins, the air can oscillate evenly and can be optimally distributed in the room. The outer fins can be adjusted manually in order to align the air current as desired.

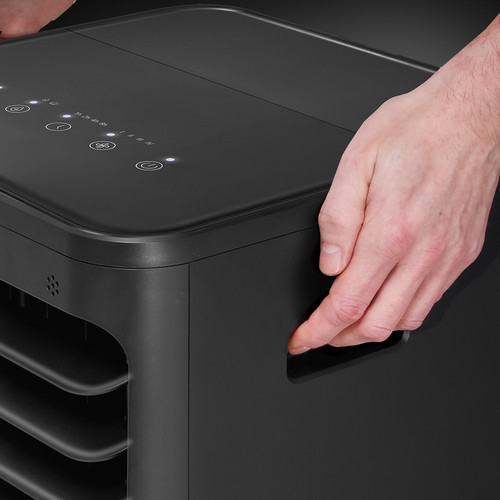

PAE 80 – easy transport
Thanks to easy-running wheels and the convenient recessed handles, the powerful PAE 80 / PAE 81 air cooler can be easily transported to the location where fast cooling is required.
PAE 81 – easy transport
Thanks to easy-running wheels and the convenient recessed handles, the powerful PAE 80 / PAE 81 air cooler can be easily transported to the location where fast cooling is required.

The two air coolers leave an excellent expression everywhere

PAE 81 – used in a café
If heat has built up in the café, the evaporation air coolers PAE 80 and PAE 81 help create a natural, pleasant feel-good climate. Whether for cooling at the counter or for large-scale refreshment of the entire room – both of the air coolers have sufficient cooling reserves for an agreeable feel-good climate.
PAE 80 – for a feel-good climate throughout the home
Enjoy natural cooling in your own four walls with the PAE 80 / PAE 81 – without unsightly exhaust air hoses at the window, let alone external units on the facade. The mobile air cooler replaces several devices at once to create a healthy indoor climate and provides natural freshness and soothing cooling with its natural evaporation cooling technology.
PAE 81 – for a feel-good climate throughout the home
Enjoy natural cooling in your own four walls with the PAE 80 / PAE 81 – without unsightly exhaust air hoses at the window, let alone external units on the facade. The mobile air cooler replaces several devices at once to create a healthy indoor climate and provides natural freshness and soothing cooling with its natural evaporation cooling technology.

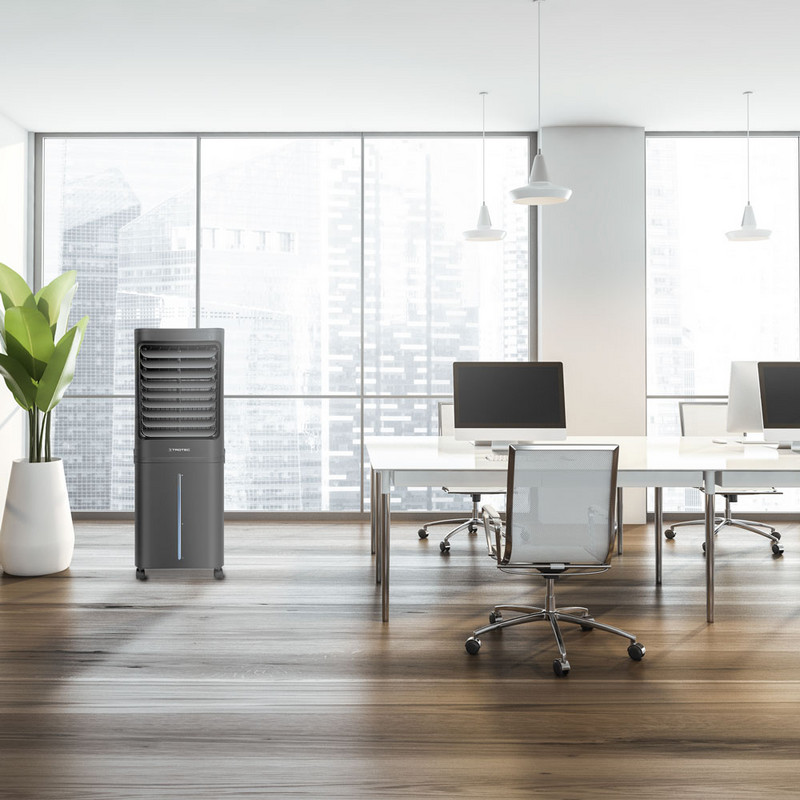

PAE 80 – used at the office
When things are heating up in the office, the evaporation air coolers PAE 80 and PAE 81 help you keep cool. The two air coolers provide rapid cooling wherever it is needed.
Technical data by comparison

All air coolers in direct comparison:

To find the air cooler which exactly meets your requirements, please consult the concise overview of all air coolers of the PAE series from Trotec, which we're providing to you here so that you can compare them directly to each other.

Models which you do not wish to include in your comparison can be easily dismissed with only one click.

Technical data by comparison

A few practical benefits:

  • 4-in-1 air cooler: air cooling, air freshening, air purification, air humidification
  • Natural air cooling with evaporation and honeycomb technology
  • Optional operation with four supplied ice packs or ice cubes to increase the cooling capacity
  • High evaporation performance of 2.8 litres per hour
  • 60-litre water tank with filling level indicator
  • Permanent water connection possible for continuous commercial operation – thus no refilling necessary
  • 3 different options of filling the water tank – conveniently and easily
  • Automatic swing function of air flaps for an even distribution in the room
  • Air filter (for animal hair, fluff and dust)
  • Easy-to-clean water tank
  • Convenient operation via remote control
  • 4 fan stages
  • 15-hour timer function for automatic switch-on and switch-off
  • Easy to transport thanks to the convenient recessed handle and wheels
  • Space-saving storage
  • Suited for year-round operation! Air cooler in the summer, humidifier in the winter

Do you need cooling capacity for slightly smaller rooms?

Discover the structurally identical air coolers PAE 60 in a modern, trendy matt black and PAE 61 in a classic, elegant matt white.

The two air coolers come equipped with a generous 40-litre water tank and provide an air flow rate of 900 m³/h, making them perfectly suited for large living or business spaces sized up to 72 m² or 180 m³.

The PAE 60 / PAE 61, too, can be stored in a space-saving manner.

Click here to find out more ...

Cool facts in place of hot air!

Others pass air coolers off as air conditioners, we provide the big picture. Before purchase make sure to get an overview of device differences, functional principles and possible applications.

Trotec, your climate expert, has compiled the most important facts in a reader-friendly overview! Direct link to the “Practical knowledge concerning air conditioning“ …

Buy

Aircooler PAE 80 show in Trotec online shop

Aircooler PAE 80

The Aircooler PAE 80 offers convenient features: air cooling, air humidification, ventilation, 4 fan levels, swing function and 15-hour timer. The settings can be made both on the clear touch control panel and conveniently using the remote control.

You save: 97.97 £

382.19 £ 284.22 £ incl. VAT Show net price (VAT not included)

buy

Aircooler PAE 81 show in Trotec online shop

Aircooler PAE 81

The Aircooler PAE 81 offers convenient features: air cooling, air humidification, ventilation, 4 fan levels, swing function and 15-hour timer. The settings can be made both on the clear touch control panel and conveniently using the remote control.

You save: 97.97 £

382.19 £ 284.22 £ incl. VAT Show net price (VAT not included)

buy

Technical data

Technical data
General information
  Article number 1.210.003.050
Air flow rate
  Level Max. [m³/h] 1,000
  Air discharge speed [m/s] 10.4
Fan
  Radial
  axial
  stages 4
Evaporation capacity
  Max. evaporation performance [l/h] 2.8
Cooling medium
  Cooling medium Air
Ambient conditions
  Min. temperature [°C] 5
  Max. temperature [°C] 43
Water tank
  Contents in [l] 60
Electrical values
  Mains connection 220 - 240 V/50 - 60 Hz
  Power input [W] 125
Electric connection
  Connection plug CEE 7/16
  Cable length [m] 2
Sound values
  Distance 1 m [dB(A)] 59
Dimensions
  Length (packaging excluded) [mm] 395
  Width (packaging excluded) [mm] 405
  Height (packaging excluded) [mm] 1,115
Weight
  (packaging excluded) [kg] 18
Equipment, features and functions
Functions and features
  Ventilation function
  Air cooling function
  Suitable for operation with freezer packs
  Cooling by evaporation with honeycomb technology
  Memory function
  Adjustable air discharge direction
  Swing function
  Water filling level indicator
  Warning light indicating an empty water tank
  Switch-off when water tank is empty
  Automatic switch-off function
  Environmental protection function
  Air freshening function
  Filter drying function
  Night mode
Timer function
  Switch-on time preselectable
  Switch-off time can be preselected
Mobility
  Plastic wheels with parking brakes
  Recessed handles

 standard equipment

 optionally available

 not available

Technical data
General information
  Article number 1.210.003.051
Air flow rate
  Level Max. [m³/h] 1,000
Fan
  Radial
  axial
  stages 4
Evaporation capacity
  Max. evaporation performance [l/h] 2.8
Cooling medium
  Cooling medium Air
Ambient conditions
  Min. temperature [°C] 5
  Max. temperature [°C] 43
Water tank
  Contents in [l] 60
Electrical values
  Mains connection 220 - 240 V/50 - 60 Hz
  Power input [W] 125
Electric connection
  Connection plug CEE 7/16
  Cable length [m] 2
Sound values
  Distance 1 m [dB(A)] 59
Dimensions
  Length (packaging excluded) [mm] 395
  Width (packaging excluded) [mm] 405
  Height (packaging excluded) [mm] 1,115
Weight
  (packaging excluded) [kg] 18
Equipment, features and functions
Functions and features
  Ventilation function
  Air cooling function
  Suitable for operation with freezer packs
  Cooling by evaporation with honeycomb technology
  Memory function
  Adjustable air discharge direction
  Swing function
  Water filling level indicator
  Warning light indicating an empty water tank
  Switch-off when water tank is empty
  Automatic switch-off function
  Environmental protection function
  Air freshening function
  Filter drying function
  Night mode
Timer function
  Switch-on time preselectable
  Switch-off time can be preselected
Mobility
  Plastic wheels with parking brakes
  Recessed handles

 standard equipment

 optionally available

 not available
