Local air conditioner PAC 2610 S

3-in-1 air conditioner: ensures an agreeable room climate by cooling, ventilating and dehumidifying the air

Enjoy the summer in the cool!

Whether at home, in the office, in hotel rooms, shops or in the gym – the cooling capacity of 2.6 kW or 9,000 Btu/h (energy efficiency category A) makes the compact PAC 2610 S air conditioner perfect for cooling rooms up to 34 m² / 85 m³. Comfort is also ensured: The mobile air conditioner PAC 2610 S offers a remote control, a 24-hour time and an automatic mode which make it possible to conveniently control the device from your seat. Besides, it allows you to switch it on and off on schedule and to provide automatic cooling depending on the ambient temperature.

Target value input: Automatically maintains the desired room temperature

In order to guarantee the room cooling quickly, just set your desired temperature value from 16°C to 31°C, and the Air conditioner will cool down the room air as you wish. The refrigerating compressor automatically switches off as soon as the preset target temperature has been reached. This ensures to maintain the preset temperature value on a permanent basis. The device will only resume cooling when the desired temperature value is exceeded. This is why the efficient air conditioner operates in a remarkably power-saving and economical way.

Fan function – with and without cooling

In addition, the air conditioner PAC 2610 S comes with an adjustable two-stage fan blower with a flow rate of up to 320 m³/h. Even with the refrigerating compressor inactivated, the device provides a fresh breeze and gentle air circulation in the room. The air current can be adjusted manually by means of the horizontal ventilation flaps in order to guarantee that the fresh breeze will always be directed to where you desire it to be. Moreover, the air filter integrated at the rear of the device filters fluff, dust and animal hair from the room air – not only beneficial for allergy sufferers!

Muggy and oppressive room air? Dehumidification will help!

In the summertime, it often is not only the heat but also an excessively high humidity level that is physically demanding. The dehumidification performance of 0.8 l per hour allows the device to actively extract humidity from oppressive and muggy air. The result is a noticeably more agreeable feel-good climate in the room. In addition, the integrated dehumidification function prevents the unhealthy formation of mould. This is why it is recommended to use the dehumidifier throughout the year, not only in summer. Due to internal condensate recycling the collection container only rarely needs to be emptied: The condensed water is reused for cooling the condenser by means of an intelligent recycling system. Consequently, the majority of water simply evaporates.

Environmentally friendly refrigerant R290

Propane (R290) as environmentally friendly refrigerant in air conditioning systems

Every year, several million tons of harmful CO2 emissions (greenhouse gas) are emitted to the atmosphere due to synthetic refrigerants. For this reason, the utilization of alternative refrigerants has become one of our key objectives. By using propane (R290) as refrigerant this air conditioner makes a valuable contribution to protecting our climate.

The natural refrigerant propane (R290) is an organic compound belonging to the group of hydrocarbons. Unlike synthetic refrigerants the environmentally friendly propane (R290) comes with neither ozone depletion potential (ODP = 0) nor a noteworthy greenhouse effect (GWP = 3).

Additional bonus for the environment: Owing to its excellent thermodynamic properties, propane (R290) is a particularly energy-efficient refrigerant thereby additionally reducing your energy costs.

Mobile and flexible device instead of drilling work and using wall plugs

Whether in bedroom, living room or work space – if you like to set up the mobile air conditioner PAC 2610 S in another room for some time, it can be conveniently moved from one location to another thanks to its smooth-running wheels. Unlike permanently installed air conditioning systems, you can use a mobile air conditioner wherever cooling is currently needed – no need for drilling, screwing and using wall plugs. All you have to do is to fix the exhaust air hose (included in the scope of delivery) in a window opening or doorway, and you can directly start cooling down the room!

In order to make sure there will be no warm air entering the cooled room through windows or doors, we offer the AirLock window and door seals as an optional accessory. This enables you to cool even more efficiently. Further will be provided to you in the info box below.

Convenience with remote control

All functions and settings of the PAC 2610 S cannot only be adjusted directly at the LED control panel at the device but also by means of the remote control – without even leaving your seat.

Convenient timer function

The practical 24-hour timer allows to switch the device on and off individually after a preset time. In this way you ensure that, for example in the office, the air conditioner will switch off automatically when office hours are over. On the other hand, you can for example set a pleasant cooling to wake you up in the morning to give you a fresh start to the day.

Tip for refreshing sleep: In order to avoid your body from going hypothermic at night time, you can preset the timer so the air conditioner will switch off automatically after a certain time. This way, you are able to fall asleep while gentle cooling is provided during warm summer nights.

Feel-good climate on 365 days per year

The 3 functions air conditioning, ventilation and dehumidification can be used independently which allows you to use the all-rounder PAC 2610 S throughout the year.

Calculation of the required cooling capacity

Quick calculation of the required cooling capacity for living and office spaces

Find out how to easily calculate the cooling capacity required for your living and office spaces.

How much power is required to cool a room? The rule of thumb: Every cubic metre of room volume requires a cooling capacity of 30 watts (1 m3 = 30 W).

Using this blanket value the required cooling capacity can be determined quickly and easily for every room size. Example: Assuming a room with 34 m² of floor space and a room height of 2.5 m.
The resulting calculation reads as follows:

Room volume calculation:
34 m² of floor space x 2.5 m ceiling height = a room volume of 85 m³

Calculation of the cooling capacity required for the room volume:
85 m³ cubature x 30 watts of cooling capacity = required cooling capacity of 2,550 watts

Conversion from watt to kilowatt:
2,550 watts = 2.55 kW

Result: In a room with 34 m2 of floor space and a height of 2.5 m you need an air conditioner with a cooling capacity of 2.6 kW – such as the PAC 2610 S.

This is only a rough calculation formula for living and office spaces with modern insulation (passive house standard), though. The required cooling capacity further depends on the room's "thermal load": For selecting an appropriate air conditioner, the factors of insolation, insulation, window dimensions, the number of persons as well as the heat sources play an equally important role.

You would like to find out more? Our info page "Practical knowledge concerning air conditioning" contains all the important information. By reading it you will quickly become an air conditioning expert.

AirLock window and door seals

ACCESSORY TIP: AirLock window seals prevent warm air from streaming back into the room you are trying to cool.

The warm air is discharged through an air conditioner's exhaust air hose and thus through a window into the open air. In order to keep the warm air from streaming right back into the room through the window gap we recommend using AirLock window or door seals.

AirLock 100 window seal

Suitable for windows with a maximum perimeter of up to 4 metres is the window seal AirLock 100. The hose can be attached to any type of window (casement, bottom-hung or skylight windows). With the Velcro® tape mounting between window and frame only takes a few steps. This ensures an optimal cooling efficiency in the room and substantially reduces the consumption costs of your air conditioner.

AirLock 1000 door and window seal

Also perfect for floor-to-ceiling windows or balcony and patio doors.

The convenient door and window seal AirLock 1000 was specifically designed for sealing floor-to-ceiling windows or balcony and patio doors – it is the only window seal on the market that has a perimeter of up to 5.6 metres. The AirLock 1000 can be used for both one- or two-hose devices. Further information on all available AirLock versions is provided here.


PAC 2610 S – special equipment features

PAC 2610 S – dimensions
With its stylish white housing the compact air conditioner blends in perfectly with any living or working environment. With a cooling capacity of 2.6 kW it ensures year-round agreeable feel-good temperatures for rooms sized up to 34 m² or 85 m³.
PAC 2610 S – energy label
The cooling capacity of air conditioner PAC 2610 S was rated with energy efficiency category A. Therefore, you can be on the safe side that your electricity costs will keep within reasonable bounds. Inside the device, the environmentally friendly refrigerant R290 is used.
PAC 2610 S – adjustable fins
To avoid a draught, the air discharge direction can be controlled by changing the position of the vertically adjustable air louvres. The air current can be regulated in 2 speed levels. In a way that is most agreeable for you.
PAC 2610 S – air filter
The integrated air filter cleans the room air from pieces of dust, fluff and animal hair. This does not only make life easier for people suffering from allergies. The filter can be easily removed to be wiped or cleaned under running water.

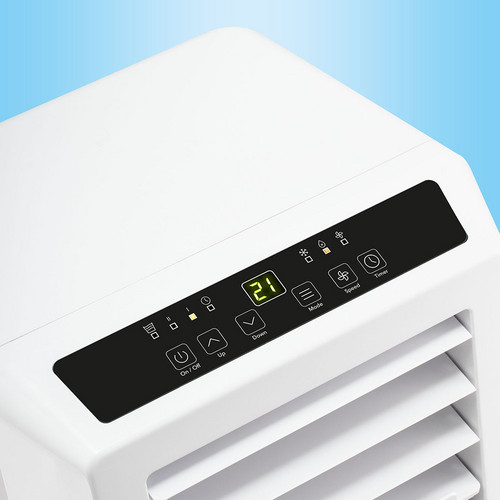

PAC 2610 S – operating panel
The neatly arranged control panel reveals all important setting options at one glance and so offers a very intuitive operation. Depending on the setting, the LED display indicates the desired target temperature or the number of hours until the pre-programmed automatic switch-on or -off.
PAC 2610 S – remote control
In addition to the control panel on the device, the air conditioner PAC 2610 S can also be operated using the infrared remote control included in the scope of delivery. There is no need to get up – all functions can also be set via remote control.
PAC 2610 S – recessed handle and castors
The device comes equipped with smooth-running wheels. Thanks to the recessed handles at the side the air conditioner can quickly and easily be moved from one room to the next, hence you can enjoy cooling or warmth wherever you want.
PAC 2610 S – condensate drain
Set to dehumidification mode the device withdraws up to 0.8 litres of moisture per hour from the room air. In case of a high humidity level or continuous cooling operation, the condensate can also be permanently drained from the residual water tank through a discharge hose.

Quick cooling for any room

Cooling in the office
Keep your head cool on hot working days: The mobile air conditioner PAC 2610 S is the optimal cooling solution on hot days for office rooms up to 34 m². The white housing optimally fits into modern office spaces.
Cooling for your flat
Whether as air conditioner, fan or dehumidifier: The high-quality, elegant and powerful PAC 2610 S can be used in your flat any day of the year.
Comfort air conditioners of the PAC series

All Comfort air conditioners of the PAC series in direct comparison:

To find the Comfort air conditioners of the PAC series which exactly meets your requirements, please consult the concise overview of all Comfort air conditioners of the PAC series from Trotec, which we're providing to you here so that you can compare them directly to each other.

Models which you do not wish to include in your comparison can be easily dismissed with only one click.

Technical data by comparison

A few practical benefits:

  • Suitable for rooms up to 34 m² / 85 m³
  • Energy efficiency category A
  • 2.6 kW cooling capacity
  • 3 operating modes: Cooling, ventilation, dehumidification
  • 2 fan stages
  • Adjustable air discharge direction
  • Target value preselection from 16 °C to 31 °C
  • Energy-saving operation by automatic switch-on/switch-off once target value preselection is reached/exceeded
  • 24-hour timer
  • Remote control + intuitive LED display
  • Removable air filter against animal hair, fluff and pieces of dust
  • Quiet operation < 53 dB(A)
  • Environmentally friendly refrigerant R290

All important features at a glance

Cooling capacity
Cooling capacity With its 2.6 kW the air conditioner provides a pleasantly chilled feel-good climate.
Dehumidification function
Dehumidification function The humidity level in the room can be reduced even without the cooling function.
2 fan settings
2 fan settings The room air is circulated even when the cooling function is switched off.
Automatic function
Automatic mode Controls the cooling level depending on the ambient and target temperature.
Remote control
Remote control Control your air conditioner conveniently using the infrared remote control.
LED display
LED display The backlit LED display provides information on all important parameters.
Self-diagnosis
Self-diagnosis Detection of faults and precise indication of the source of error.
Timer function
Timer function The air conditioner automatically switches on or off after the desired period.
Room thermostat
Room thermostat The current room temperature is determined by the integrated thermostat.
Air filter
Air filter Anti-bacterial, washable filter for air quality improvement.
Condensation recycling
Condensation recycling Reduces the energy demand and the need for frequent draining of the tank.
Castors
Castors Thanks to the low-friction castors the air conditioner can be positioned as needed.
Climate know-how from Trotec

Monobloc or split? One-hose or two-hose technology?

Don't get hosed by competitive statements, we provide the big picture. Before purchase make sure to get an overview of device differences, functional principles and possible applications.

Trotec, your climate expert, has compiled the most important facts in a reader-friendly overview! Direct link to the "Practical knowledge concerning air conditioning" ...

Tested for safety

Benefit from the Trotec brand quality guaranteeing high value, safety and functionality. Via the registered GS mark the inspection authority SGS certifies that, if used foreseeably and as intended, the device does not pose a risk to the health and safety of the user.

TFH 2000 E with turbo spin technology
TFH 2000 E for an even temperature distribution

A boost of freshness: Enjoy maximum refreshment anywhere in the room!

Do you want to additionally support the effect your air conditioner has? In order to really distribute the cool air into every last corner of the room we recommend using the powerful fan TFH 2000 E with turbo spin technology. The extremely compressed turbulent air flow gushes out of the TFH 2000 E as tornado-like air column that revolves around itself and advances deep into the room. The air current breaks through warm and cold room air zones mixing it all up. The exiting air current encounters the opposite wall or the ceiling and from there is deflected to all sides.

In a constant circulation the air returns to the rear of the fan flowing along the side walls and the ceiling. It is sucked in once more to start a new cycle. This effective turbo spin method ensures maximum circulation and mixing of the room air. The temperature difference between cold air near the ground and warm air just beneath the ceiling is substantially reduced, instead the air temperature in the entire room is noticeably evened out.

Buy

Technical data

Technical data
General information
  Article number 1.210.002.022
Type
  Monobloc
  Split
Cooling capacity
  Max. cooling capacity [kW] 2.6
  Max. cooling capacity [Btu/h] 9,000
Recommended room size
  85
  34
Air flow rate
  Level Max. [m³/h] 320
Fan
  stages 2
  Radial
  axial
Dehumidification performance
  Max. dehumidification performance [l/h] 0.8
Attainable room temperature (min.)
  depending on operating conditions [°C] 16
Cooling medium
  Cooling medium Air
Ambient conditions
  Min. temperature range [°C] 17
  Max. temperature range [°C] 35
Electrical values
  Mains connection 220 - 240 V/50 Hz
  Power input [kW] 1
  Nominal current consumption [A] 3.5
  Recommended fusing [A] 10
Electric connection
  Connection plug CEE 7/7
  Cable length [m] 1.8
Compressor
  Minimum room size [m²] 9
  Type of cooling agent R290
  Amount of refrigerant [g] 160
  GWP factor 3
  CO2 equivalent 0.00048 t
  Pressure suction side [MPa] 1
  Pressure outlet side [MPa] 2.6
Sound values
  Noise emission [dB(A)] according to EN ISO 3745:2012 65 dB(A)
  Level 1 - Distance 1 m [dB(A)] 53
Abluft
  Total length [m] 1.5
  Diameter [mm] 150
Dimensions
  Length (packaging excluded) [mm] 300
  Width (packaging excluded) [mm] 320
  Height (packaging excluded) [mm] 700
Weight
  (packaging excluded) [kg] 23.5
Equipment, features and functions
Condensate draining
  Exhaust air
  With condensate drain
  With water tank
Timer function
  Switch-on time preselectable
  Switch-off time can be preselected
Room thermostat
  Available
Room air filter
  Readily accessible
  Cleanable
Additional functions
  Dehumidification function
  Ventilation function
  Frost protection function
  Automatic fault diagnosis
  Adjustable air discharge direction
  Fan rundown function
  Swing function
Control panel
  Membrane keys
  LED display
  Microprocessor-controlled operation
  Infrared remote control
Mobility
  Carry/transport handle(s)
  Plastic wheels
  Rubber-tyred metal wheels
  Non-marking full-rubber wheels
  Swivel casters with parking brakes
  Adjustable bar handle
  Crane
  Forklift

 standard equipment

 optionally available

 not available
