Comfort dehumidifier TTK 120 E
High-performance dehumidifier with style
The TTK 120 E combines trendy design and advanced drying technology in a hardwearing housing construction.
Owing to its robust stainless steel housing the TTK 120 E can withstand even the harshest of conditions in the application environment. Consequently it is a dehumidifier that can be flexibly used for the dry keeping in living spaces, archives and storage facilities as well as for drying after water damage.
The change from one application site to another can conveniently be accomplished due to the rubber-tyred swivel casters and bar handles on both sides.
Once positioned, the start-up turns out just as simple as comfortable: As opposed to analogously controlled dehumidifiers for the preselection of minimum and maximum operation regardless of the unit, with the TTK 120 E you can directly enter the desired humidity value via the digital display. Everything else the dehumidifier deals with fully automatically.

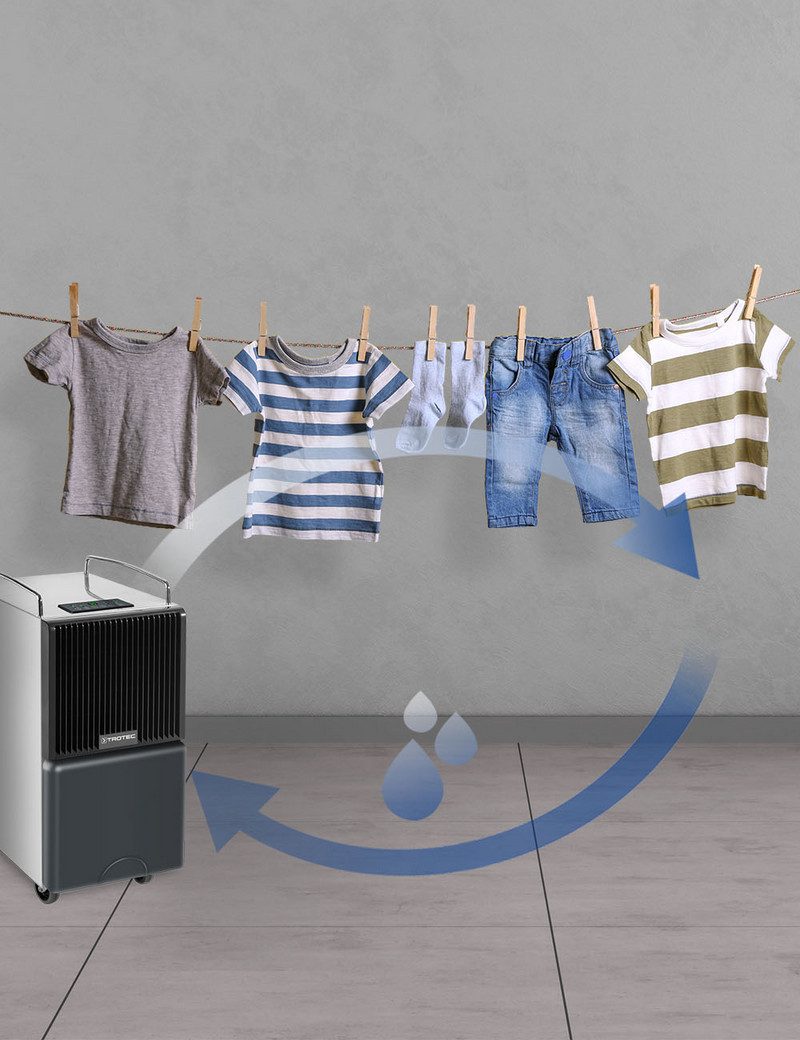

Additionally, the TTK 120 E comes with a special SuperDry function for an accelerated drying of textiles – particularly handy for the quick dehumidification of wet laundry, clothes or carpets.
For climate control the current air temperature and humidity values prevailing in the room can also be indicated on the display of the TTK 120 E during operation.

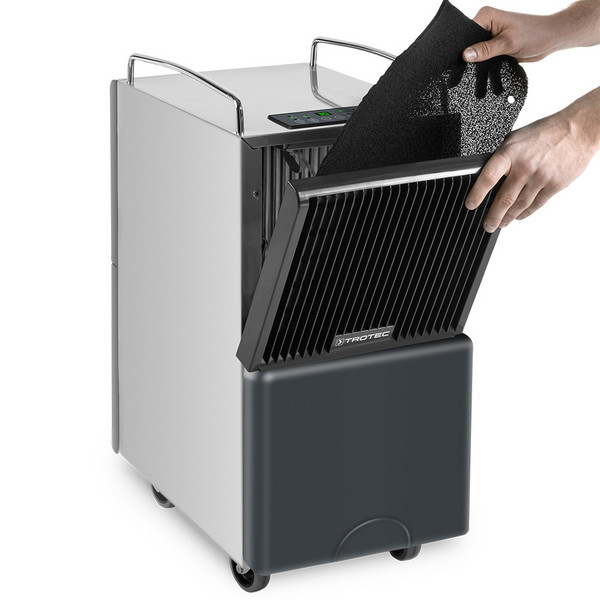

Moreover, a filling level warning light to indicate a full water tank, an overflow protection with automatic switch-off function and a reusable air filter, which is easy to clean, also belong to the standard equipment of the electronically defrostable TTK 120 E.
By the way: Its semitransparent condensation tank comes with a capacity of 10 litres, which conveniently reduces the draining frequency. But even if regular draining is not an option, the TTK 120 E still is the first choice e.g. for unattended permanent drying in holiday homes or on boats. For such cases of application a separate hose connection is integrated in the device through which the condensate can directly be discharged into a drain.

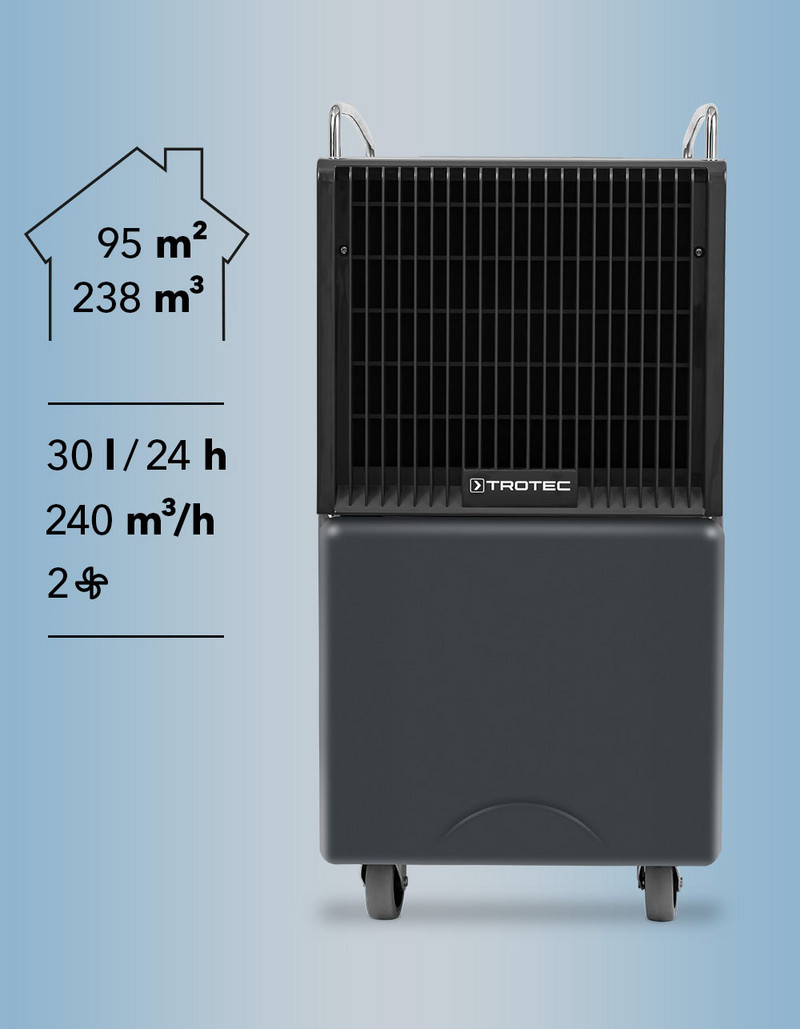

Which device is suited for which room size? For each comfort dehumidifier a specific performance chart regarding the suitability is to be found here. From it you can read the room size directly with area and volume ranges. Click to enlarge the chart in a new window...
Special features:
- SuperDry function for an accelerated drying of textiles
- Automatic hygrostat-controlled dehumidification operation with real-value humidity selection
- Easy-care material mix with distinctive looks
- Digital display of current humidity and temperature values
Shop
Technical data
| Technical data | ||
|---|---|---|
| General information | ||
| Article number | 1.120.000.119 | |
| Dehumidification performance | ||
| At 30 °C / 80 % RH [l/24h] | 28 | |
| Max. [l/24h] | 30 | |
| Air flow rate | ||
| Level Max. [m³/h] | 340 | |
| Recommended room size construction drying | ||
| m³ | 120 | |
| m² | 48 | |
| Recommended room size dry keeping | ||
| m³ | 238 | |
| m² | 95 | |
| Ambient conditions | ||
| Min. temperature range [°C] | 9 | |
| Max. temperature range [°C] | 35 | |
| Min. humidity range [% RH] | 40 | |
| Max. humidity range [% RH] | 100 | |
| Electrical values | ||
| Mains connection | 230 V/50 Hz | |
| Nominal current consumption [A] | 2.6 | |
| Power input [kW] | 0.6 | |
| Recommended fusing [A] | 10 | |
| Required current starting phase [A] | ||
| Electric connection | ||
| Connection plug | CEE 7/7 | |
| Cable length [m] | 2 | |
| Compressor | ||
| Reciprocating piston compressor | ||
| Rotary piston compressor | ||
| Type of cooling agent | R-134a | |
| Amount of refrigerant [g] | 260 | |
| GWP factor | 1,430 | |
| CO2 equivalent | 0.372 t | |
| Pressure suction side [MPa] | 0.58 | |
| Pressure outlet side [MPa] | 1.81 | |
| Water tank | ||
| Contents in [l] | 10 | |
| Sound values | ||
| Distance 1 m [dB(A)] | 47 | |
| Dimensions | ||
| Length (packaging excluded) [mm] | 310 | |
| Width (packaging excluded) [mm] | 435 | |
| Height (packaging excluded) [mm] | 650 | |
| Weight | ||
| (packaging excluded) [kg] | 22.3 | |
| Equipment, features and functions | ||
|---|---|---|
| Automatic defrost system | ||
| Electronic | ||
| Hot gas | ||
| Automatic dehumidification | ||
| Non-stop dehumidification | ||
| Electronic hygrostat | ||
| Hygrostat-controlled | ||
| Analogue hygrostat | ||
| Program-controlled | ||
| Fan | ||
| axial | ||
| Radial | ||
| stages | 1 | |
| Condensate tank monitoring | ||
| Container available | ||
| Shut-off when full | ||
| Indicator container full | ||
| Room air filter | ||
| Cleanable | ||
| Readily accessible | ||
| Ionizer selectable | ||
| Timer function | ||
| Switch-off time can be preselected | ||
| Switch-on time preselectable | ||
| Functions and features | ||
| Display of the relative humidity level | ||
| Room temperature display | ||
| Laundry drying function | ||
| Selectable ionisation | ||
| Internal drying function | ||
| Child lock | ||
| Noiseless night operation in whisper mode | ||
| Comfort button | ||
| Operating hours counter | ||
| Operating hours counter | ||
| Power meter | ||
| Mobility | ||
| Carry/transport handle(s) | ||
| Rubber-tyred metal wheels | ||
| Plastic wheels | ||
| Non-marking full-rubber wheels | ||
| Swivel casters with parking brakes | ||
| Adjustable bar handle | ||
| Condensate drain | ||
| Hose connection possible | ||
| Condensate pump | ||
| Hose included in the scope of delivery | ||
| Recommended hose size [mm] | 16 | |
| Control panel | ||
| Protective bar | ||
| Digital display | ||
| Shelf life | ||
| stackable | ||
| Adjustable air discharge direction | ||
| manual | ||
| Swing function | ||
| Housing design | ||
| Metal plastic composite housing | ||
| Plastics | ||
| Steel coated | ||
| Stainless steel | ||
| Aluminium | ||
standard equipment
optionally available
not available
