Infrared radiant heater IR 2000 S

Cosy warmth – carefully targeted, consistent and direct

Consistently soothing warmth. And carefully targeted precisely to the point without the need for time-consuming preheating. The infrared radiant heater IR 2000 S produces warmth following the natural principle of the sun. Equipped with three modern quartz heating rods, it provides the immediate surroundings with cosy warmth from the very first moment and owing to the adjustable inclination angle the generated heat can be aimed precisely.

In addition to "Off" , the radiator offers three heating levels (650 W, 1,300 W and 2,000 W) to meet all kinds of individual requirements. You can easily change these heating levels by means of the practical pull switch.

With the licence for allergy sufferers

Like all infrared radiant heaters of the IR-S series, the IR 2000 S, too, converts a great deal of the energy input into direct heat, which in comparison to a hot air blower increases the performance of the quartz radiator in terms of energy-efficiency. Another standard feature of the series than the clean, silent and odourless heat supply is its suitability for allergy sufferers – seeing as the device gets by without fan, no dust is raised.

The IR 2000 S can quickly and easily be attached to a wall or telescopic tripod – for start-up the connection cable of the device is simply plugged into the nearest socket. As per protection class IP34, the appealing exterior protects the device against water jets and splashes.

A few practical benefits:

  • Infrared heat without preheating
  • Even and targeted heat distribution
  • Clean, non-condensing, odourless and free from noise
  • No dust circulation, thus suitable for allergy sufferers
  • 3 heating levels, up to 2,000 watts
  • 3 quartz elements
  • Splash- and water-jet-proof, protection class IP34
  • Adjustable inclination angle with a wide effective range
  • Suitable for wall mounting
  • Integrated suspension device
  • Energy-efficient
Tested for safety

Benefit from the Trotec brand quality guaranteeing high value, safety and functionality. Via the registered GS mark the inspection authority SGS certifies that, if used foreseeably and as intended, the device does not pose a risk to the health and safety of the user.

The IR 2000 S impresses with practice-oriented details:

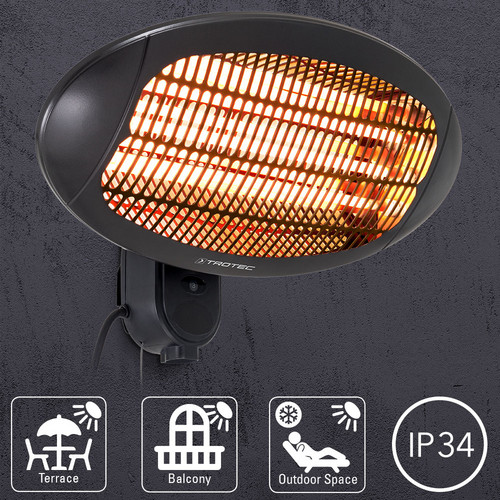

With a width of 500 mm and up to 2,000 watts of power the IR 2000 S can provide infrared heat for many possible applications.
IR 2000 S, infrared heat produced by up to 2,000 W

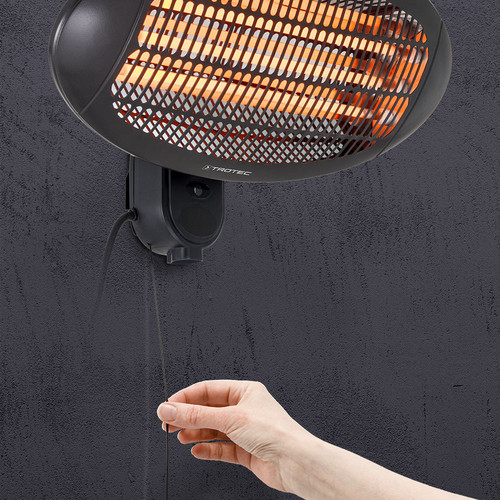

The rip cord can be used to single-handedly switch the infrared radiant heater on or off without much effort.
IR 2000 S, simple single-handed operation

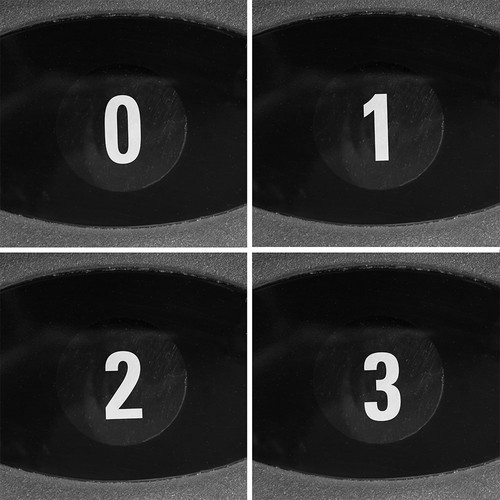

Three heating levels can be selected for the operation of the IR 2000 S – depending on how much heat radiation is desired.
IR 2000 S, three selectable heating levels
The steplessly adjustable radiator head can be tilted to an inclination angle of 45°.
IR 2000 S, inclination angle adjustable to up to 45°

Overview of the maximum heating range to be covered by an infrared radiant heater of 2,000 W:

Field of application Recommended heating capacity per m²
Area that can be covered by an infrared heater

with 2,000 W
Outside Sheltered:
approx. 150 W/m²
approx. 13 m²
No shelter:
approx. 250 W/m²
approx. 8 m²
Heating range of a 2,000 W infrared radiant heater

Heating range of a 2,000 W infrared radiant heater

You can proceed as follows to calculate the heating capacity (in watts) required for your room size:

Formula: m² x W/m² = W
room size (m²) x recommended heating capacity per square metre (W/m²) = required heating capacity of the infrared radiator (W)

Sample calculation:
For a well insulated room sized 20 m² we recommend the following heating capacity: 20 m² x 100 W/m² = 2,000 W

Cosy warmth wherever it is needed ...

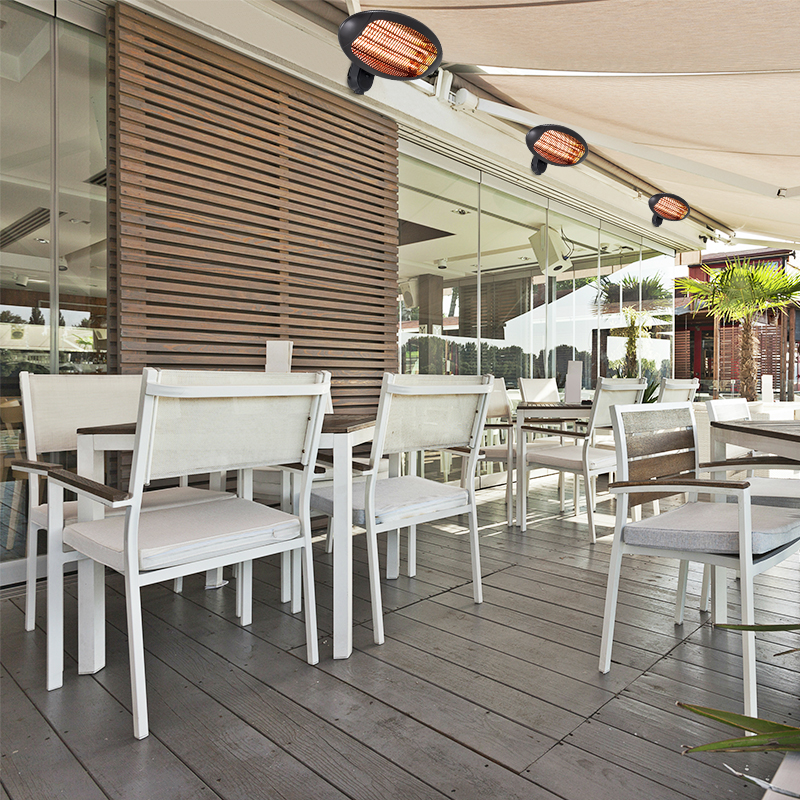

Entertain and cater for your guests on the terrace all year round – even if the day starts out chilly.
IR 2000 S, application in the catering trade
Do not let cold evenings put a stop to a cosy get-together on your terrace or balcony!
IR 2000 S, application on terraces
Despite all efforts construction sites are often cold and draughty. Good to have a heat source at hand that can be flexibly positioned.
IR 2000 S, application on indoor construction sites
Spending longer periods in market stalls or booths you can easily become frozen to the marrow. Why not use an IR 2000 S as countermeasure?
IR 2000 S, application at a market stall

BN30

Optimum room temperature control with the socket thermostat BN30

Just install it in the socket and connect it to the heating or cooling device on the socket thermostat BN30, and you can have your heating or cooling unit automatically switched on and off by the BN30 depending on the temperature. The socket thermostat available as an accessory is individually adjustable within a temperature range from 5 °C to 30 °C.

Radio thermostat BN35 with timer switch for the socket

Radio thermostat BN35

With the radio thermostat BN35 you can easily determine at which room temperature your heating or cooling unit will switch on or off using the remote control. The BN35 set consists of a radio-controlled socket and a radio thermostat. Simply plug the radio-controlled socket in between a wall outlet and your heating or cooling unit. Place the radio thermostat within approx. 20 metres in the place where the room temperature is to be measured. As an alternative, time-controlled regulation can also be carried out.

Buy

Technical data

Technical data
General information
  Article number 1.410.003.110
Heating capacity
  in [W] 2,000
  Level 1 [kW] 0.65
  Level 2 [kW] 1.3
  Level 3 [kW] 2
  Level Max. [kW] 2
  IP type of protection IP34
Electrical values
  Mains connection 220 - 240 V/50 Hz
  Nominal current consumption [A] 8.7
Electric connection
  Connection plug CEE 7/7
  Cable length [m] 1.8
Housing design
  Aluminium
Dimensions
  Length (packaging excluded) [mm] 160
  Width (packaging excluded) [mm] 500
  Height (packaging excluded) [mm] 370
Weight
  (packaging excluded) [kg] 1.5
Equipment, features and functions
Functions and features
  Infrared remote control
  Inclination [°] 45
  Operating control lamp
  Timer function
  Wall mounting
  Ceiling mounting
  Tripod
Certificates
  CE declaration
  TÜV

 standard equipment

 optionally available

 not available
