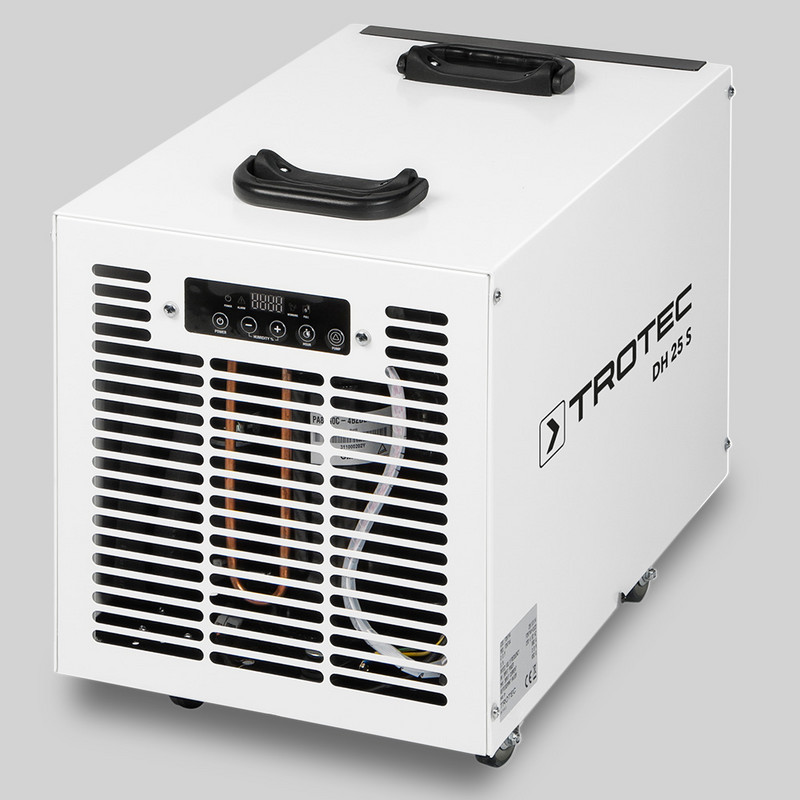

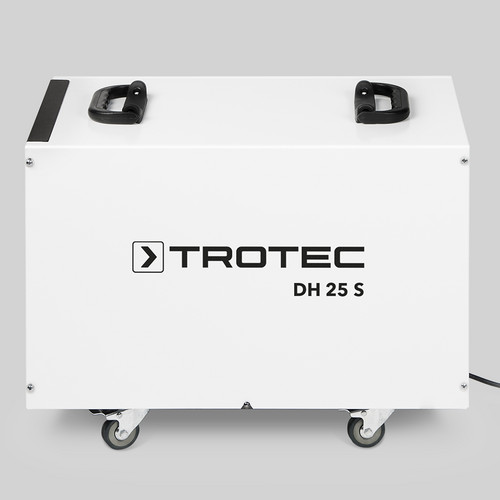

Industrial condenser dryer DH 25 S

The compact industrial dehumidifier DH 25 S dries up to 40 liters per day

Owing to its compact construction and stable swivel casters with wheel lock this powerful industrial condenser dryer can be used especially flexibly for various dry keeping tasks in storage and production facilities.

The DH 25 S dehumidifies up to 40 litres per day and is a very economical solution for ensuring dry ambient air for sensitive stored goods or avoiding harmful moisture-related consequences for products, machines and building structure during industrial processes.

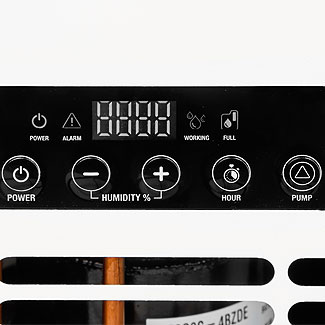

Humidity control can optionally be effected moisture-dependent via target value specification at the internal hygrostat or in moisture-independent continuous operation.

Even in colder environments mould and corrosion stand no chance with this industrial dryer, for the DH 25 S comes equipped with a reliable hot gas automatic defrost system, which ensures efficient dry keeping operation even at low temperatures.

A permanent air dehumidification with the DH 25 S offers the following advantages:

  • Prevention of damages caused by mould as well as corrosion
  • Prevention of condensation formation
  • Protection against damages on building structure, production facilities and inventory caused by moisture
  • Increased reliability of electrical equipment
  • Dehumidification for process optimization in the industry
  • Protection and preservation of valuable goods
  • Reduction of unpleasant odours
  • Reduced heating costs due to optimized humidity
  • Noiseless and effective dry keeping

A few practical benefits:

  • Reliable dryer with high
    dehumidification capacity
  • Particularly economical solution for typical dry keeping in production facilities and storerooms
  • Aluminium tube evaporator for an effective dehumidification performance even at a low humidity level
  • Timer function
  • Optimum value-for-money ratio
Industrial condenser dryer DH 25 S
Industrial condenser dryer DH 25 S
Industrial condenser dryer DH 25 S
Industrial condenser dryer DH 25 S
Industrial condenser dryer DH 25 S

Shop

Technical data

Technical data
General information
  Article number 1.125.000.204
Dehumidification performance
  At 20 °C / 60 % RH [l/24h] 16
  At 30 °C / 80 % RH [l/24h] 40
Air flow rate
  Level Max. [m³/h] 450
Operating range
  Min. temperature [°C] 1
  Max. temperature [°C] 38
  Min. humidity [% RH] 35
  Max. humidity [% RH] 98
Electrical values
  Mains connection 230 V/50 Hz
  Nominal current consumption [A] 3.1
  Power input [kW] 0.81
  Required current starting phase [A] 14
  Recommended fusing [A] 16
Electric connection
  Connection plug CEE 7/7
  Cable length [m] 7
Compressor
  Type of cooling agent R-410a
  Amount of refrigerant [g] 580
  GWP factor 2,088
  CO2 equivalent [t] 1.211
Sound values
  Distance 3 m [dB(A)] 51

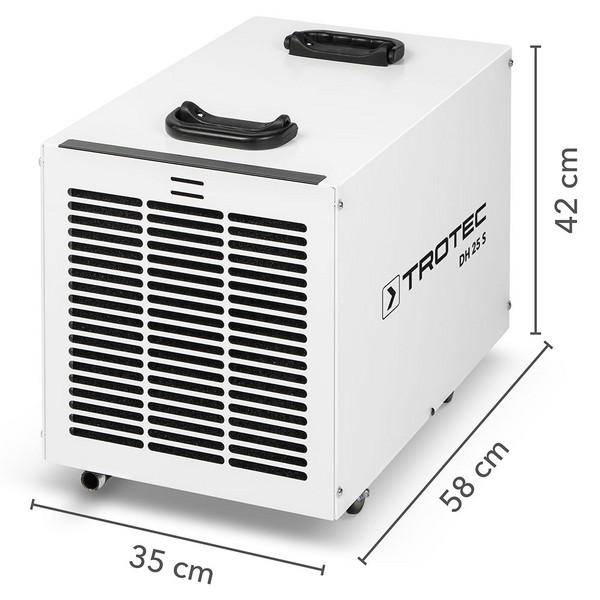

Dimensions
  Length (packaging excluded) [mm] 580
  Width (packaging excluded) [mm] 343
  Height (packaging excluded) [mm] 457
Weight
  (packaging excluded) [kg] 34
Equipment, features and functions
Mobility
  Rubber-tyred metal wheels
  Carry/transport handle(s)
  Forklift
  Plastic wheels
  Non-marking full-rubber wheels
  Swivel casters with parking brakes
  Adjustable bar handle
Automatic dehumidification
  Non-stop dehumidification
  Electronic hygrostat
  Hygrostat-controlled
  Analogue hygrostat
  Program-controlled
Automatic defrost system
  Electronic
  Hot gas
Hygrostat
  Internal
Condensate drain
  Hose connection possible
  Hose included in the scope of delivery
  Condensate pump
  Recommended hose size [mm]
Condensate pump
  Pump height [m]
  Max. conveying capacity [l/h]
  Integrated condensate pump
  Residual water draining function

 standard equipment

 optionally available

 not available
